292 Subrack Servicing TB8100 Service Manual
© Tait Electronics Limited September 2006

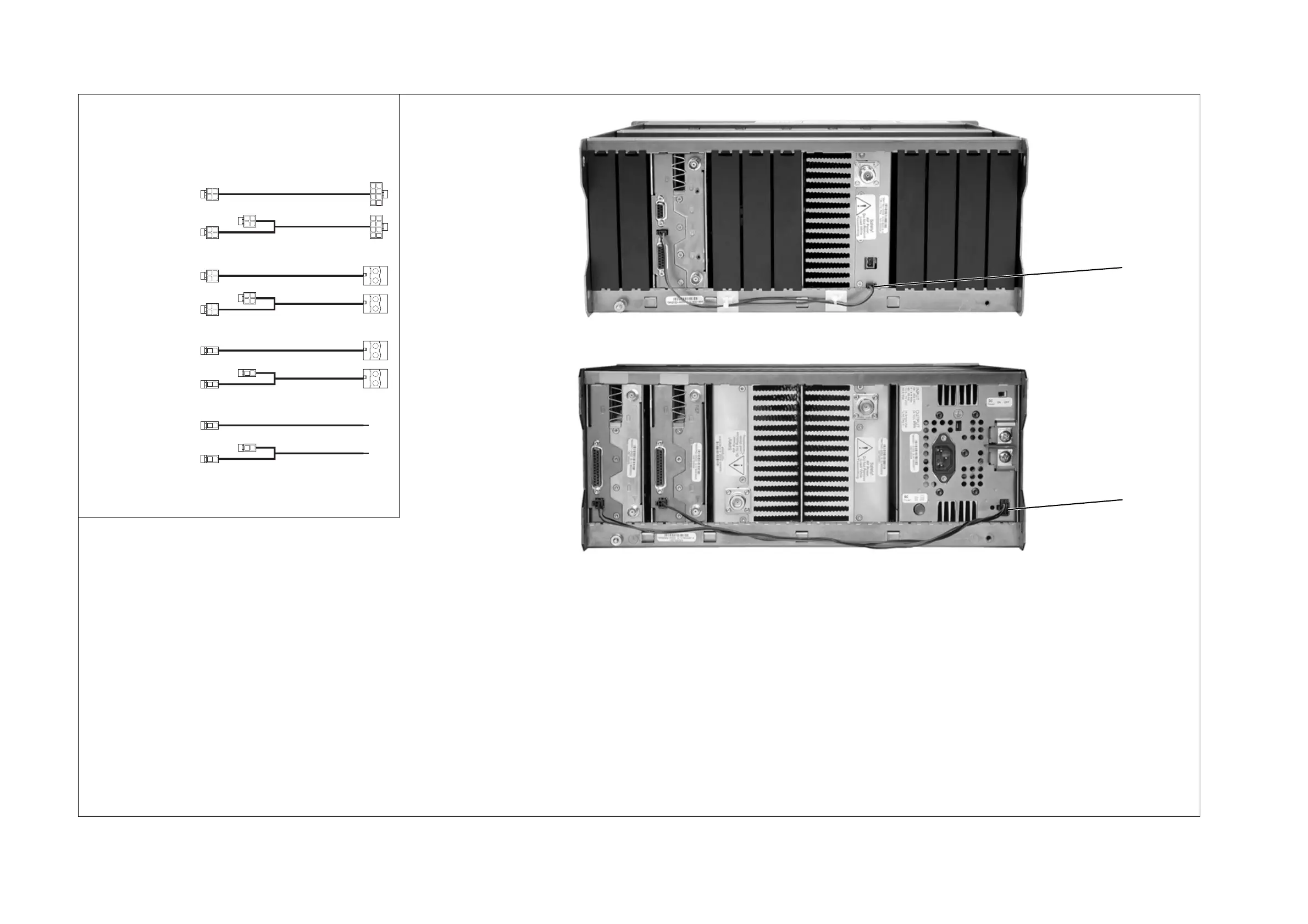

Figure 19.4 Cable identification - sheet 2
Description IPN
b
5/50W 12V PA Power Saving control cable 219-02971-XX
c
DC power cable - PMU aux. output to reciter,
as illustrated below:
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
Note:
The PMU connector used in the DC power cables was
changed in August 2004 to match the change of
connector in the PMU. The old cables are still available
under Tait part numbers 219-02895-00 (single) and
219-02896-00 (double). Contact your nearest Tait
Dealer or Customer Service Organisation for details on
the full range of wiring kits available.
c
b
dual 5/50W base station - rear view
single 5/50W 12V PA base station -
rear view
219-02895-00
219-02896-00
as sold up to
August 2004
as sold up from August
2004 onwards
TBAA04-02
(was TBA2241)
TBAA04-03
(was TBA2242)
TBAA04-04
(was TBA2243)
TBAA04-05
(was TBA2244)
TBAA04-06
(was TBA2245)
TBAA04-07
(was TBA2246)
2-way reciter connectors are for use with the TaitNet RS-232
system interface board, and all other boards made after
March 2005
