TB8100 Service Manual Power Amplifier Spare Parts 199

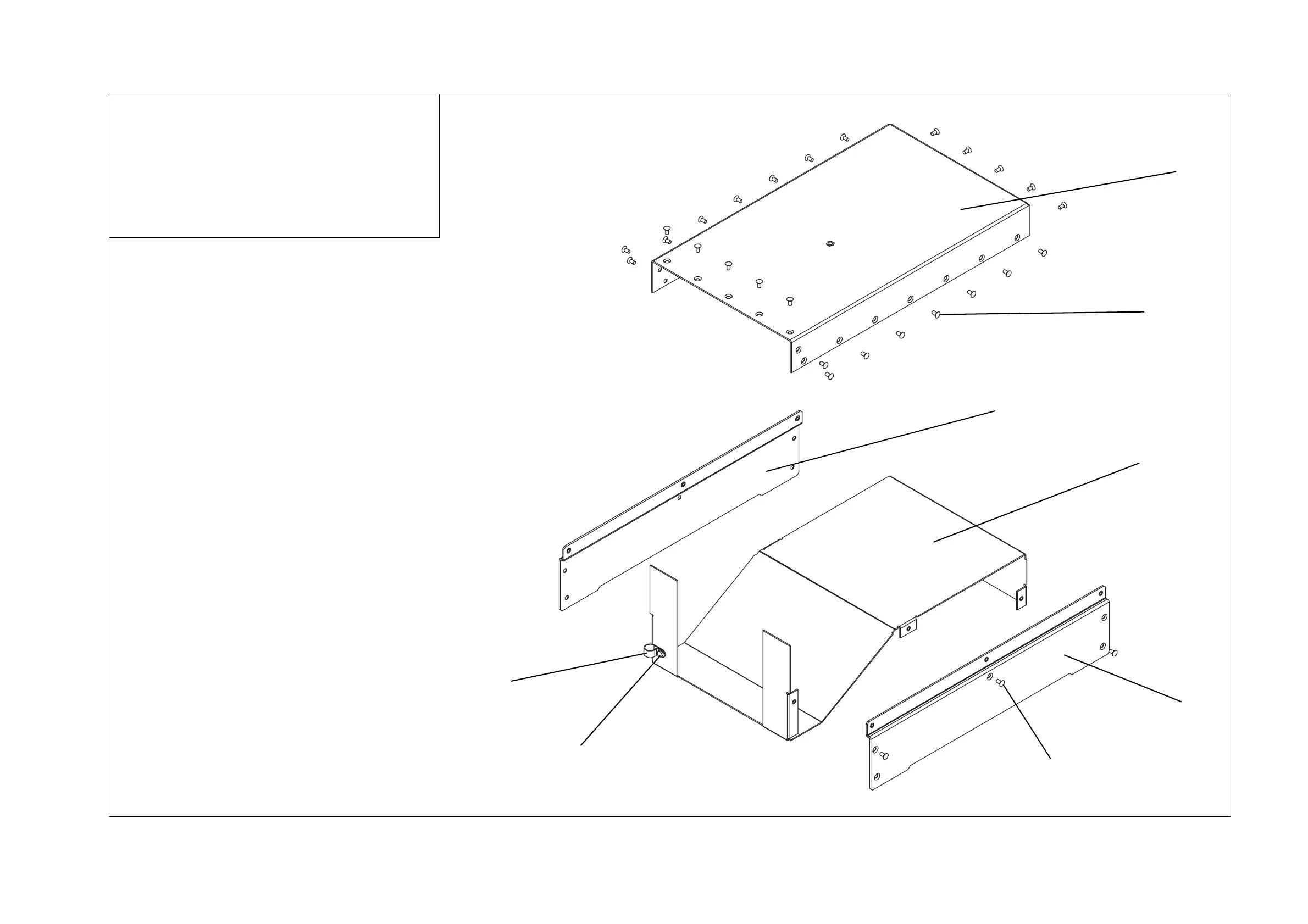

Figure 11.3 PA mechanical assembly - covers and airflow duct

Description IPN

b cover - 5/50W 28V

cover - 5/50W 12V

cover - 100W

303-03070-XX

303-20081-XX

303-03071-XX

c P-clip 303-50107-XX

d airflow duct centre panel 316-06818-XX

e airflow duct side panel 316-06819-XX

f M3x6mm countersunk Torx screw 345-40460-XX

g M3x10mm pan head Torx Taptite screw 349-02066-XX

Note:

The characters XX in an IPN (Tait Internal Part Number)

stand for the issue number of the part. Only the latest

issue of each part will normally be available for ordering as

spare or replacement parts.
