198 Power Amplifier Spare Parts TB8100 Service Manual

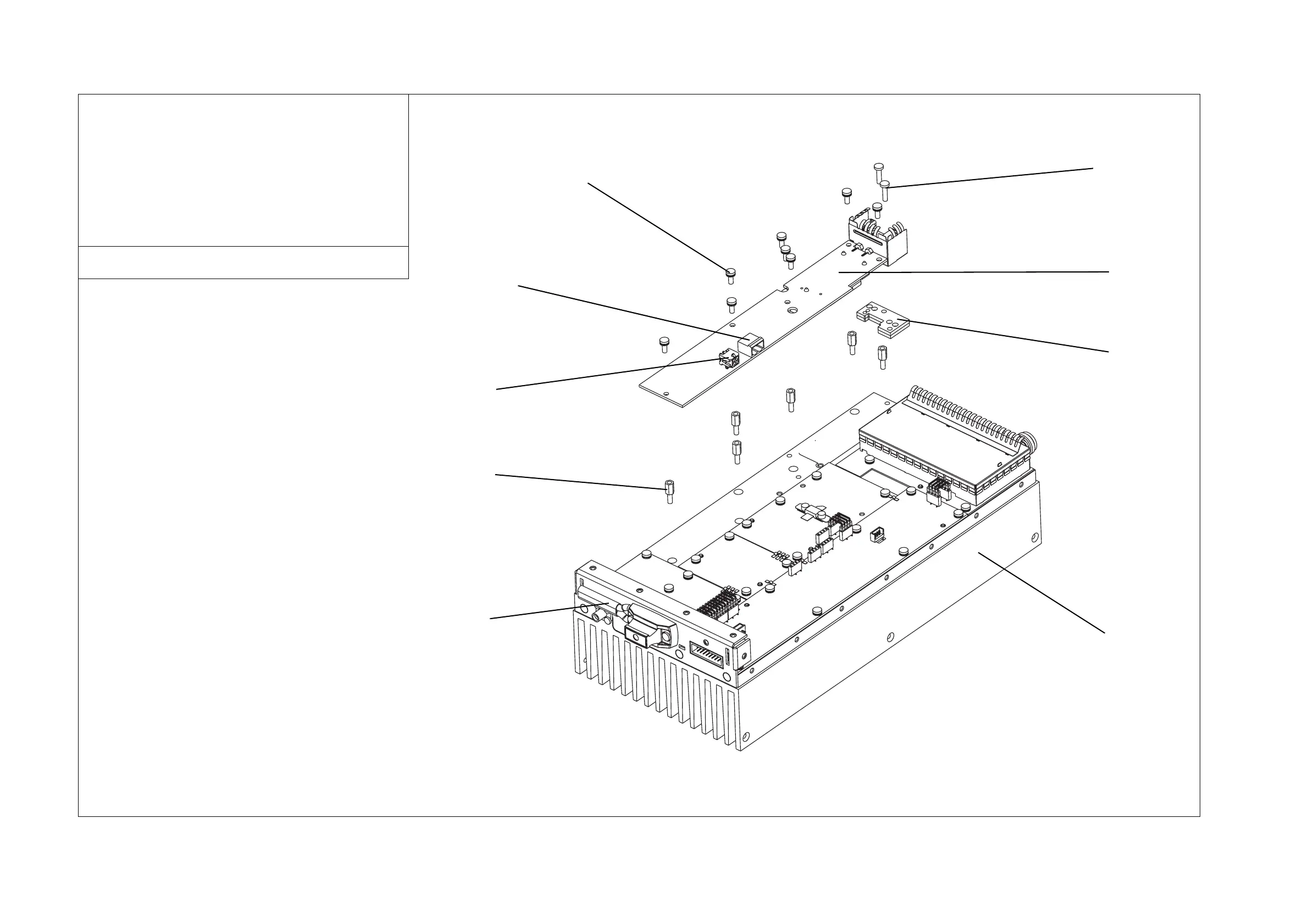

Figure 11.2 PA mechanical assembly - 12V PAs

Description IPN

b 28VDC output cable (not shown) 219-02963-XX

c 12VDC output cable to reciter 219-02964-XX

d 12VDC output cable (not shown) 219-02965-XX

e heatsink 308-10010-XX

f insulator board 309-02012-XX

g M3x8mm spacer 316-87073-XX

h M3x8mm pan head Torx screw + spring/flat washers 345-40470-XX

i M3x12mm pan head Torx screw 349-02065-XX

boost regulator board

Note:

The characters XX in an IPN (Tait Internal Part Number) stand

for the issue number of the part. Only the latest issue of

each part will normally be available for ordering as spare or

replacement parts.

Note:

This drawing shows a 50W 12V PA. The parts shown in this

drawing are unique to the 12V PAs. All other parts are the

same as the equivalent 28V PAs and are shown in

Figure 11.1.
