Figure 19.3 Cable identification - sheet 1
Description IPN
b
RF coaxial cable - reciter to 5/50W PA (long) 219-02859-XX
c
RF coaxial cable - reciter to 5/50W PA (short) 219-02862-XX
d
RF coaxial cable - reciter to 100W PA
(replaced by 219-02859-XX in July 2006)
219-02864-XX
e
system control bus ribbon cable - reciter to subrack
interconnect board
219-02858-XX
f
system control bus ribbon cable - 5/50W PA to
subrack interconnect board
219-02861-XX
g
system control bus ribbon cable - PMU and 5/50W
PA to subrack interconnect board
219-02857-XX
h
system control bus ribbon cable - PMU and 100W
PA to subrack interconnect board
(replaced by 219-02857-XX in July 2006)
219-02863-XX
i
system control bus ribbon cable - 5/50W 12V PA
(PA1) to subrack interconnect board
219-02983-XX
j
DC power cable - PMU to single reciter
(replaced by 219-02860-XX in July 2006)
219-02856-XX
1)
DC power cable - PMU to dual reciters 219-02860-XX
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
b
c
d
e
f
e
g
h
j
1)

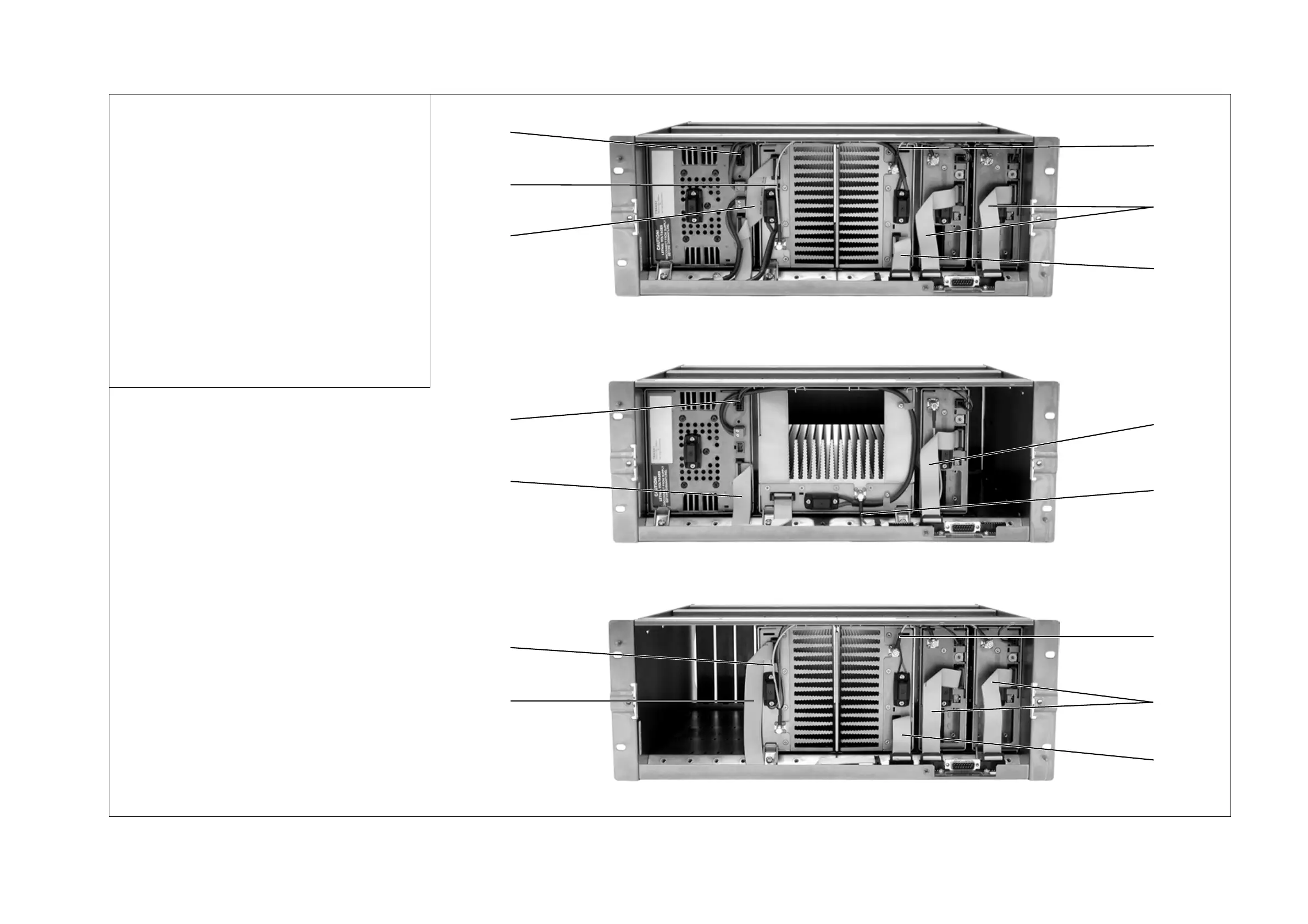

dual 5/50W base station - front view
single 100W base station - front view
dual 5/50W 12V PA base station - front view
i
b
c
e
f
