TB8100 Service Manual Control Panel Servicing 285
© Tait Electronics Limited September 2006

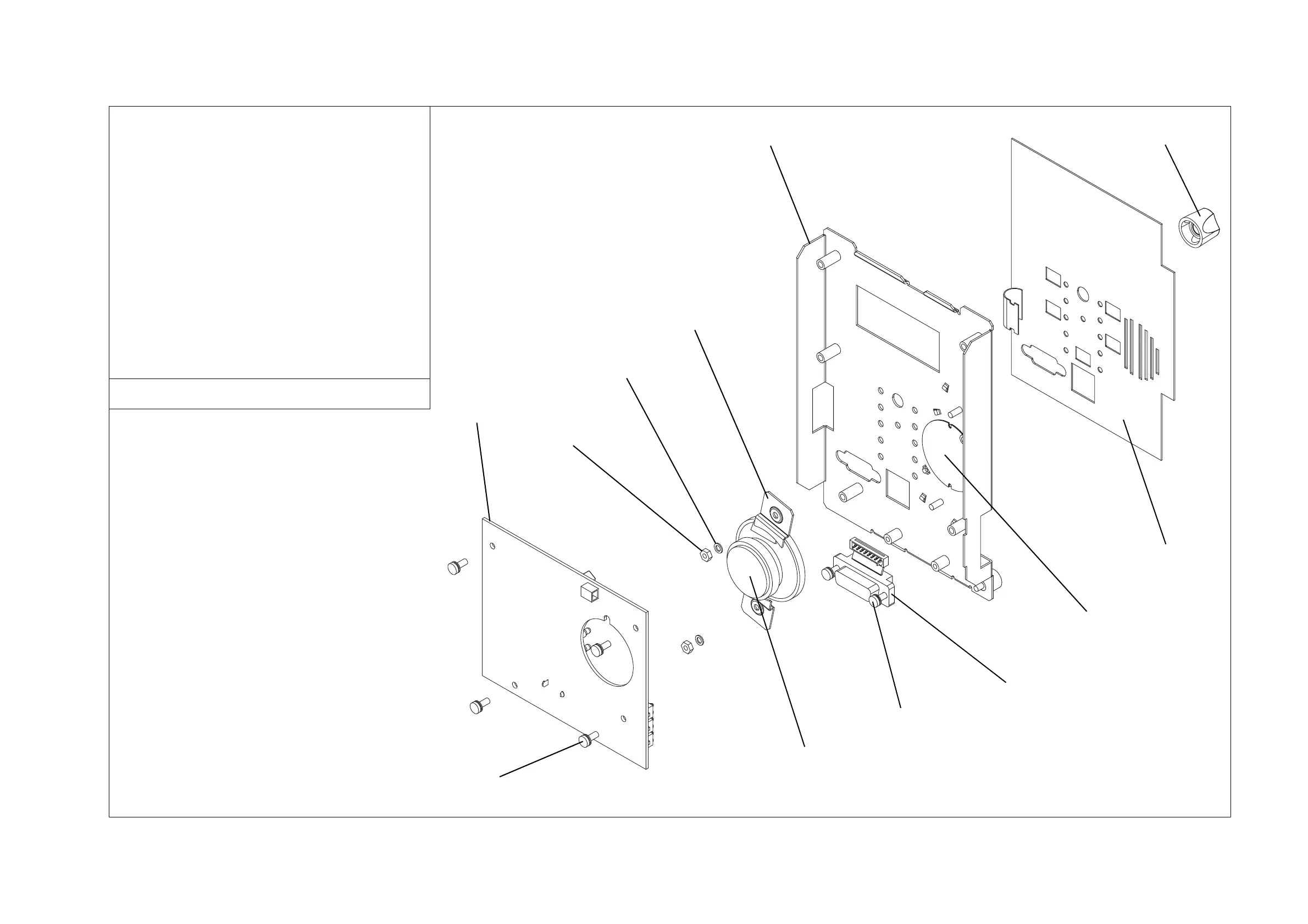

Figure 18.4 Control panel mechanical assembly - standard, Power Save, and
dual base station
Description IPN
b
D-range to Micromatch ribbon cable 219-02853-XX
c
speaker* 252-00011-XX
d
speaker mounting bracket* 302-05266-XX
e
speaker grille cloth* 307-01024-XX
f
volume knob* 311-01054-XX
g
keypad - Power Save
keypad - standard
keypad - dual base station
311-03115-XX
311-03116-XX
311-03119-XX
h
chassis 316-06820-XX
i
M3x8mm pan head Torx screw with spring & flat
washers
345-40470-XX
j
M3 hex nut* 352-00010-08
1)
M3 spring washer*
* not fitted to Power Save control panel
353-00010-12
1!
control panel board
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
Note:
This drawing shows a standard control panel. Any
differences between the standard, Power Save and dual
base station control panels are indicated in the
description of the parts. The multi-reciter control panel is
shown in Figure 18.5 on page 286.
b
c
d
x2
e
f
g
h
i
x4
j
x2
1)
x2
i
x2
1!
To Next Page
