TB8100 Service Manual Power Management Unit Fault Finding 243

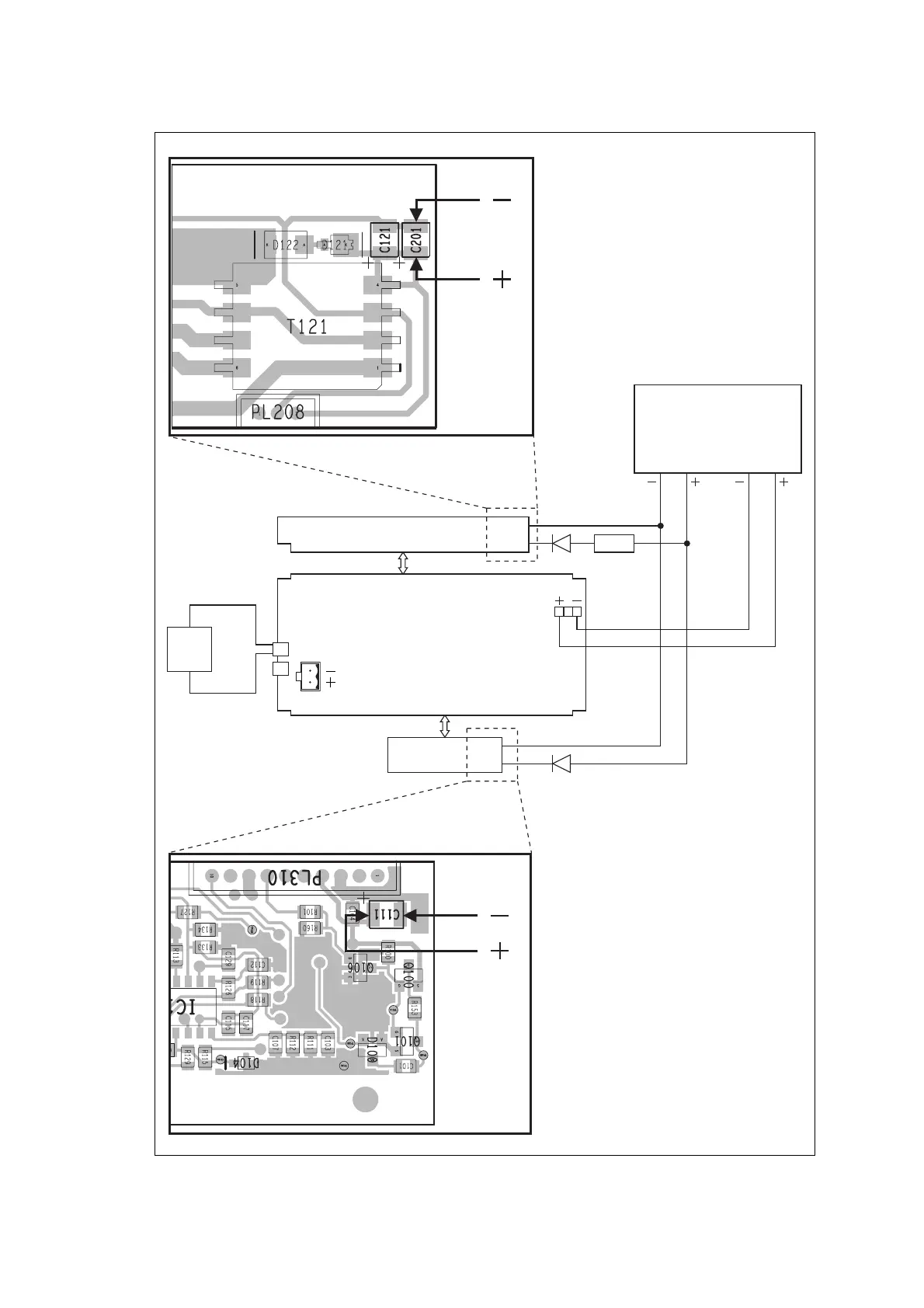

Figure 13.11 AC converter test equipment set-up

AC Converter

HVDC Control & Microprocessor Card

PFC Control Card

(modified)

DC Supplies

Main Input

Power

(0-30VDC)

Control

Power

(20VDC)

220Ω

1N4004

Input*

Output

1N4004

Load

*If you want to use the matching plug for this

connector, the details are as follows:

plug: IPN 240-00022-07 ( )

crimp socket: IPN 240-00022-00 ( )

JST VLP-03V

JST SVF-61T-P2.0
