TB8100 Service Manual Subrack Servicing 293
© Tait Electronics Limited September 2006

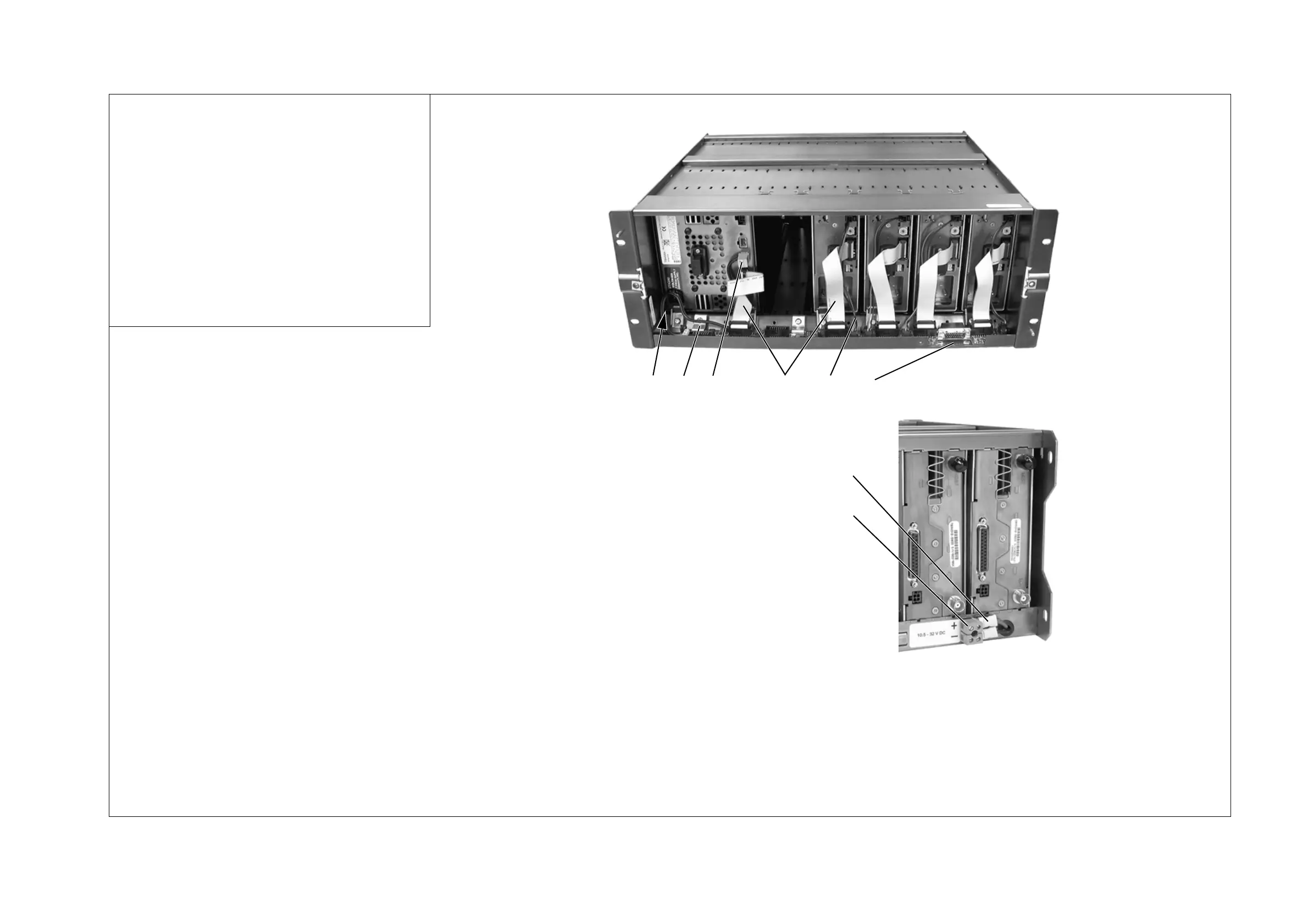

Figure 19.5 Cables and mechanical parts used in the multi-reciter subrack
Description IPN
b
bottom guide rail for reciter fitted in subrack
position 7
307-02054-XX
c
retaining clamp for securing subrack interconnect
board
302-10066-XX
d
DC power cable - PMU to subrack interconnect
board
219-03069-XX
e
system control bus ribbon cable - reciter and PMU
to subrack interconnect board
219-02858-XX
f
DC power cable - subrack interconnect board to
reciter
219-03068-XX
g
insulator for subrack interconnect board 362-01135-XX
h
DC power cable - subrack DC input terminal block
to subrack interconnect board (when no PMU fitted)
219-03067-XX
i
DC input terminal block (when no PMU fitted) 240-04030-03
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering
as spare or replacement parts.
Note:
This drawing shows the cables and mechanical parts
which are unique to the multi-reciter subrack. All other
mechanical parts are as shown in Figure 19.2 on
page 290.
bcd e
f
h
i
g
