270 Power Management Unit Spare Parts TB8100 Service Manual
© Tait Electronics Limited September 2006

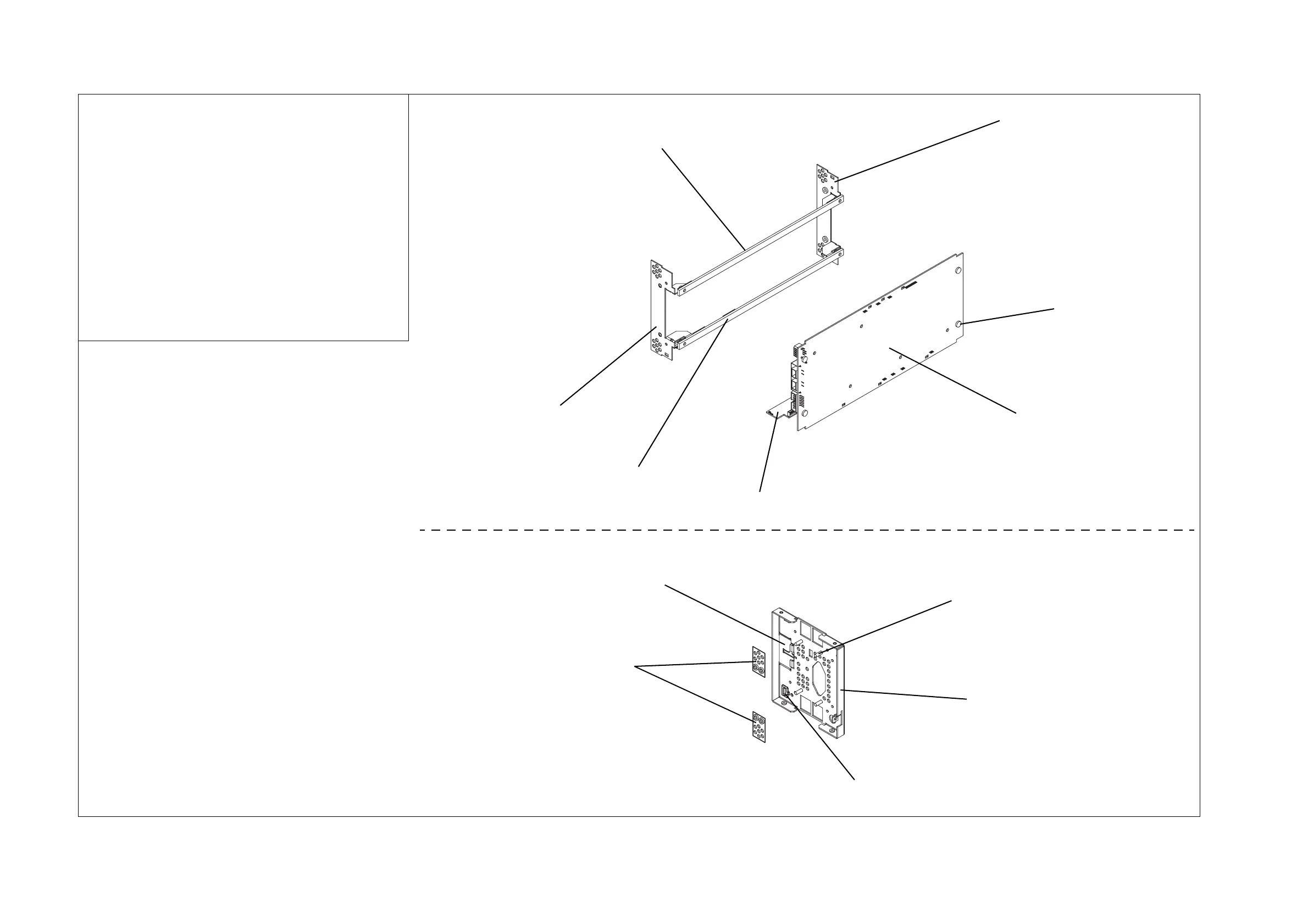

Figure 16.2 PMU mechanical assembly - sheet 2
Description IPN
DC PMU
b AC converter board mounting bracket 302-05268-XX
c heatsink insulator 309-01051-XX
d M4x12mm pan head Torx Taptite screw 349-02058-XX
e
DC output filter board
f DC microprocessor card
AC PMU
g DC input insulator 309-01052-XX
h rear panel 316-06813-XX
i AC blanking plate 316-06836-XX
j M4x12mm pan head Torx Taptite screw 349-02058-XX
1) seal (when 40W aux. PS board not fitted) 362-01122-XX
Note:
The characters XX in an IPN (Tait Internal Part Number)
stand for the issue number of the part. Only the latest
issue of each part will normally be available for ordering as
spare or replacement parts.
b
c
d
e
f
c
b
x4
g
j
h
1)
i
DC PMU
This drawing shows the assembly of the
AC module when it is fitted to a DC PMU.
AC PMU
This drawing shows the blanking plates fitted to
the front and rear panels in an AC PMU. These
plates cover the holes normally covered by the
DC module heatsinks.
x4 each end
x2
each end
