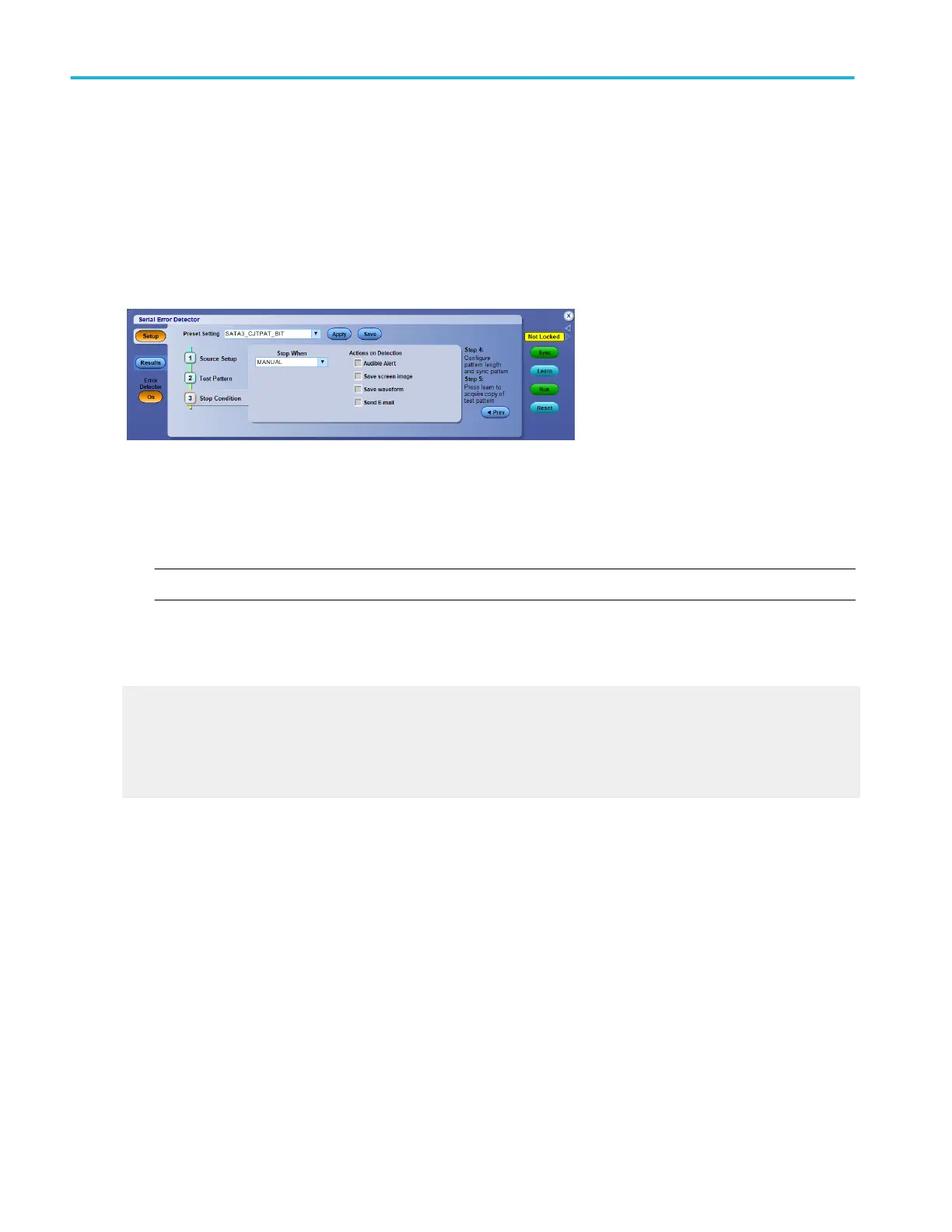

Set the error detector stop condition

From the Analyze menu, select Serial Error Detector, press Setup, and then select the Stop Condition tab. Error detector is not

available on DPO70000SX instruments.

Overview

Use this control window to specify the action performed when the error detector detects an error.

To use

■

From the Stop Condition tab, select the Stop When condition. You can stop manually, after a preset count or time that you

specify, or on an error.

NOTE. Use large numbers for bit count tests: at 6 Gb/s, 60 billion tests take 10 seconds.

■

Select and setup the actions to perform when the stop condition is met. Using these actions, you can preserve the

information captured by the oscilloscope. You must setup the email address and the SMTP server for Send E-mail to work.

What do you want to do next?

Use the Error Detector.

Set up the serial error detector.

Set error detector advanced settings.

Specify the error detector test pattern.

Error detector overview

Error detector is not available on DPO70000SX instruments.

The typical error detector startup sequence can be summarized as:

■

Select a Preset Setup

■

Press Sync

■

Press Learn (if visible)

■

Press Run

The Sync operations gets the oscilloscope synchronized to the signal, the Learn operation acquires the signal pattern into

oscilloscope memory, and the Run operation starts the Error Detector testing for errors. Note that the Learn operation only

applies to some Bit error tests. Remember, Frame, Symbol, and Character error tests do not require a Learn operation.

Error detector setups

208 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
