AMI trigger standards

DS2 Rate Coax 6.312 Mb/s DS3 44.736 Mb/s E1 2.048 Mb/s E2 8.448 Mb/s

E3 34.368 Mb/s STS–1 51.84 Mb/s

Custom DS3 44.736 Mb/s STS–1 51.84 Mb/s

Custom DS2 6.312 Mb/s DS2 Rate Sym 6.312 Mb/s

Custom DS1 1.544 Mb/s DS1C 3.152 Mb/s DS2 Rate Coax 6.312 Mb/s

Custom DS4NA 139.26 Mb/s E4 139.26 Mb/s

STM1E 155.52 Mb/s STS–3 155.52 Mb/s

Custom E1 2.048 Mb/s E2 8.448 Mb/s

E3 34.368 Mb/s DS1A 2.048 Mb/s

Custom 100Base–TX 125 Mb/s

Custom 2.5 IBand 2.5 Gb/s FC133 132.8 Mb/s FC266 265.6 Mb/s

FC531 531.2 Mb/s FC1063 1.0625 Gb/s FC2125E 2.125 Gb/s G1 ATA 1.5 Gb/s

GB Ethernet 1.25 Gb/s FS USB 12 Mb/s HS USB 480 Mb/s

OC1/STM0 51.84 Mb/s OC3/STM1 155.5 Mb/s OC12/STM4 622.1 Mb/s

OC48/STM16 2.488 Gb/s OC48–FEC 2.666 Gb/s S400b 491.5 Mb/s S800b 983.0 Mb/s

S1600b 1.966 Gb/s XAUI 3.125 Gb/s RapidIO 500M 500 Mb/s RapidIO 750M 750 Mb/s

RapidIO 1.0G 1.0 Gb/s RapidIO 1.5G 1.5 Gb/s RapidIO 2.0G 2.0 Gb/s SFI/SPI–5 2.5G 2.5 Gb/s

SFI/SPI–5 3.1G 3.1 Gb/s RIO Serial 1G 1.25 Gb/s RIO Serial 2G 2.5 Gb/s RIO Serial 3G 3.125 Gb/s

VSR OC192 1.244 Gb/s TFI–5 2.5G 1.488 Gb/s TFI–5 3.1G 3.11 Gb/s Serial 8b/10b 3.125 Gb/s

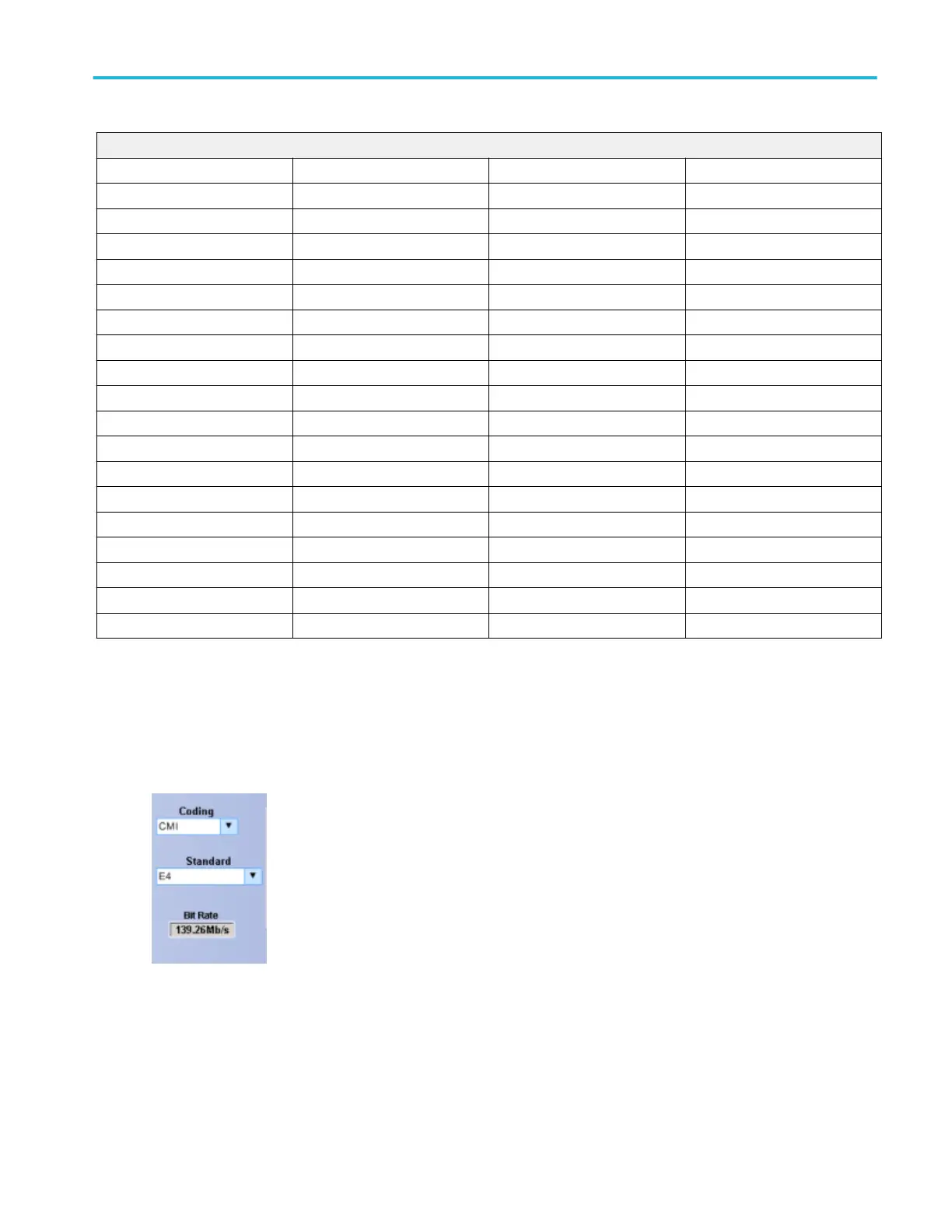

Set up communication trigger coding

From the Trig menu, select Comm Setup.

Overview. Use these controls to select the coding format for triggering on a communication signal and the standard to use with

the coding format.

To use.

■

In the Coding drop-down list box, select the coding format for triggering the communication signal.

■

In the Standard drop-down list box, select the standard to use with the coding format.

■

The Standard sets the bit rate.

Oscilloscope reference

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 747
