Tektronix DPO7054C Printable Help

To use
For information on the controls, click the buttons.
■
Type
■
Source
■
Copy Settings
■
Search Parameters
■
Search / Mark Controls
Behavior

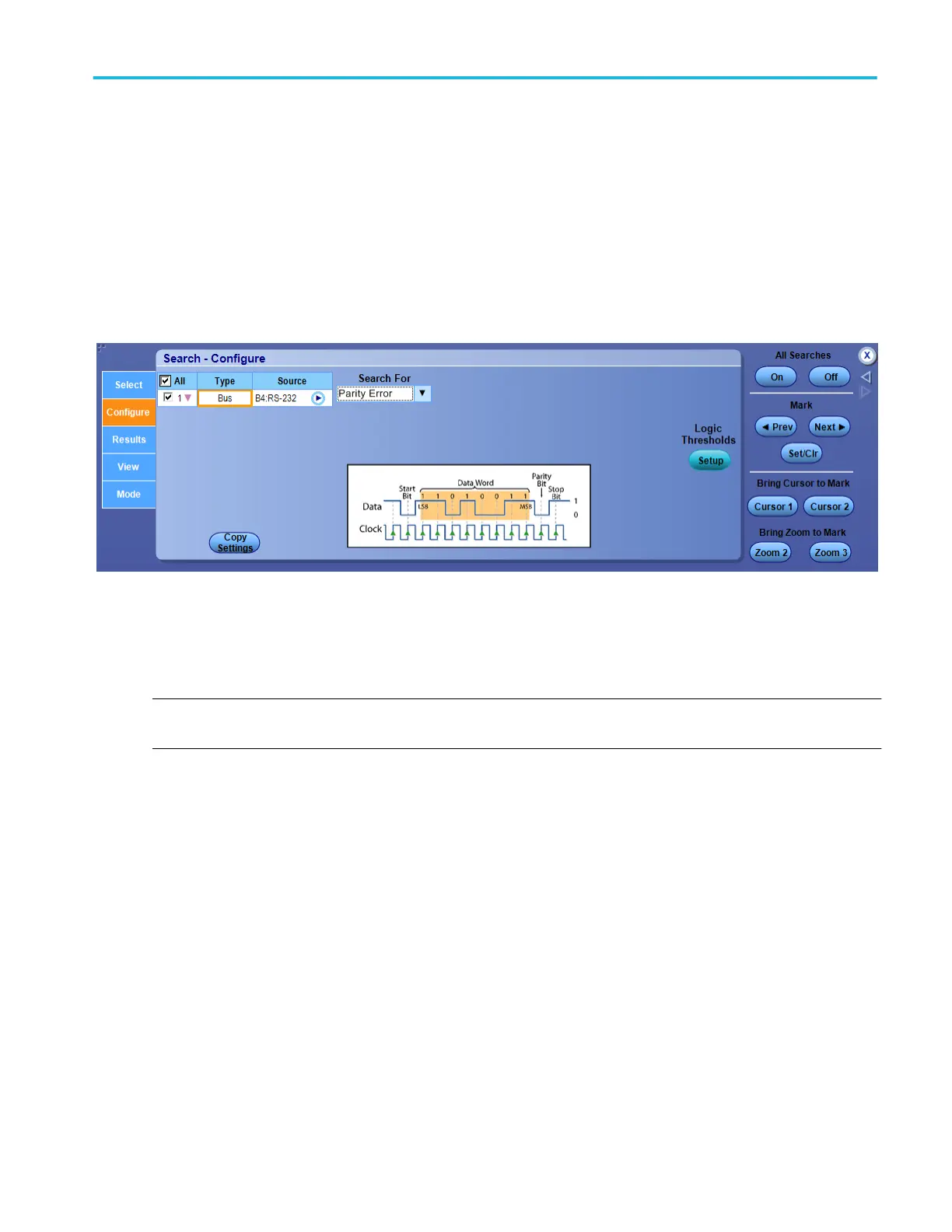

Clicking an entry in the Type column activates the individual search controls, similar to the one shown above. These controls vary
depending on the search Type. Setting the search conditions is similar to setting the parameters for an Event Trigger.
NOTE. No information will be displayed in this window until you specify at least one search Type in the Search Select Control
Window.
To use
■
Click the Source box and select the bus number or name from the window. Bus Search Selection List
■
Select the type of bus cycle or activity to search for from the Search For drop-down list.
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 317

Tektronix DPO7054C Specifications

General

Bandwidth	500 MHz
Channels	4
Sample Rate	5 GS/s
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Record Length	25 M points
Input Impedance	1 MΩ ±1%
Display	12.1 in.
Trigger Modes	Edge, Pulse Width
Operating Temperature	0 °C to 40 °C
Maximum Input Voltage	300 V RMS (1 MΩ), 5 V RMS (50 Ω)
