1.2 Configuration
1-12
FURUNO
RW-9600
Scanner
RPU-013
100VAC 1 50/60Hz
100/110/200/220VAC
1 50/60Hz
RU-3305
For De-Icer
(Transformer)
DPYCY-1.5
T/R unit
RTR-081
Wave guide
- WRJ-9 or
- FR-9
MPYCY-19
2. Applicable model: FAR-2827W
Table 1.2.3 Configuration on 25 kW X-band Waveguide Type Radar
Transceiver Gear box Radiator
Model
Type Output Type
Motor
(24 VDC)
rpm PM De-icer
Type
(Length)
FAR
-2827W
RTR-081 25kW RSB-103 D8G-516 24 PM-31 Yes
XN-20AF
(6.5 ft)
XN-24AF
(8 ft)
The De-icer must be incorporated in the factory. (not the field job)
When mounting a performance monitor (PM-31), change the Gearbox cover with the
PM-31.
The Gearbox and Transceiver unit (RTR-081) are connected by a waveguide. Install the
Transceiver unit in such a way as to minimize the length of the waveguide for minimizing
the signal loss by the waveguide. And, it has to keep more than specified bent radius
because the loss becomes greater.
.

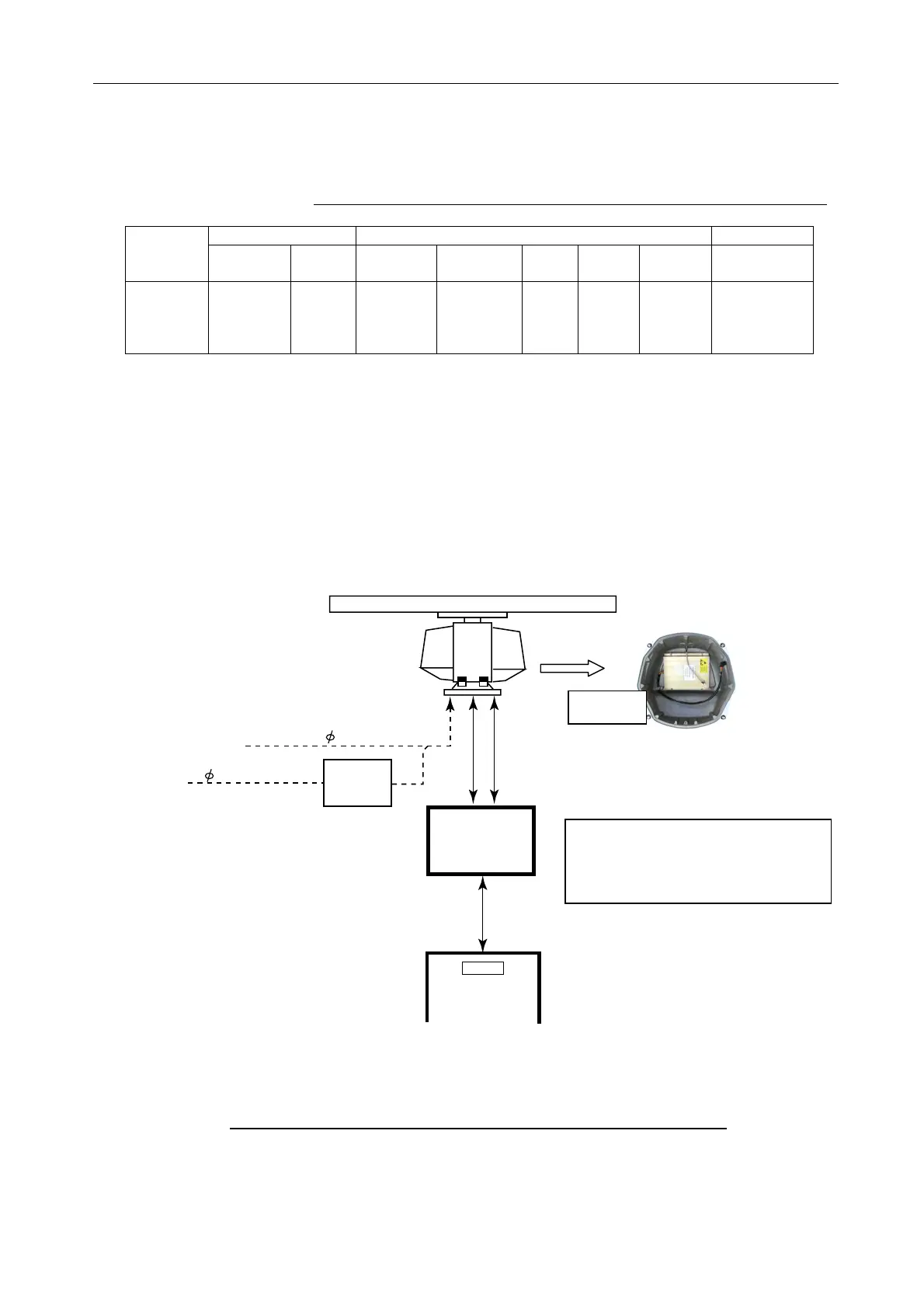

Fig. 1.2.7 Configuration of 25 kW X-band Waveguide Type Radar
PM-31
Length of Waveguide:
Recommended dimension is less than 30 m.
Specification of bend radius for FR-9
- E side radius: more than 200 mm
- H side radius: more than 400 mm
- Torsion: 10 deg./m or less
To Next Page
