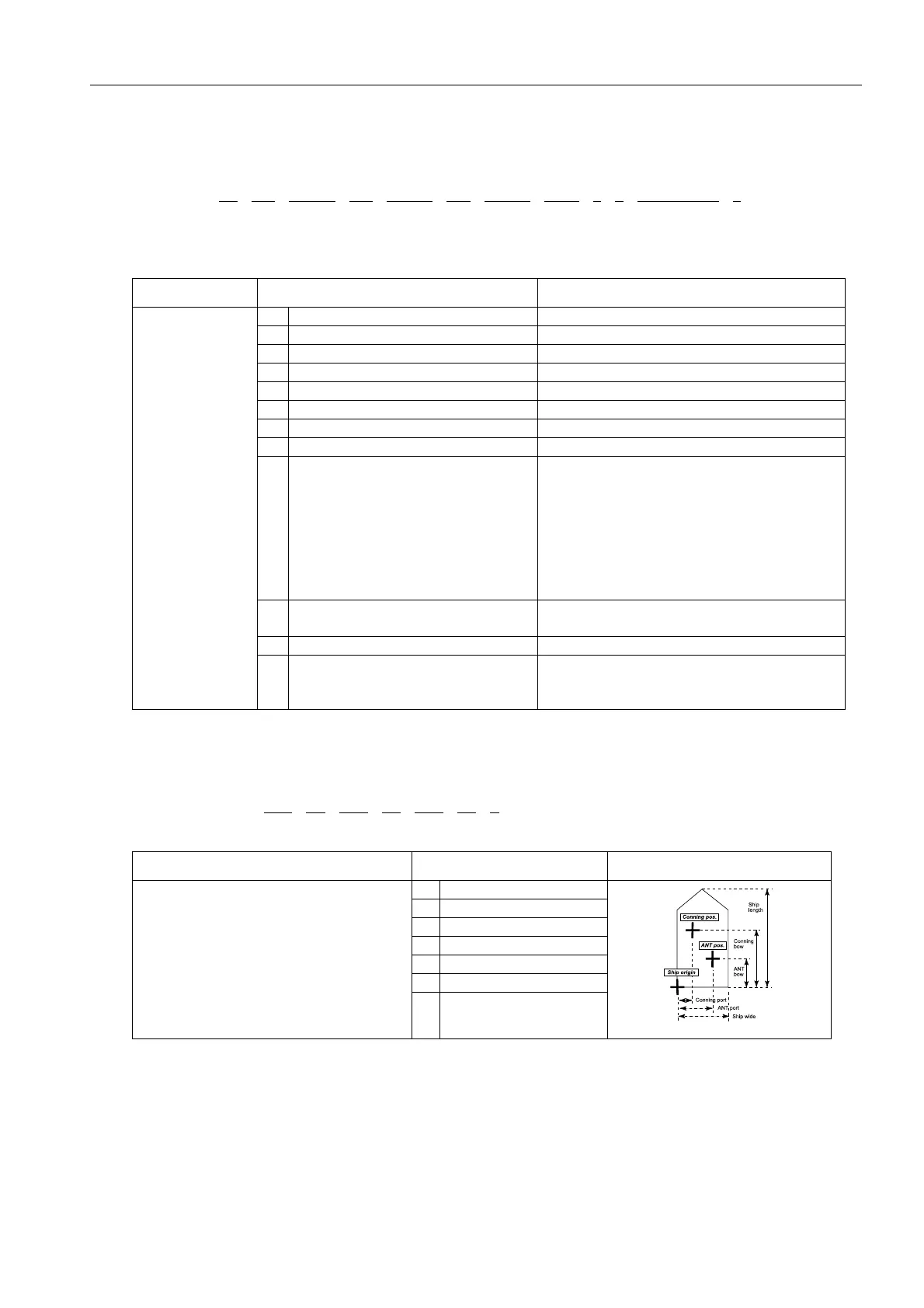

1.3.3 TTM - Target
$RATTM , xx , x.x , x.x , a , x.x , x.x , a , x.x , x.x , a , c—c , a , a , hhmmss.ss , a
1 2 3 4 5 6 7 8 9 10 11 12
*hh<CR><LF>
Contents Data Target status/Reference tgt./Acquisition
1 Target number, 00 to 99
2 Target distance from own ship
3 Bearing from own ship, True/Relative
4 Target speed
5 Target course, True/Relative
6 CPA
7 TCPA, min., “-” increasing
8 User data (e.g. name)
9 Target status
Q= query, target in the process of acquisition
T= tracking, perfect
1= tracking, but 1 miss in last 10 scan
2= tracking, but 2 misses in last 10 scan
|
9= tracking, but 9 misses in last 10 scan
L= lost, target has been lost, 10 misses in last
10 scan
10 Reference tgt.= R
R= fix target, acquired by external computer
null= normal target
11 UTC time of data
TARGET
- BEARING
- DIST
- SPD
- CRS
- TCA
- CPA
- NUMBER
- STATUS
- REF_TARGET
- TIME
- ACQ TYPE
12 Acquisition
A= automatic
M= manual
R= reported
1.3.4 PFEC, RAssd - Antenna Location
$PFEC , RAssd , xxx , xx , xxx , xx , xxx , xx , x *hh<CR><LF>
1 2 3 4 5 6 7
Contents Data Antenna Location
1 Length
2 Width
3 Antenna position, bow
4 Antenna position, port
5 Conning position, bow
6 Conning position, port
- VESSEL SIZE (LENGTH, WIDTH)
- ANTENNA POSITION (BOW, PORT)
- CONNING POSITION (BOW, PORT)
- ANTENNA NUMBER
7 Antenna number
