Furuno FAR-2827 Service Manual

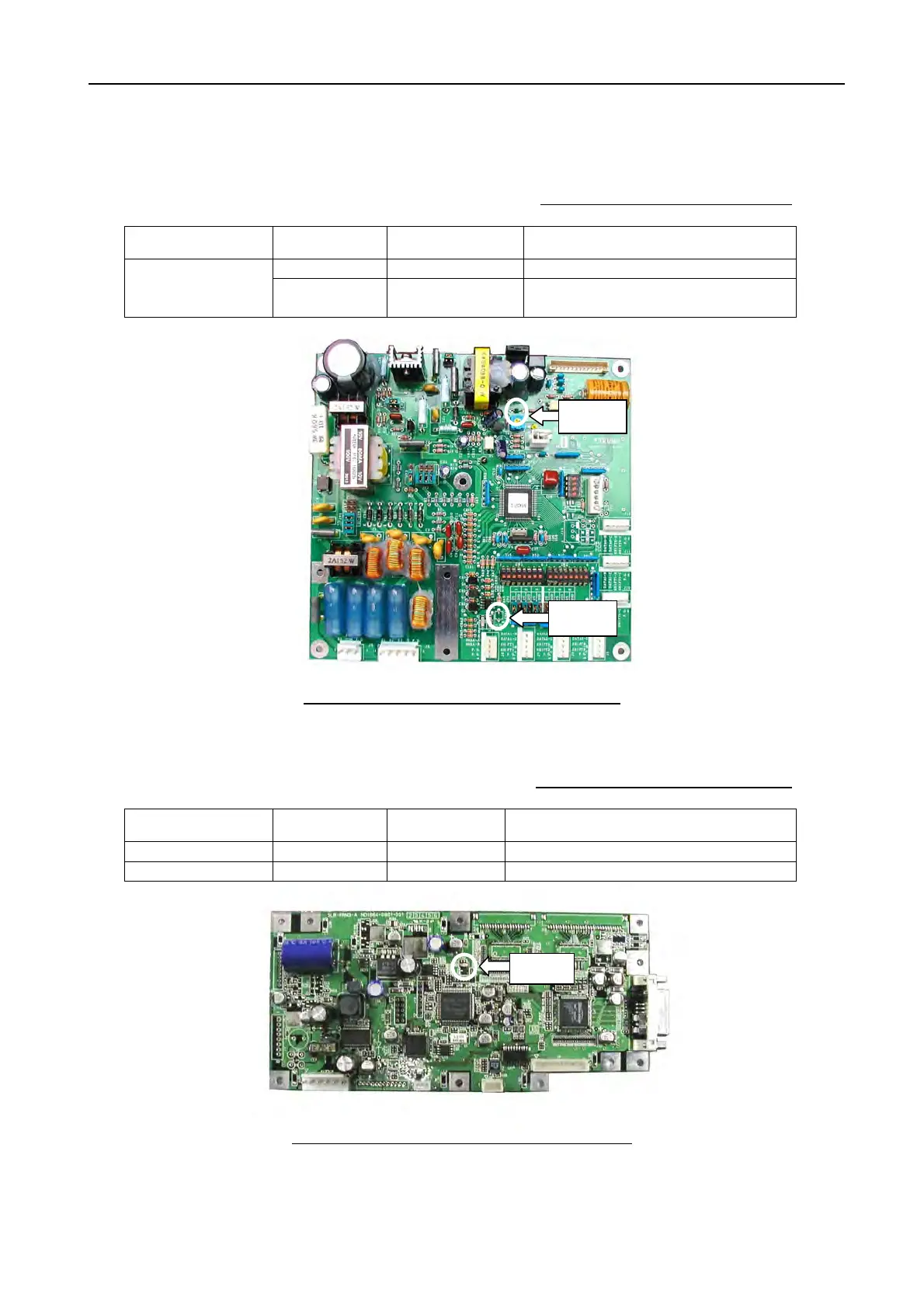

6.3 LED Check
6-28
5. GC-10 board
Table 6.3.5 LEDs on GC board
Board Part number Normal status Function
CR22 Light Check for +5 VDC output
64P1106-99 (A)
CR21
Blink
every 0.2 second
Check for AD data output
Fig. 6.3.6 Location on LEDs on GC Board
6. DVI I/F board
Table 6.3.6 LEDs on DVI Board
Board Part number Normal status Function
SLB-FRN4-A LED 1 Light For connection of VDR or Monitor
SLB-FRN3-A LED 1 Light Incorporated in MU-201CR
Fig. 6.3.7 Location of LEDs on DVI I/F Board
CR22
CR21
LED1
