4.12 Change of Power Input Type
4-66
1. Jumper setting
4.12.3 Change of power (AC <-> DC)
When you change the power between AC and DC, replace the FIL board and power fuse as
well as the PWR board together. See page. 6-41.
Table 4.12.2 When Change of Power
PWR board (ANT: rpm) FIL board
Power
AC type DC type AC type DC type
03P9339A (24 rpm)
100 VAC
03P9339B (42 rpm)
03P9339C (24 rpm)
220 VAC
03P9339D (42 rpm)
03P9341
03P9338C (24 rpm)
24 VDC
03P9338D (42 rpm)
03P9338A (24 rpm) 12 to
24 VDC
03P9338B (42 rpm)
03P9352
JP1:12V
Board
JP1
setting
Type
03P9338A
03P9338B
Jumper 12-24 V
03P9338C
03P9338D
Open 24 V

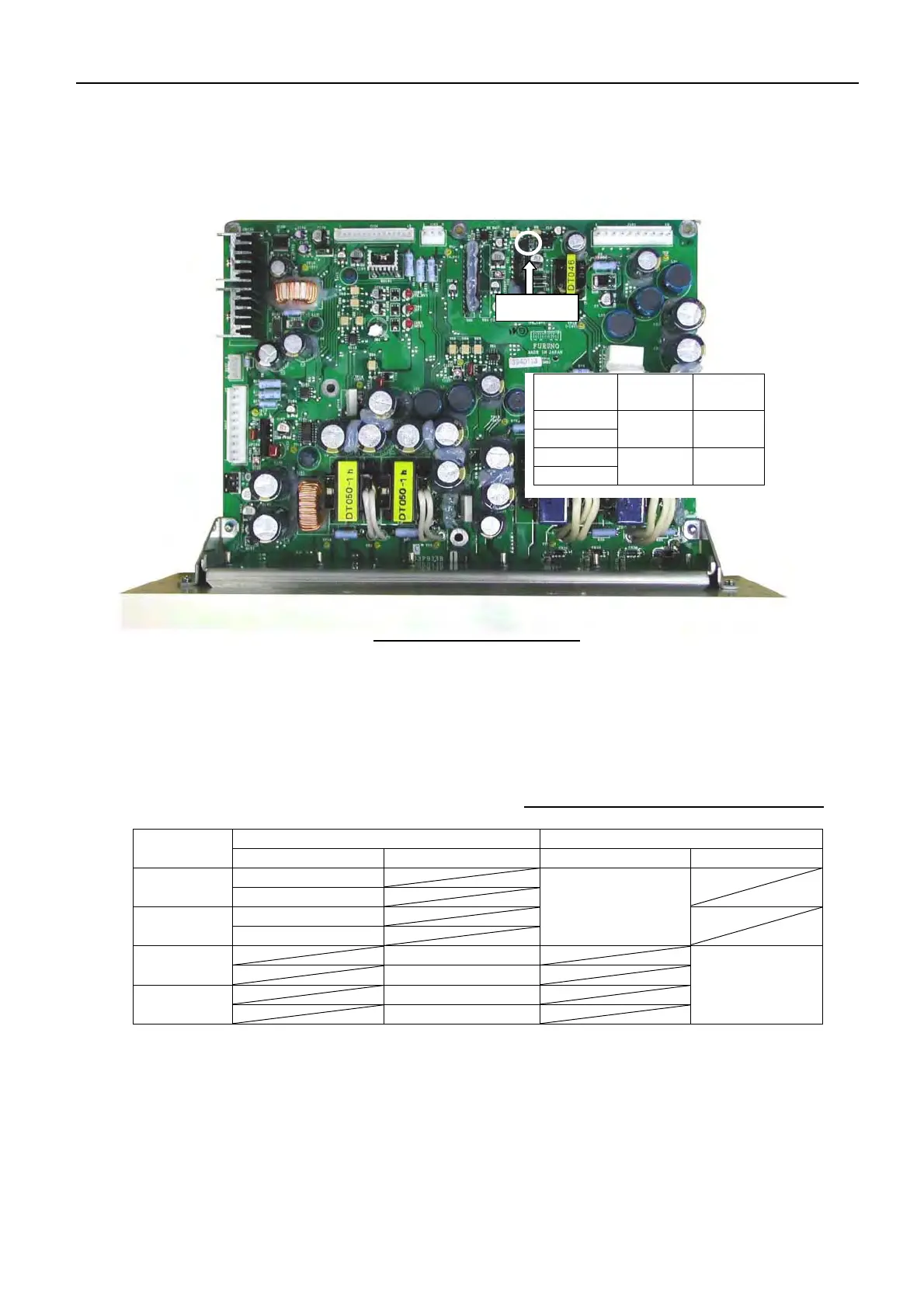

Fig. 4.12.4 DC PWR Board
