Furuno FAR-2827 Service Manual

3.2
Box Menu
Box Menu Box Menu
Box Menu
3-9

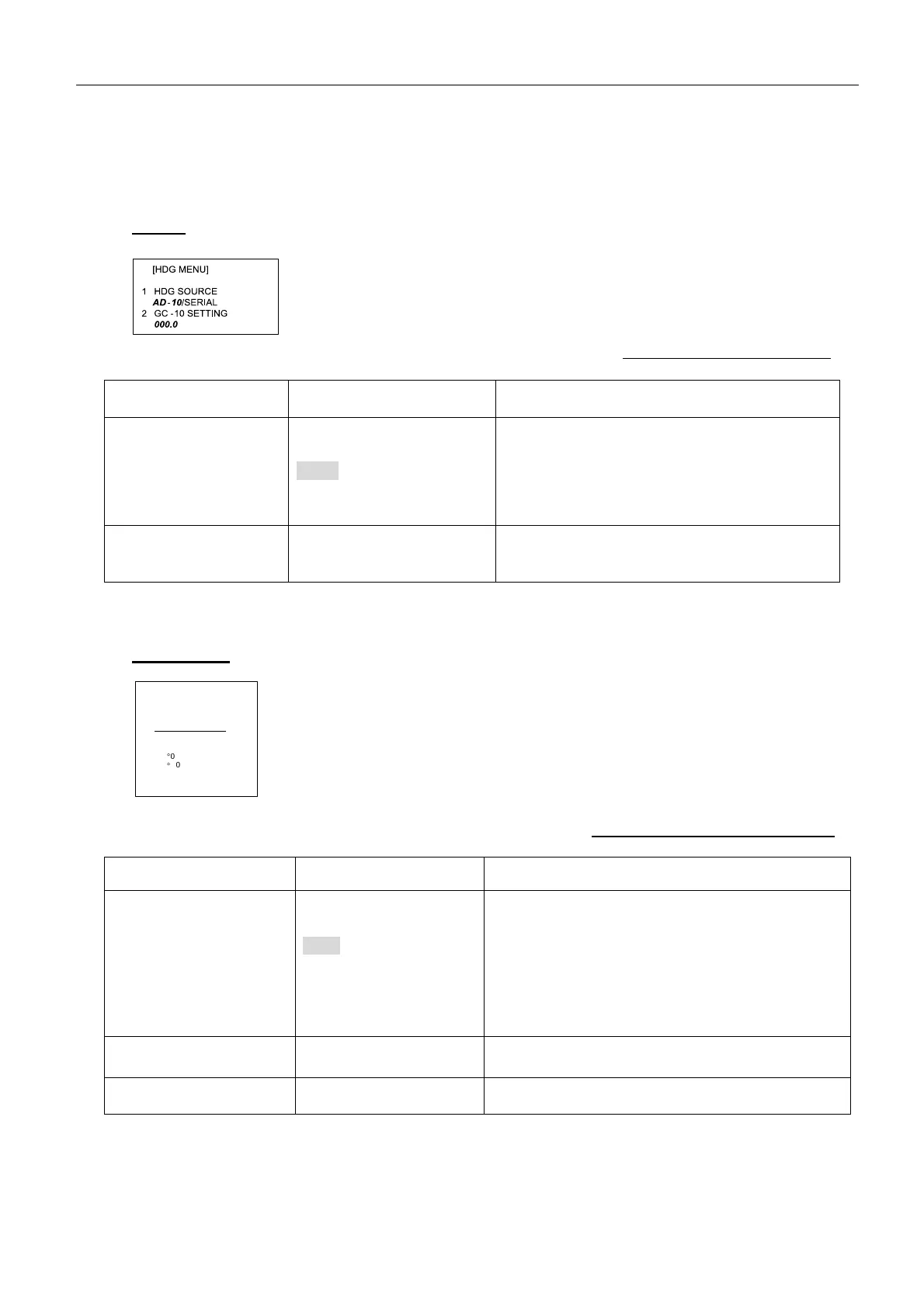

3.2.2 Content
[HDG]
Table 3.2.2 HDG Box Menu
Menu Submenu Description
1 HDG SOURCE AD-10/SERIAL
Allows the selection of the heading data.
- AD-10: AD format (25 msec)
- SERIAL: HDT (IEC61162-2: 38.4 kbps)
Without the HDG data, the radar operation is
restricted only to the Head-up mode and the ARPA
and AIS functions do not work.
2 GC-10 SETTING
000.0
°
°°
°
Sets the “Heading” when GC-10 is incorporated in
the RPU-013 unit. Set “1. HDG SOURCE” listed
above to “AD-10.”
[OS POSN]
Table3.2.3 OS POSN Box Menu
Menu Submenu Description
1 NAV AID
GPS1/GSP2/
DEAD RECKONING/
LAN
Select the connected ports of NAV data input;
-GPS 1:NAV port（J606）
-GPS 2:SPEED LOG (J607), HEADING SENSOR
(J605), TRACK CONTROL (J620), LOG (J607)
-LAN: the NMEA data entered via the NETWORK.
-DEAD RECKONING:
When [Menu] -> 4 to 8: AIS FUNCTION is turned on,
“DEAD RECKONING” is disabled as for IMO type.
2 MANUAL L/L
00
°
°°
°
00.000 N
000
°
°°
°
00.000 E
When “DEAD RECKONING” is selected in “1 NAV
AID” listed above, the own ship position is entered.
3 SIO DATA
LAN OUTPUT
OFF/ON
Sets whether to output the NAV data in use to the LAN
port or not.
[OS POSN MENU]
1 NAV AID
GPS1/GPS2/
DEAD RECKONING*/
LAN
2 MANUAL L/L
00
° 00.00 N
000 °
00.00 W
* Not available on IMO radar.
3 SIO DATA LAN OUTPUT
OFF/ON
