Furuno FAR-2827 Service Manual

7.3 Processor Unit: RPU-013
7-37
7.3.4 Signal processing
Signal processing is performed on the SPU board. The figure below shows the concept
of the processing sequence.
STC control done on the RFC board is performed on the basis of the control data from
the SPU board. The processing of Echo Average and Echo Trail requires ship’s
heading/speed data or own ship position data. The ARPA requires ship’s heading/speed
data at the minimum.

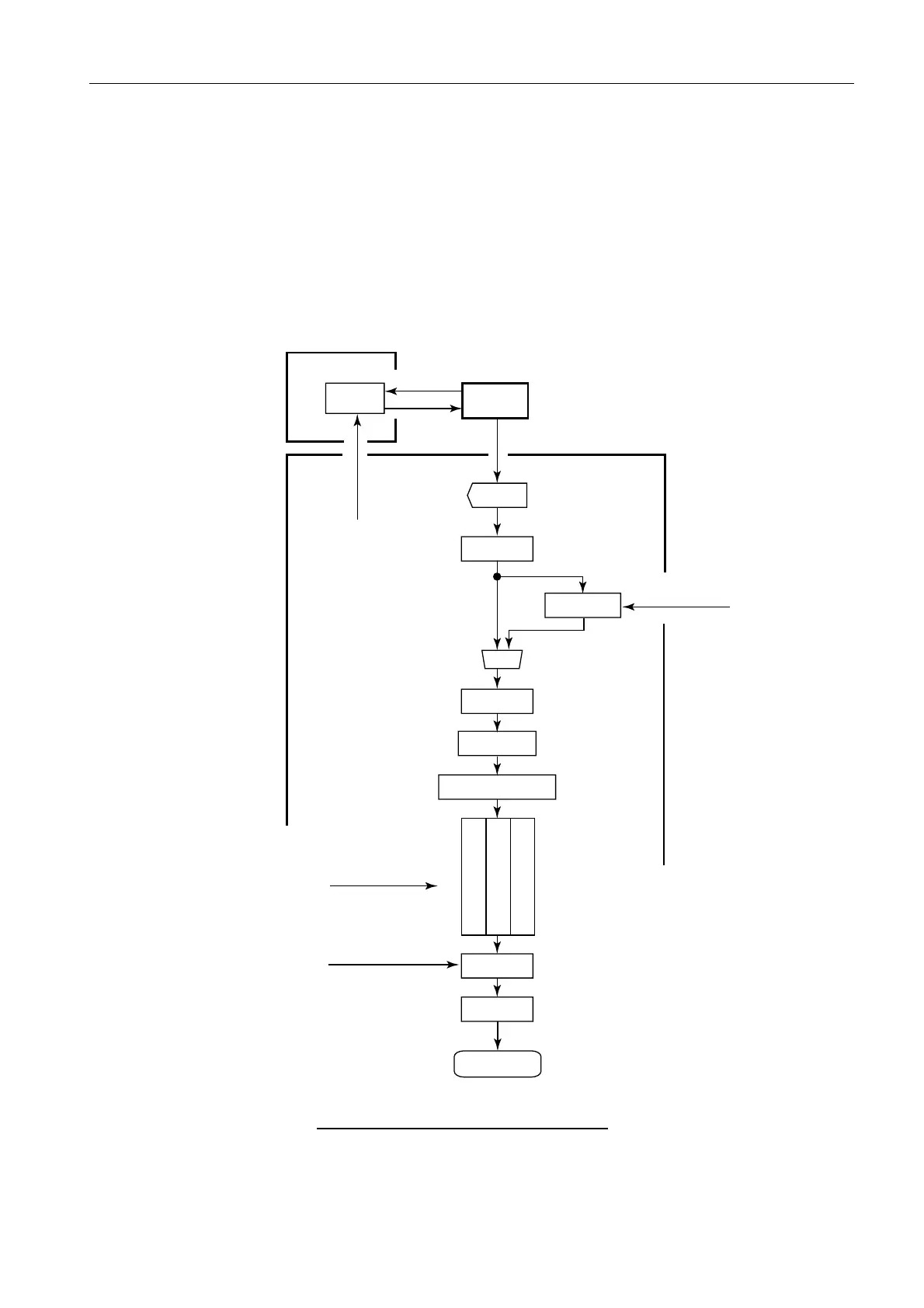

Fig. 7.3.9 Signal processing sequence
STC
STC CONT
FTC(RAIN)
VIDEO CONTRAST
NOISE REJ
INT REJECT
ZOOM
TRAIL
ARPA
ECHO AVERAGE
ECHO STRETCH
WIPPER
Heading/Speed data
or
Own Pos. data
Heading/Speed data
or
Own Pos. data
- MODEL
- STC RANGE
- SEA CONDITION
- ANT HIGHT
- NEAR/MID/FAR STC CARV
Heading data
Speed data(BT/WT)
presentation
Setting parameter
STC DETECT
AD CON
IF p.c.b
SPU p.c.b
RFC p.c.b
SEL
QV
