6.3 LED Check
6-24
2.
NET-100
This board is common to CU-200. LED operation is the same.
Table 6.3.2 LED of NET-100
Board Part number Normal status Function
CR1 (LED-A) Light DATA: Displayed when there is data on LAN. NET-100
(03P9332)
CR2 (LED-B) Blink LINK: Displayed when connected with LAN.

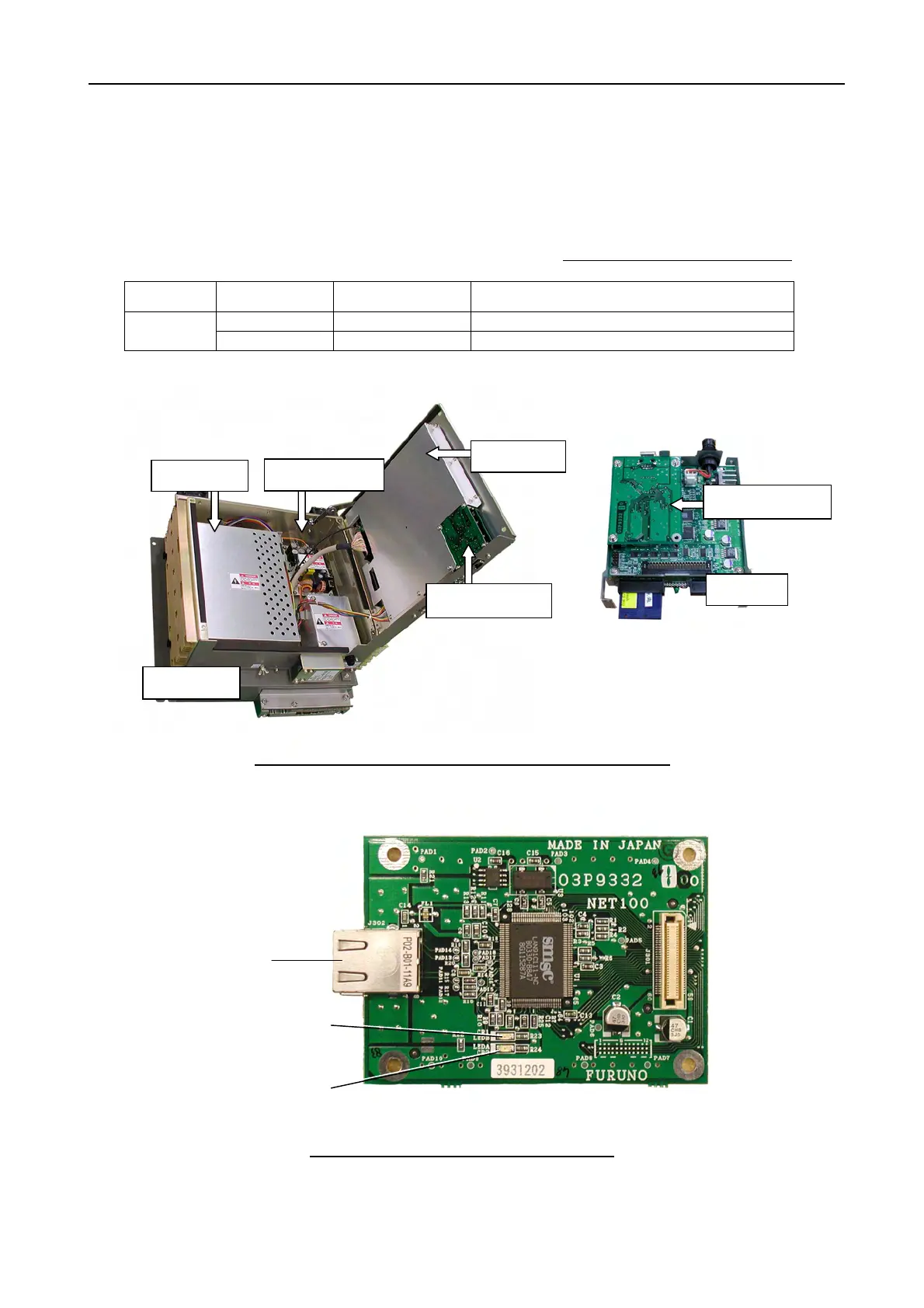

Fig. 6.3.2 Location of Boards on RPU-013 and CU-200
Fig. 6.3.3 Location of LEDs on NET-100
CU-200
RPU-013
NET-100 board
NET-100 board
SPU board
PWR board
100BASE-T
(RJ-45)
CR2 (LED-A): Light up
CR1 (LED-B): Blink
TX-HV board
To Next Page
