Q & A
8-1
1. How to call up the INITIALIZE and FACTORY menus
Refer to page.4-1 for the setting.
- INITIALIZE menu: Press the [Menu] key 5 times while holding down the [1:
HL OFF] key.
- FACTORY menu: Press the [2], [3] and [4] keys in order while holding down
the [1: HL OFF] key.
2. How to change the language display (English/Japanese)
See page.4-2.
Make the setting in the FACTORY menu.
To call up this menu, press the [2], [3] and [4] keys in order while holding down
the [1: HL OFF] key.
3. Which cable should be used for LAN CA, Cross CA or Straight CA?
See page.3, 7-70 and the Operator’s Manual of “HUB-100”.
Use a cross cable for connection between FAR and FAR, and FAR and CU-200.
For connection of FAR and CU-200 via HUB-100, either a cross cable or straight
cable of Category 5 can be used. The LAN cable kit FR-FTPC-10/20/30 m,
armored cable is available as option. All the ports of HUB-100 are provided with
the Auto-MDIX function, and automatically recognize a connecting cable.
Note:
Use a straight cable in case a hub is not provided with the Auto-MDIX.
Chapter 8. Q & A

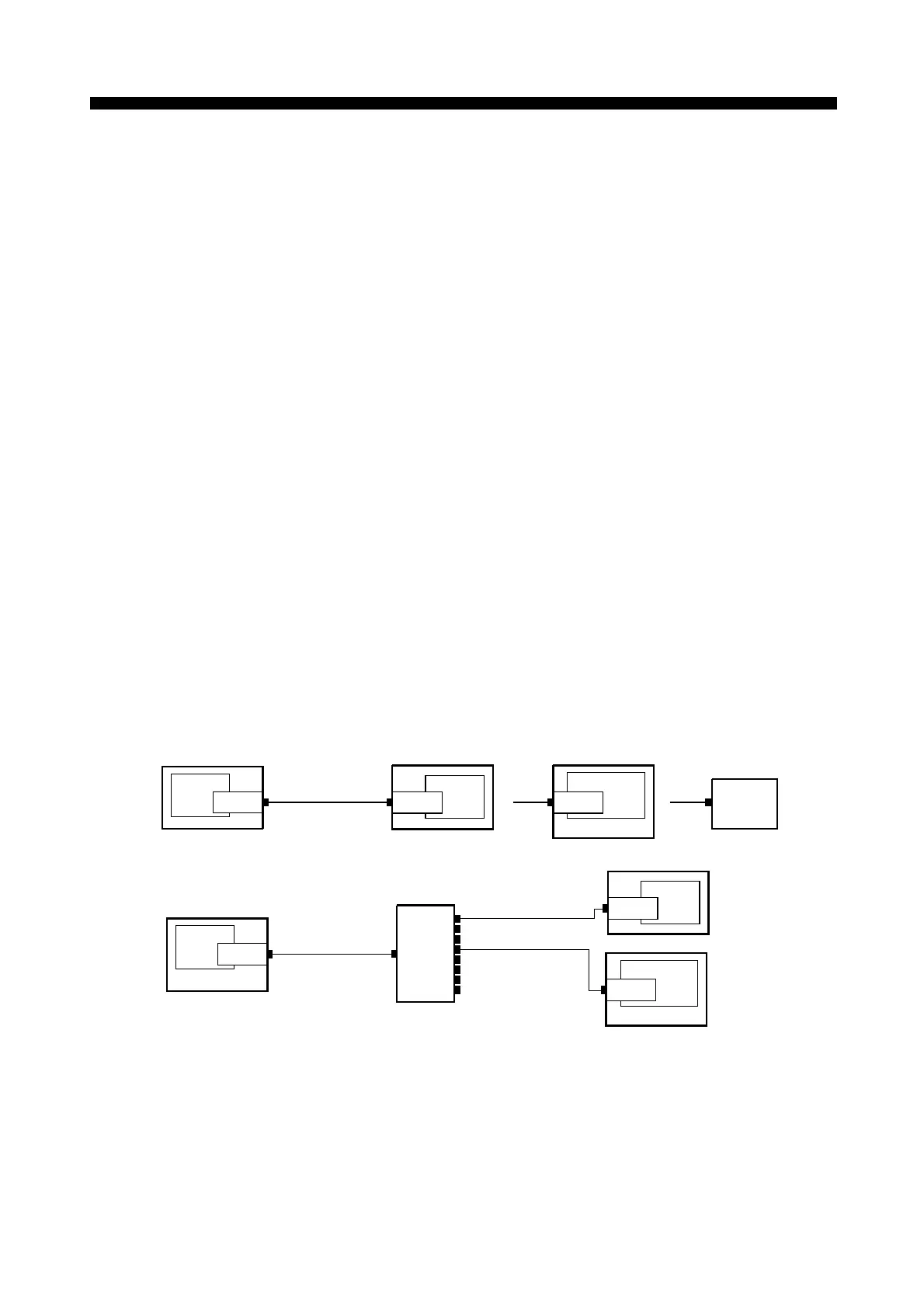

SPU p.c.b
LAN
No.1 FAR-2xx7 series
NET-100
SPU p.c.b
LAN
LAN
No.2 FAR-2xx7 series
NET-100
SPU p.c.b
No.x FAR-2xx7 series
NET-100
LAN
CARD CPUp.c.b
CU-200
NET-100
SPU p.c.b
LAN
No.x FAR-xx7 series
NET-100
CARD CPUp.c.b
LAN
LAN
LAN
CU-200
HUB-100
NET-100
8 ports
100Base-Tx
100Base-Tx
100Base-Tx
100Base-Tx
cross cable
cross cable
or
straight cable
cross cable
or
straight cable
