GE Precision 500D User Manual

om 5184516-100 Rev. 5 6-2

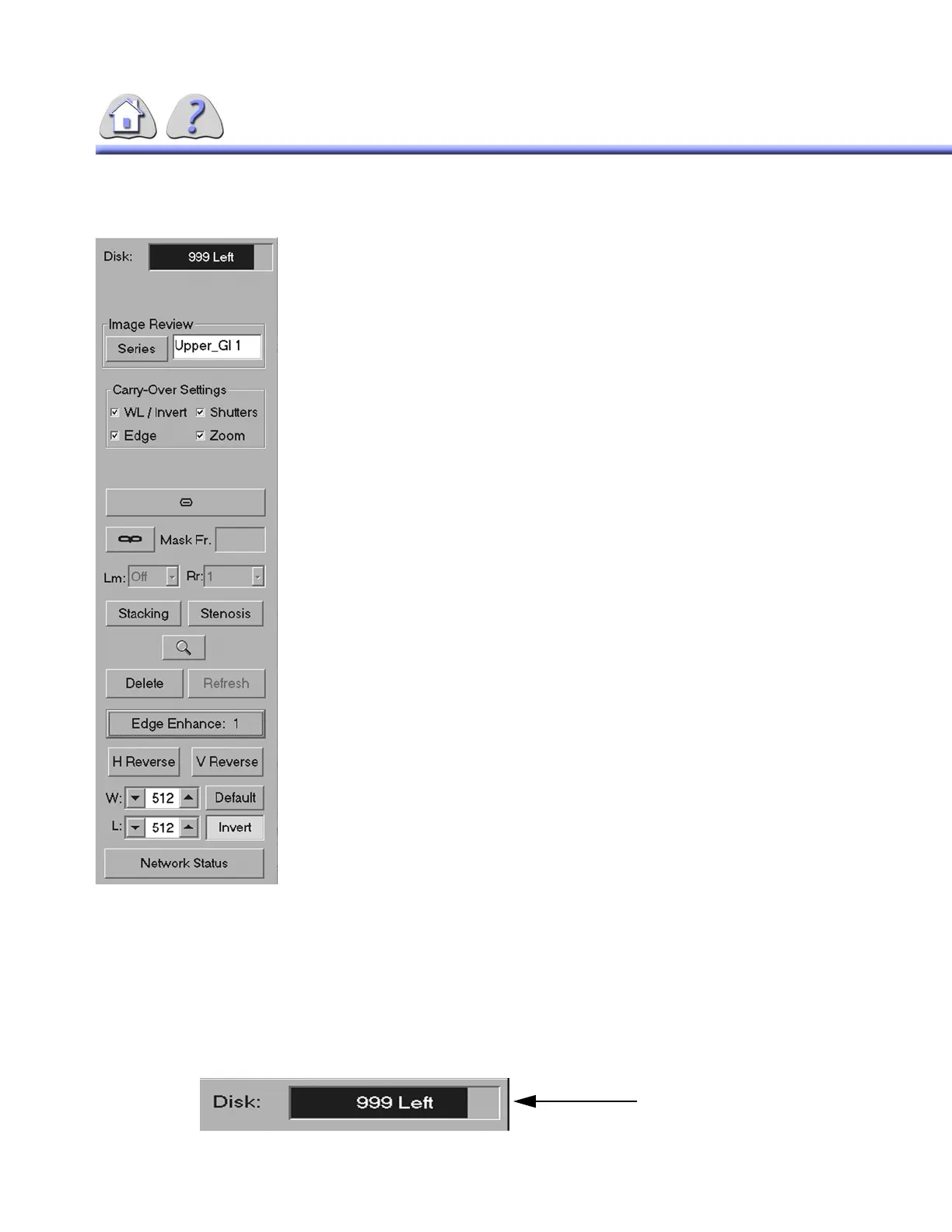

ILLUSTRATION 6-2
IMAGE REVIEW UTILITY MENU
1-2Disk Space Indicators
The disk space indicators are shown at the top of the feature menu portion of the
screen.
Disk = Hard Disk space for Fluoro and Spot images
The shaded area on the scale indicates the amount of space already used for
storing images.
ILLUSTRATION 6-3
DISK STATUS INDICATOR
Pull Down List
Pull–down list buttons, when activated, show all the available settings
for a feature. You can use the pointing device to select one of the
options shown in the list. The feature will not allow any other entries
other than those included in the list.
Input Field Boxes
Input Field Boxes include a box for entering exact data using the
keyboard.
Toggle Buttons
Toggle feature buttons activate/deactivate a feature with each
selection of the feature button. The button changes in appearance to
signal if the feature is active.
Arrow Buttons
Arrow buttons can point either up, down, left, or right. Selecting an
arrow button once will change the specific feature by a single value.
For example, the Select Run Arrow pointing to the right (shown here)
will advance the system to the next Run.
The number indicates how many
images can be stored to disk.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
