om 5184516-100 Rev. 5 8-11
2-1 Locking lever
The locking lever locks the compensating filters, templates, etc. inserted in the
accessory rails of the multileaf collimator in place to prevent them from falling out
To remove an accessory from the collimator, the locking lever must be pressed in
until the compensating filter, templates etc., can be removed.
2-2Display on the Collimator

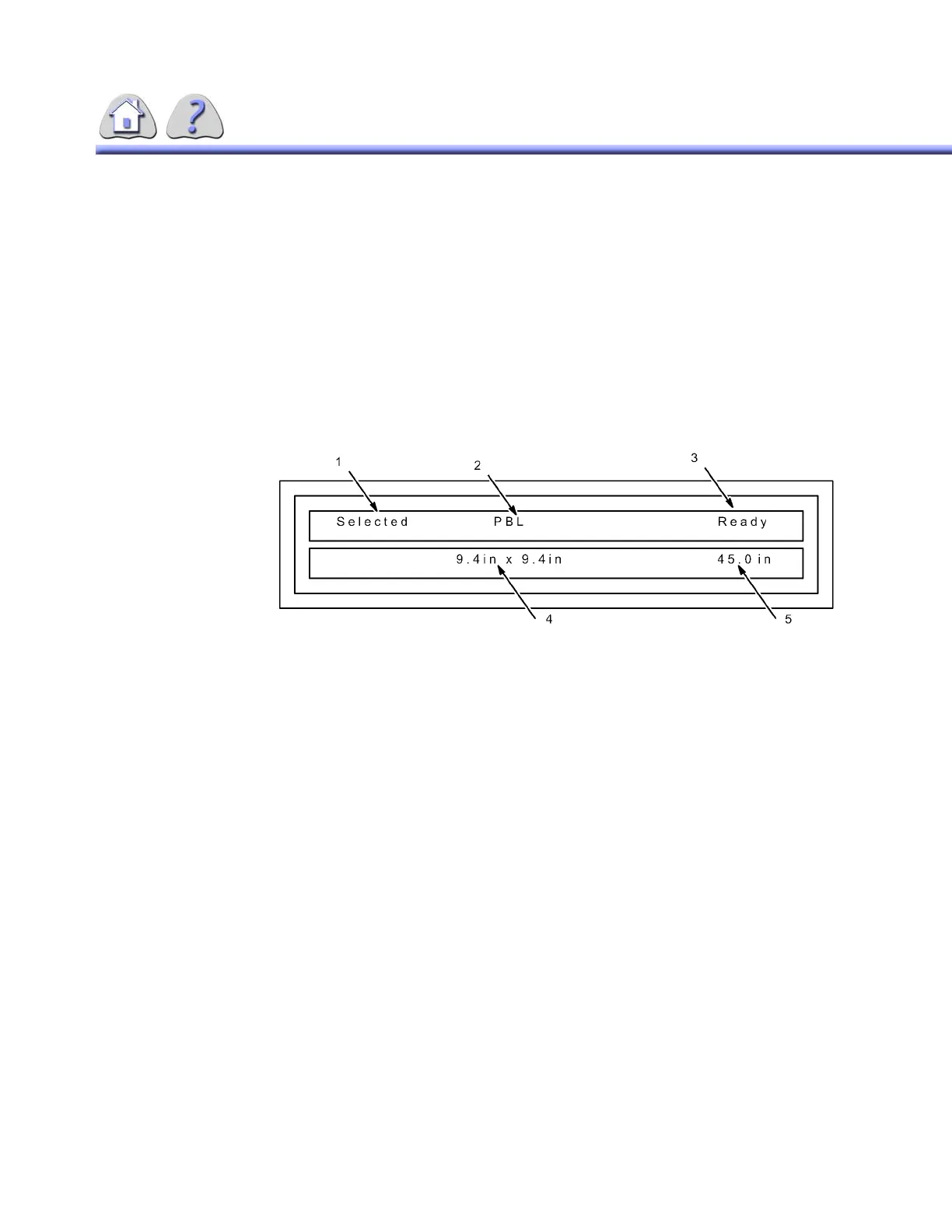

ILLUSTRATION 8-9
AUTOMATIC COLLIMATOR DISPLAY
Selected = Bucky workstation on Bucky Table or Bucky Wall Stand selected
(1) Selected = x–ray tube unit selected
(2) Operating mode:
PBL = with automatic format collimation system
Manual = Without automatic format collimation system
(3) Ready = ready for operation
(4) Display of width and height of collimated x–ray field
(5) Display of film–focus distance (SID)
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
