The safety latches will reset to prevent accidental spreading of the handles.
Check that BOTH handles have positive engagement by pulling on the foot rest.
In case of any difficulties or doubts about the foot rest condition, call a qualified
technician.

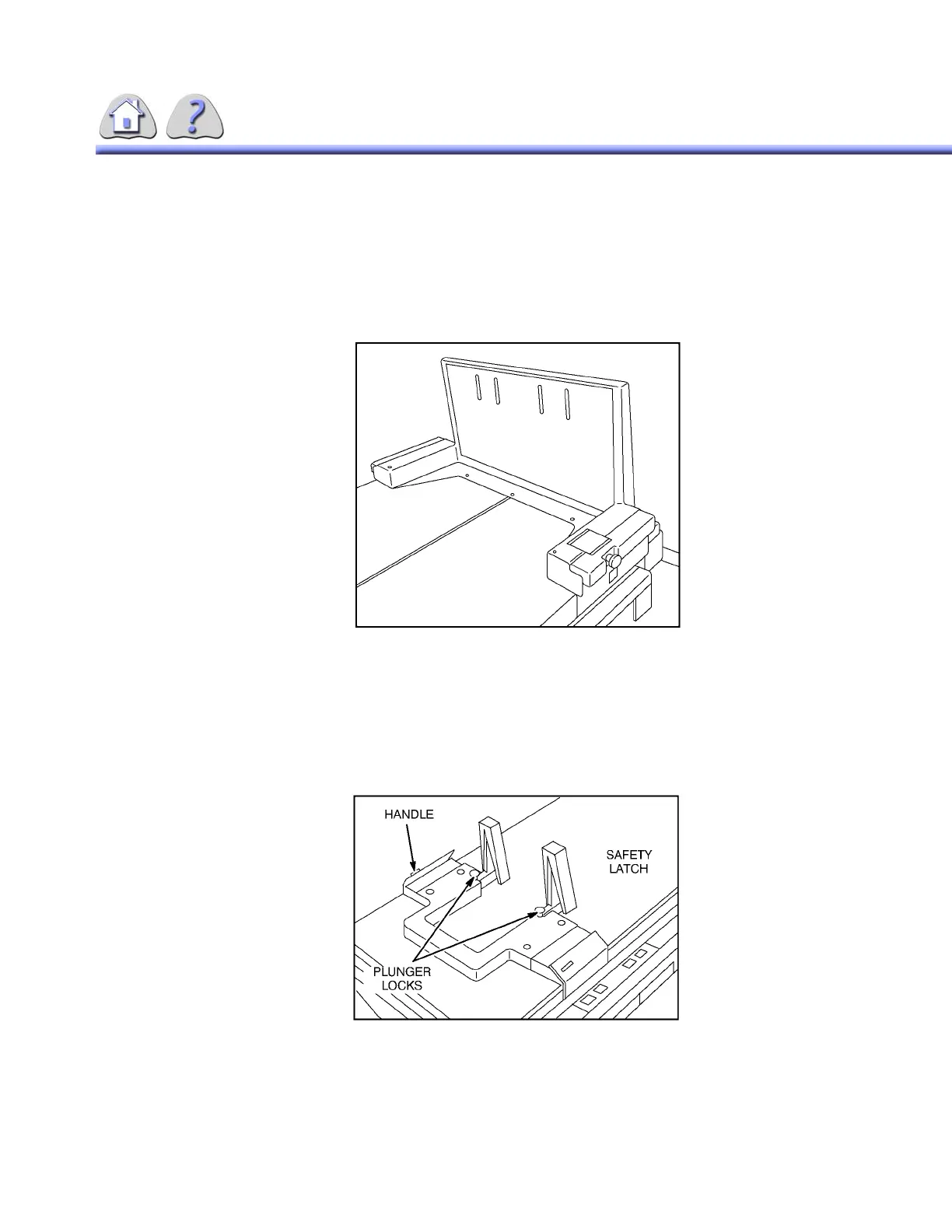

ILLUSTRATION 2-3
FOOT REST
5-12Shoulder Rest
The shoulder rest (ILLUSTRATION 2-4) is engaged on the table top in the same
manner as the foot rest. The plunger locks permit adjustment of the pad position
in 1/2” increments.
ILLUSTRATION 2-4
SHOULDER REST
FOR TRAINING PURPOSES ONLY!
