2-5Arm Board (Optional)
The arm board (ILLUSTRATION 12-6) supports the patient’s arm during catheter-
ization or other intravenous procedures and attaches over all but the middle of the
table top.
To install the arm board on the table top:
1. Check that the lock lever (on underside) is turned so that its eccentric hub is
withdrawn into the recess opposite the key on the clamping surface.
2. Back out the clamping screws as required.
3. Engage the arm board on the table by tilting it downward so the key can hook
into one of the slots on the underside of the top frame.
4. Then raise it up and firmly tighten the two clamping screws.
5. Turn the lock lever a sufficient amount to obtain a snug fit. The arm board may
be pivoted to any desired angle.
6. To install the shield, insert the two prongs in either set of holes adjacent to the
clamping screws.

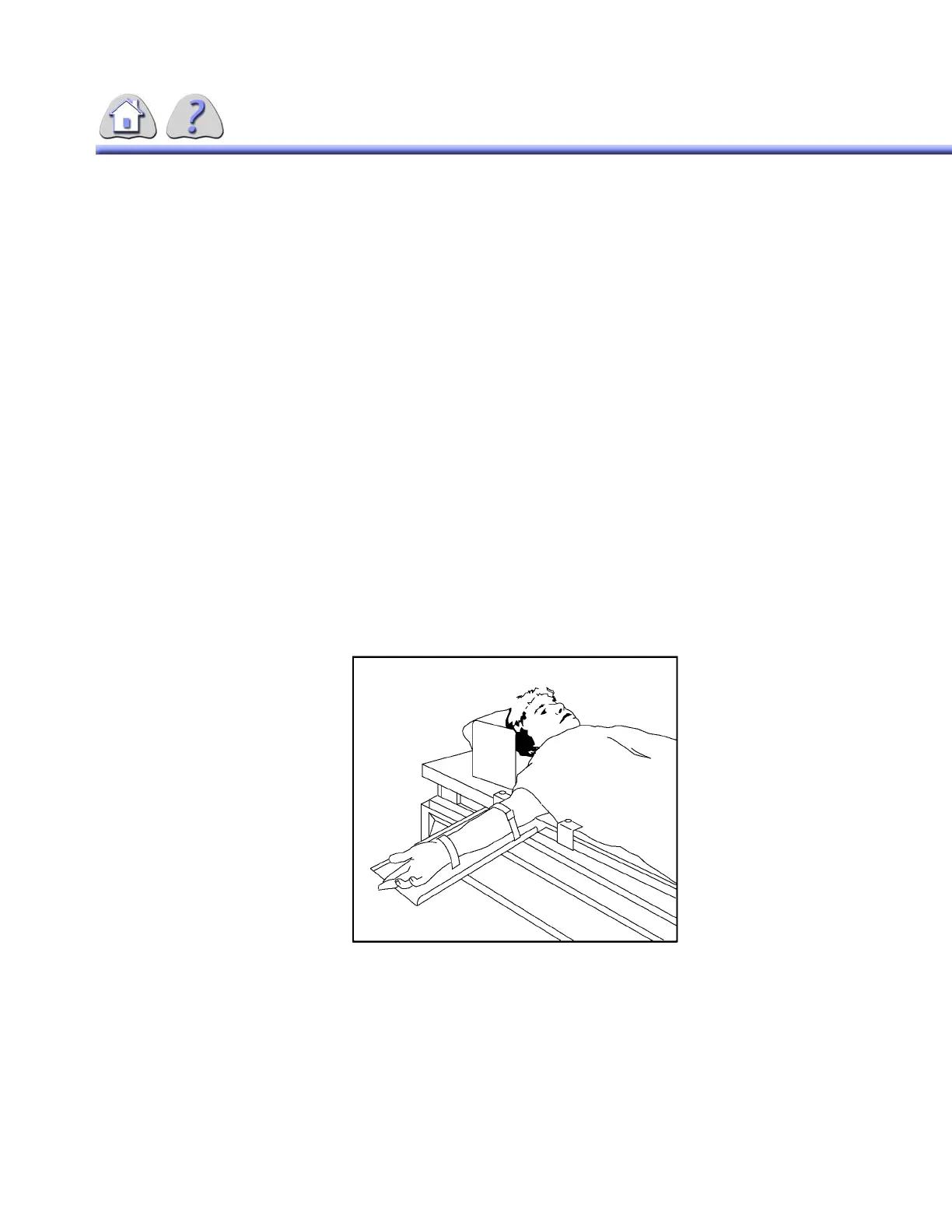

ILLUSTRATION 12-6
ARM BOARD
