om 5184516-100 Rev. 5 8-12

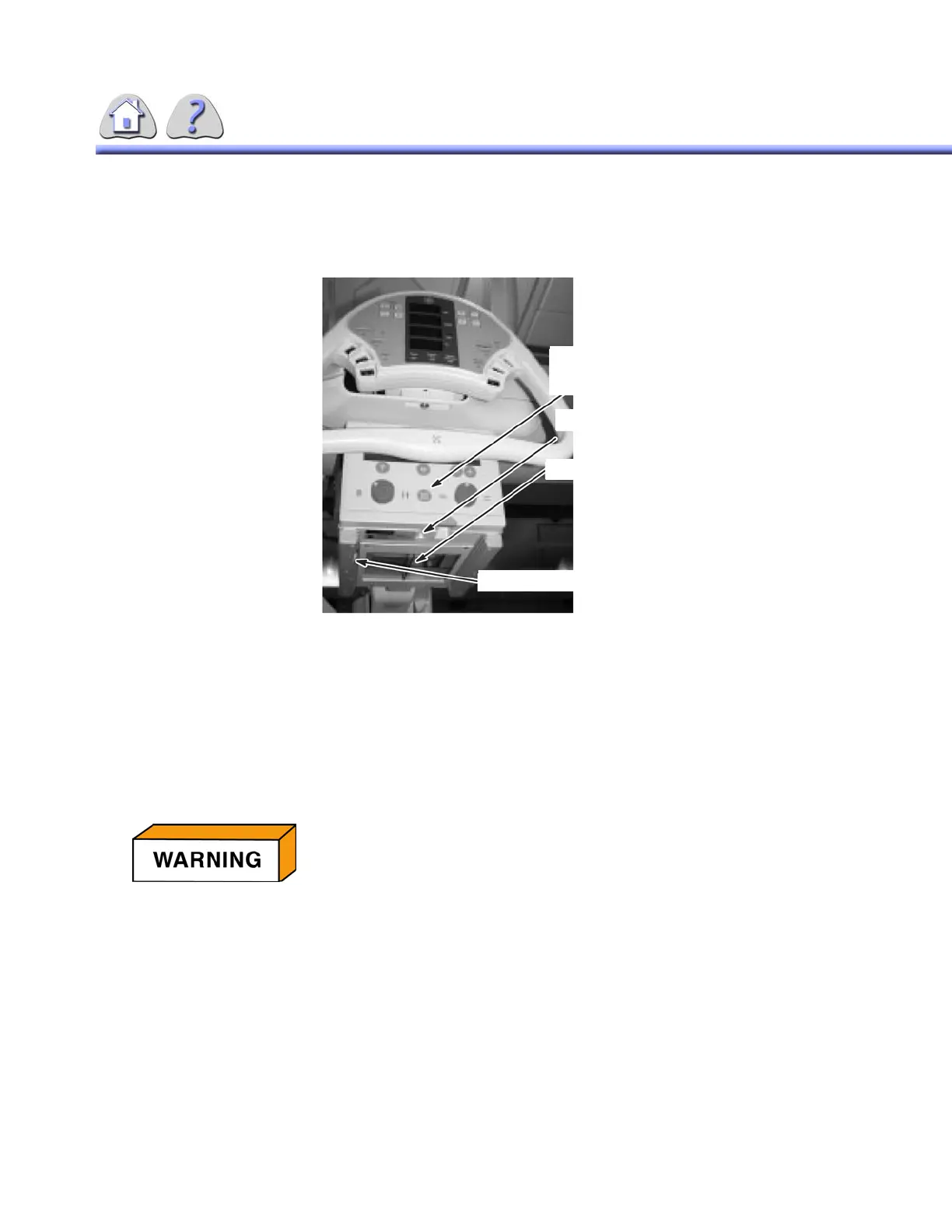

2-3Bottom View of the Collimator
ILLUSTRATION 8-10
AUTOMATIC COLLIMATOR BOTTOM VIEW
2-4Linear LASER Light Localizer
The linear LASER light localizer provides the axis mark for longitudinal centering
which is lined up with the centering mark on the handle of the cassette loading
device.
The linear LASER light localizer for projection of the centering cross is switched
on and off with push button (4) on the control panel.
– Automatic cutout of this function is effected via an internal time switch.
2-5Centering Cross
The centering cross is used to display the longitudinal and transverse axies of the
exposure field on the cassette or directly on the patient.
The full–field light localizer for projecting the centering cross is switched on and
off with push button (4) on the control panel.
– Automatic cutout is performed via an internal time switch.
The linear and full–field light localizers can not be switched separately.
LASER RADIATION
PEAK POWER 1MW/WAVE LENGTH 540–700 NM/CLASS II LASER
PRODUCT
DO NOT STARE INTO BEAM!
WHEN YOU SWITCH ON THE LINEAR LASER LIGHT LOCALIZER,
TAKE CARE THAT NO PERSON LOOKS DIRECTLY INTO THE LASER
TO AVOID EYE INJURIES OR IMPAIRED VISION.
On/Off switch (4) for
illumination of full–field and
linear light localizer.
Linear LASER light localizer.
Centering cross for positioning.
Locking lever for accessories.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
