om 5184516-100 Rev. 5 8-7
1-8Over Head Ceiling Suspension User
Interface
The in–room user interface allows the operator to make receptor type, kV and
mAs selections without returning to the System Console. Positioning of the X–ray
tube can be performed with one or two–hands. The locks and lock releases on the
user interface make positioning the X–ray tube easy.
NOTE: Changing exposure parameters or receptors on either system console or OTS
console will result in a same change to both consoles.

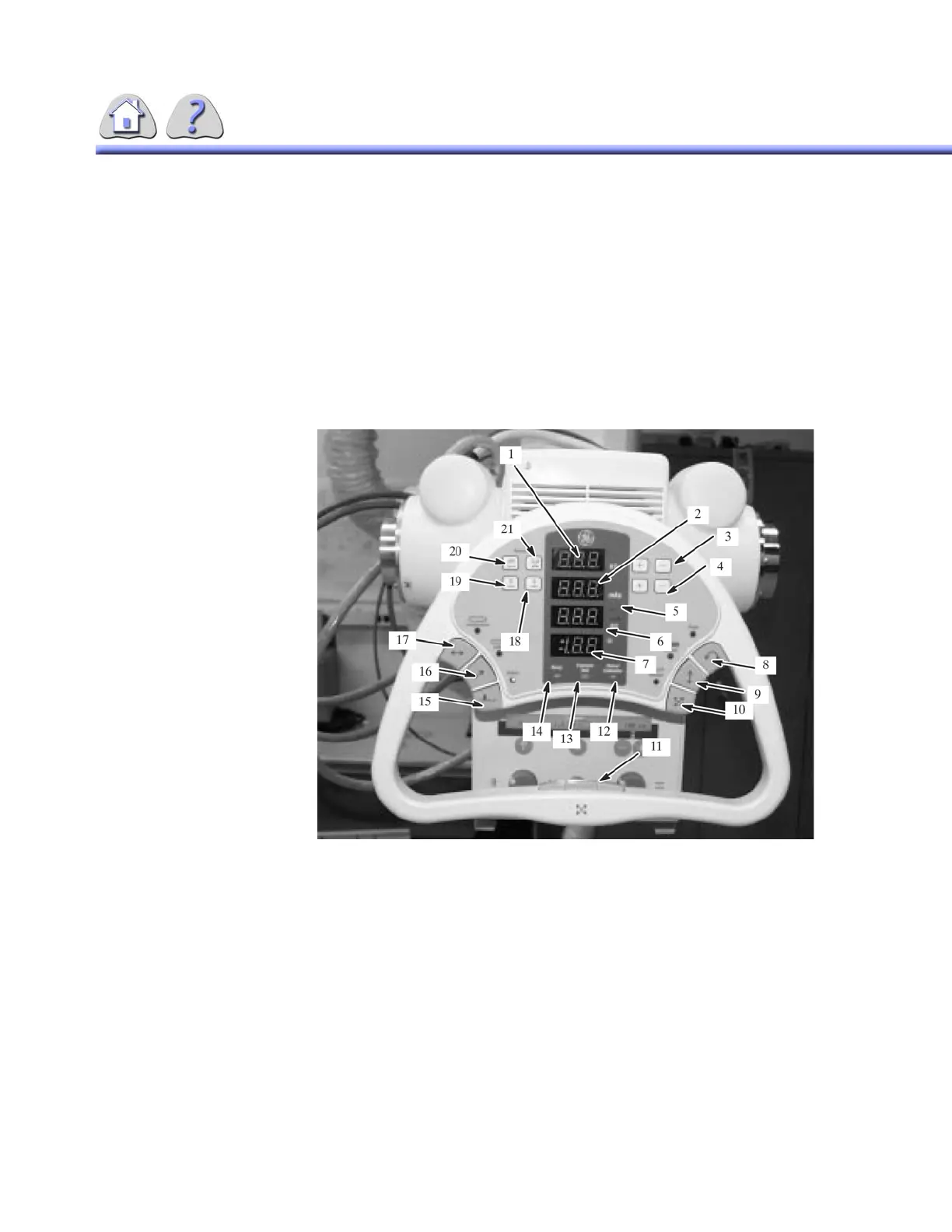

ILLUSTRATION 8-6
OTS CONSOLE
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
