SECTION 2
OPTIONAL TABLE ACCESSORIES
2-1Shoulder Rest
The shoulder rest (Illustration 10–3) is engaged on the table top in the same
manner as the foot rest. The plunger locks permit adjustment of the pad position
in 1/2” increments.

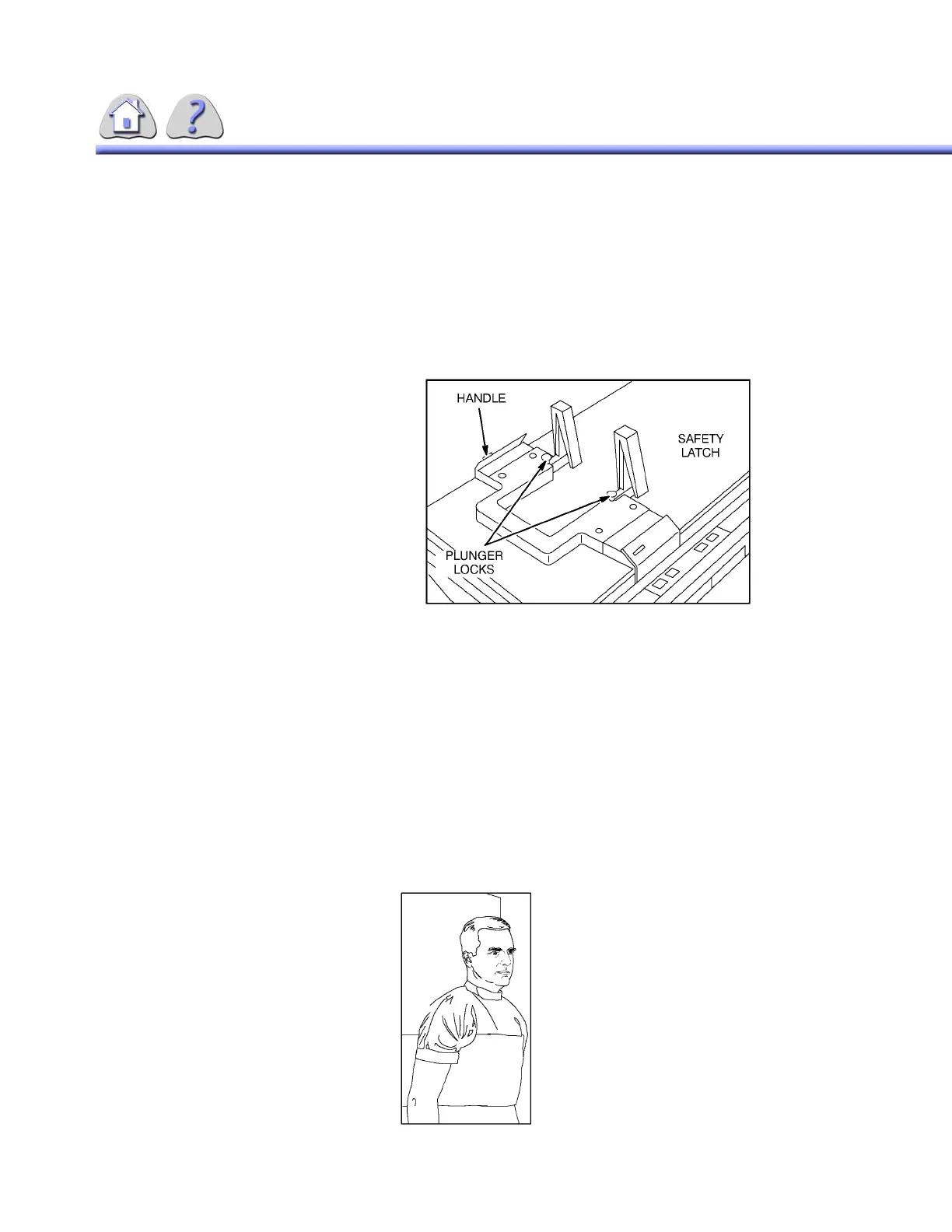

ILLUSTRATION 12-3
SHOULDER REST
2-2Compression Device
The compression device is not intended to be used for patient support or restraint.
It may be engaged at any point along the table top and consists of the front
bracket with ratchet, roller and band, and the rear anchor bracket. To use:
1. Position the patient
2. Engage the brackets on the front and rear edges of the table top.
3. Pull up the ratchet handle, pull out the band and hook the rod on the rear
bracket.
4. Tighten the band by “cranking” the ratchet handle i.e., move it back and forth.
5. Release the patient by lifting up the ratchet handle and disengaging the band.
ILLUSTRATION 12-4
COMPRESSION DEVICE
