om 5184516-100 Rev. 5 10-7

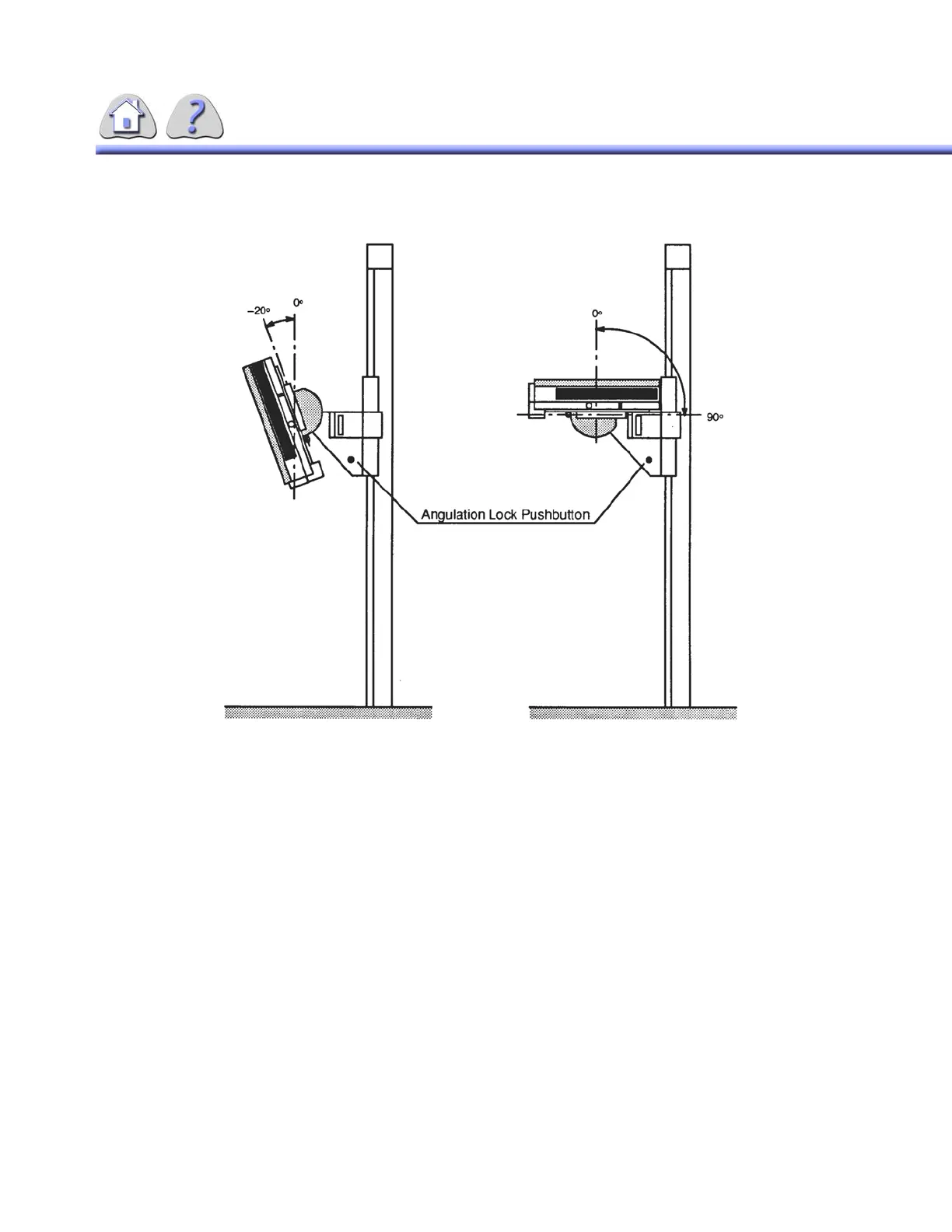

ILLUSTRATION 10-5
BUCKY ANGULATION
3-6Hinged Front Panel
A hinged front panel enables easy access to the Bucky grid and mechanism.
Refer to ILLUSTRATION 10-6.
To open the panel, turn the thumb screws on the bottom of the panel then lift the
panel up. A safety latch on the right can be used to maintain the panel open.
FOR TRAINING PURPOSES ONLY!
