om 5184516-100 Rev. 5 7-14
SECTION 2
OPERATOR CONTROLS AND DISPLAYS
2-1Operator Control Locations

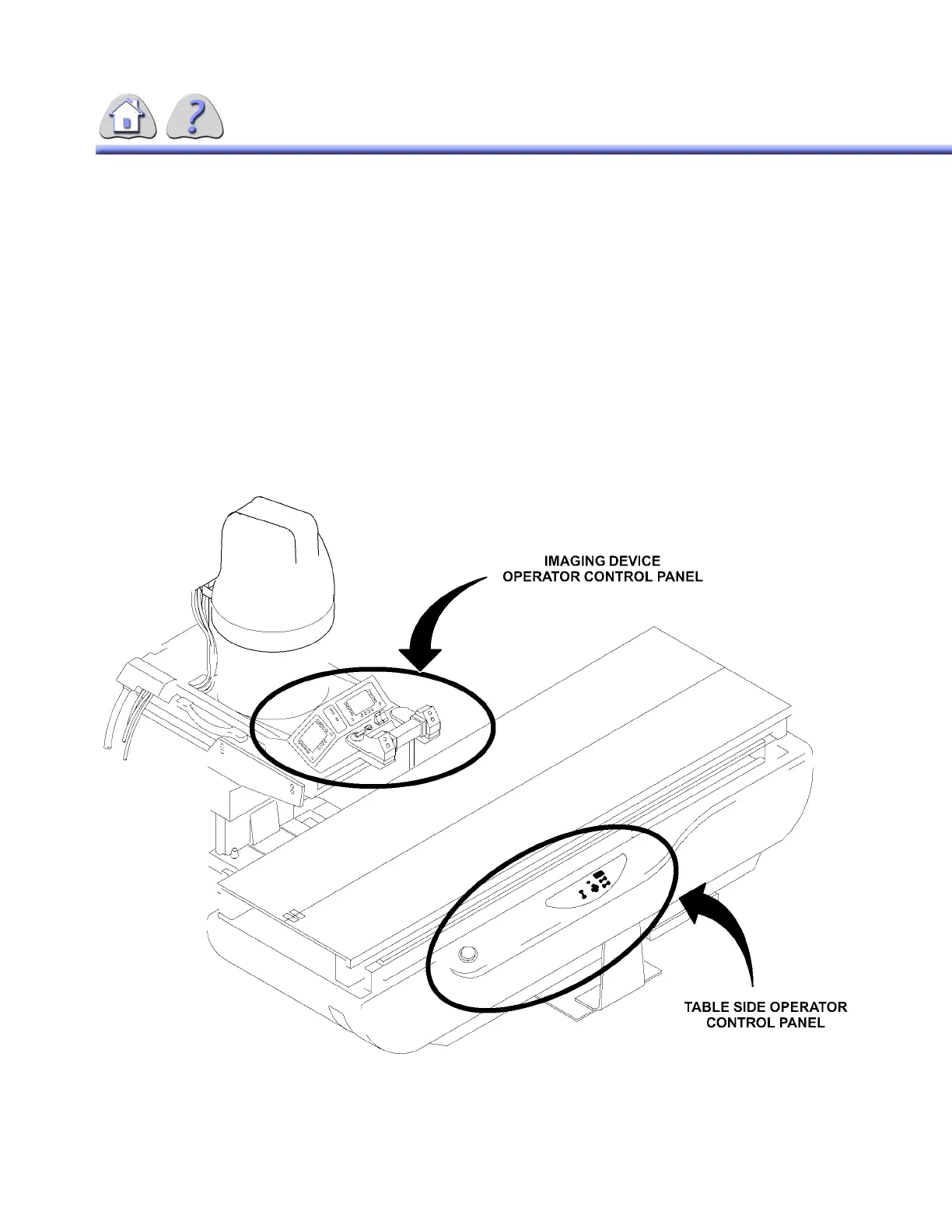

See ILLUSTRATION 7-11.
All Table and Imaging Device operator controls, displays, and indicators are
located in two basic operator control areas:
• Table Side Control Panel
• Imaging Device Operator Control Panel
ILLUSTRATION 7-11
INTELLIGENT DIGITAL DEVICE
A TABLE OPERATOR CONTROL PANEL LOCATIONS
FOR TRAINING PURPOSES ONLY!
