om 5184516-100 Rev. 5 10-1
CHAPTER 10
SG–100 VERTICAL BUCKY STAND
SECTION 1
INTRODUCTION
The SG-100/SG-120 system is defined as a Tilting/Rotating Vertical Bucky Stand
suitable for providing common radiographic examinations, including chest films
and oblique angle radiography. Combined with suitable X-ray tube supports,
tubes and generators, the SG-100/SG-120 is able to provide vertical and horizon-
tal off-table radiography.
The SG-100/SG-120 allows off-table radiographies of skull and spine in horizontal
and vertical attitudes and a variety of radiographies with a patient standing,
recumbent, sitting on a wheelchair, or on a stretcher.

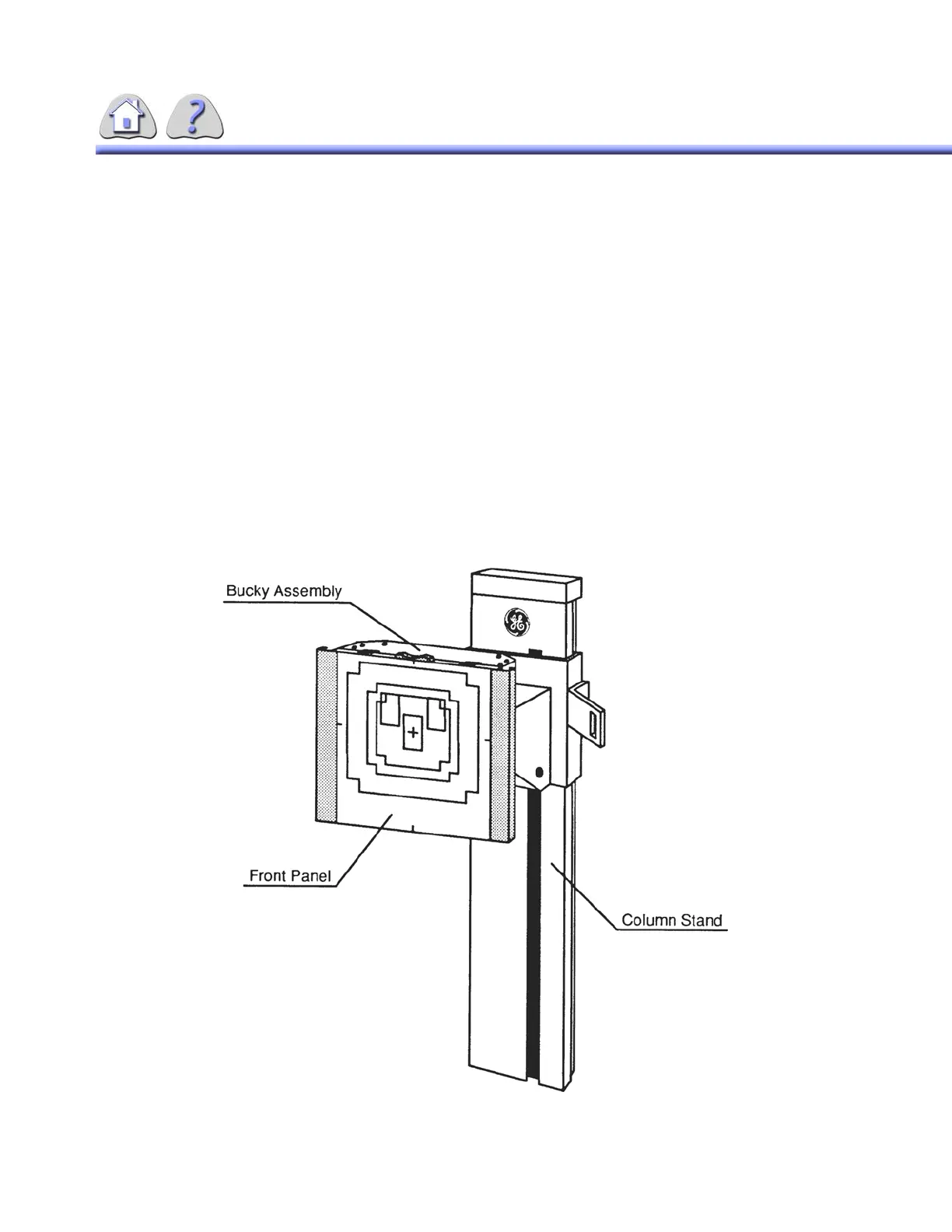

ILLUSTRATION 10-1
Example, SG–100 Shown
FOR TRAINING PURPOSES ONLY!
