om 5184516-100 Rev. 5 8-19
2-8Rotating the Collimator 90° Around the
Vertical Axis
Move locking lever on multileaf collimator toward front panel, i.e. toward the oper-
ator.

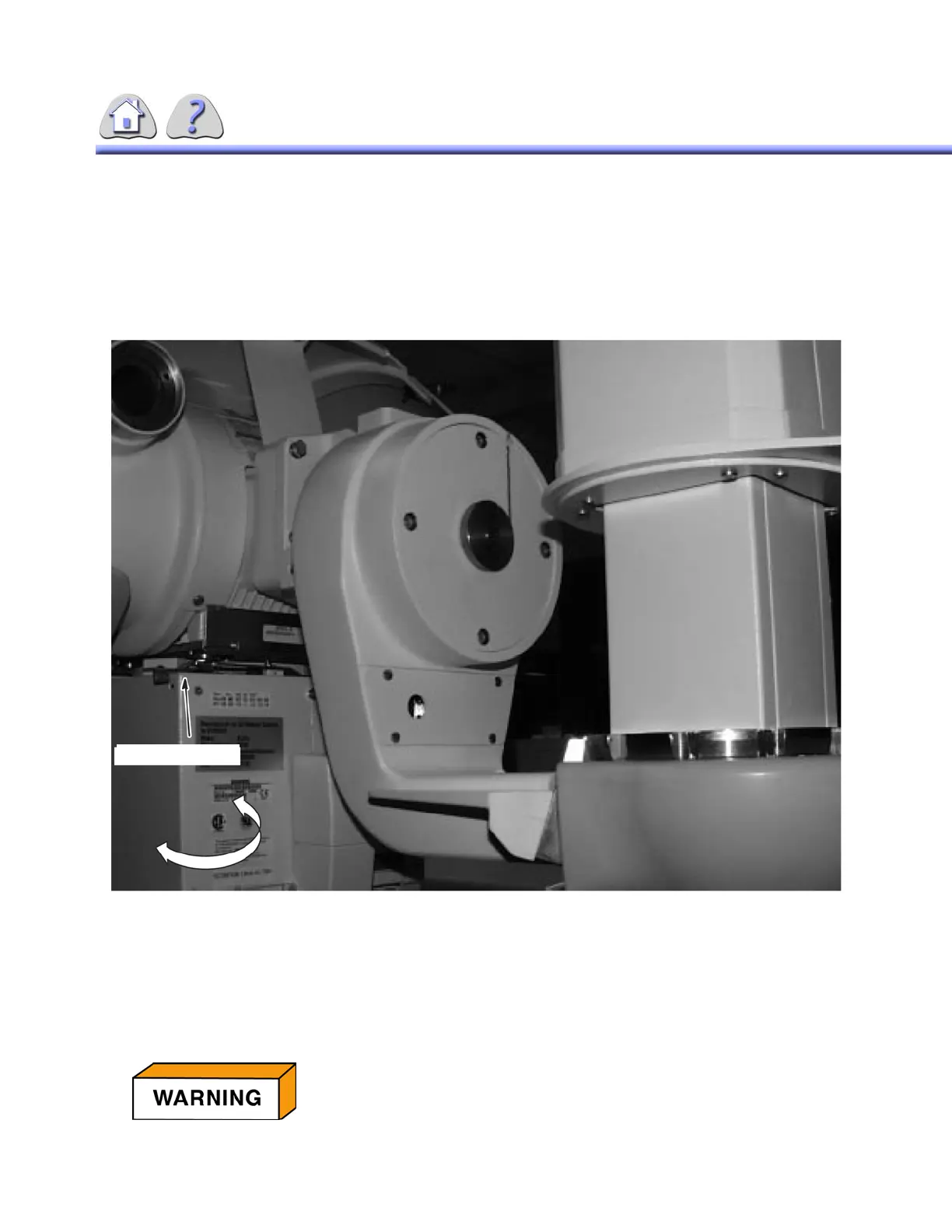

ILLUSTRATION 8-16
AUTOMATIC COLLIMATOR ROTATION LOCKING LEVER
Multileaf collimator in 0° lock–in position
– The 0° lock–in position of the multileaf collimator is released by actu-
ating the locking lever. The maximum rotation of the collimator up to
the CW or CCW stop is +/– 45 degrees.
Grasp collimator with both hands and turn it to the 0° lock–in position
ALWAYS GRASP MULTILEAF COLLIMATOR IN SUCH A WAY THAT
NEITHER HAND CAN BE PINCHED OR CRUSHED BETWEEN THE
HANDLES AND THE COLLIMATOR.
LOCKING LEVER
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
