SECTION 9
BRIGHTNESS / LEVEL
The Level (L) up / down arrow buttons are used to increase or decrease the image
brightness level. The numeric display of the Level setting is shown in the lower left
corner of the screen.
A setting of 512 represents the default brightness level. Press the DEFAULT but-
ton to return the Level setting to the default value depending on image type.

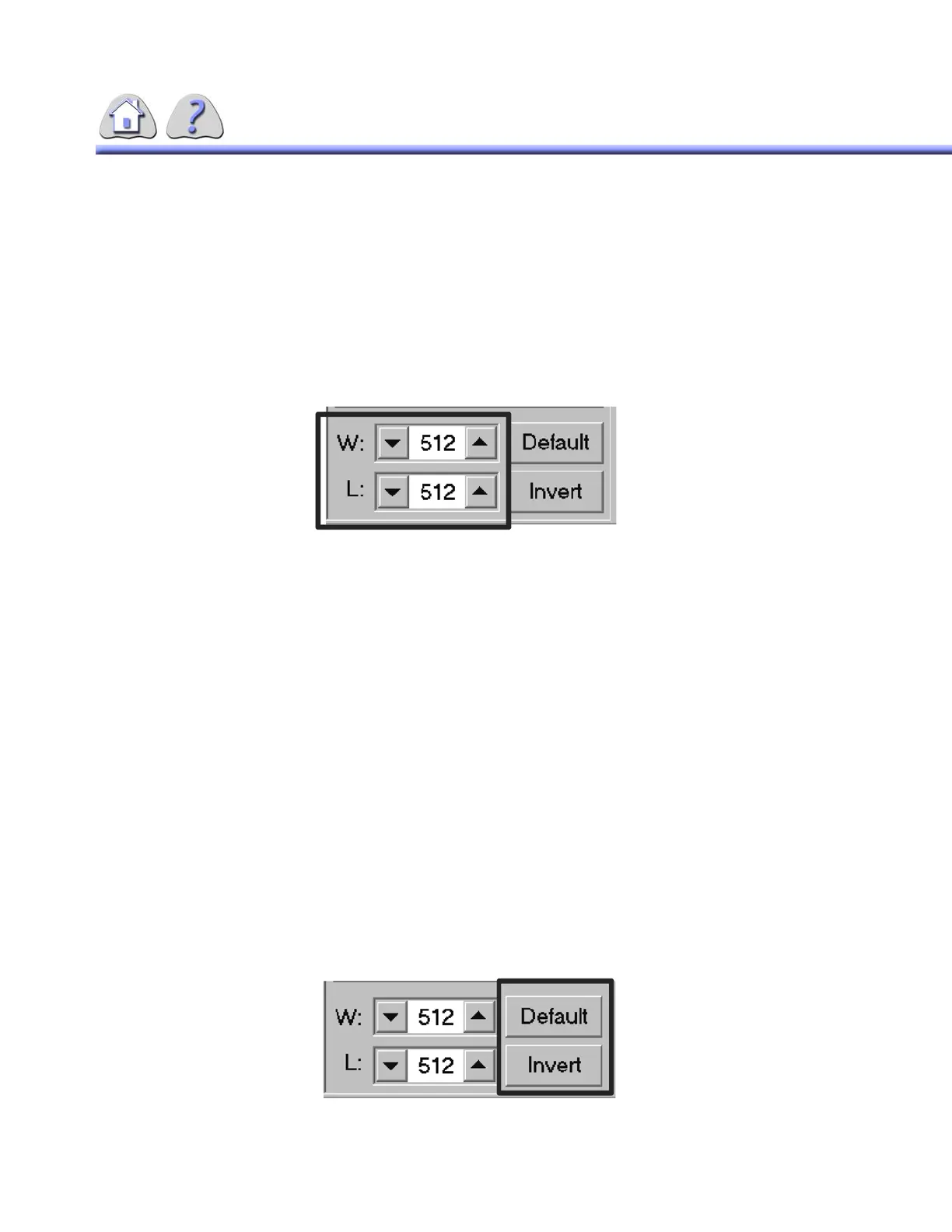

ILLUSTRATION 6-14
WINDOW & LEVEL PROCESSING BUTTONS
The Window and Level can also be adjusted by using the mouse. Place the
mouse cursor in the image area. Press and hold the left mouse button and move
the mouse. Vertical motion adjusts the Level and horizontal motion adjusts the
Window.
SECTION 10
IMAGE INVERT
The INVERT button changes the polarity of an image from a positive image into a
negative image or vice versa.
SECTION 11
DEFAULT
The DEFAULT button sets Window, Level, and Image settings to preset parame-
ters depending on image type and the parameters entered in the Field Service
Systems Parameters file.
If you wish to change any of these default parameters, contact your Field Service
agent.
ILLUSTRATION 6-15
IMAGE & DEFAULT PROCESSING BUTTONS
FOR TRAINING PURPOSES ONLY!
