om 5184516-100 Rev. 5 10-5

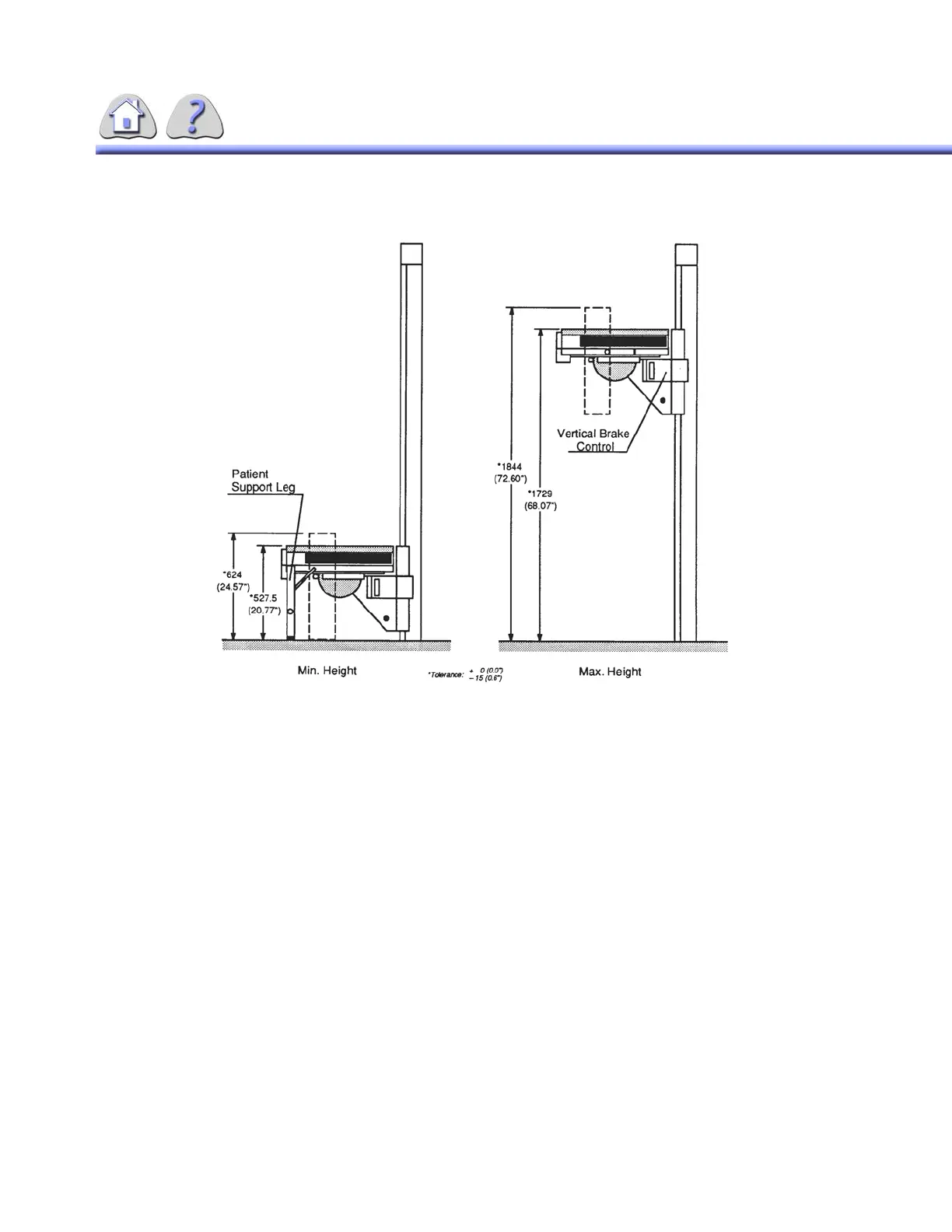

ILLUSTRATION 10-3
VERTICAL POSITIONING
3-4Bucky Rotation
The Bucky can be rotated from 0° to 180°. A rotation lock, located behind the
Bucky, holds the Bucky in position. Refer to ILLUSTRATION 10-4.
To change position release the lock lever, rotate the Bucky to the desired position
and put the lock lever back into locked position. Depending on the model, the
Bucky can be rotated clockwise or counter-clockwise. The ILLUSTRATION 10-4
shows counterclockwise rotation.
The Bucky is designed to operate at 0° and 180° only.
FOR TRAINING PURPOSES ONLY!
NOTE: Once downloaded, this document is UNCONTROLLED, and therefore may not be the latest revision. Always confirm revision status against a validated source (ie CDL).
