IC200CHS014
Thermocouple Compensation Box-Style Interposing I/O Terminals
The Thermocouple Compensation Box-Style Interposing I/O Terminals (IC200CHS014)
interface a Connector-Style I/O Carrier to field wiring from thermocouples. The unit has a
connector for attaching a cable from the Connector-Style I/O Carrier and 36 box-style
terminals. It includes a built-in thermistor that provides Local Cold Junction Compensation
for thermocouple input measurements.
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Ambient 60C
CLASS I ZONE 2 GROUP IIC T4
Ex nA IIC<to<60C
Ex nV II T4 Demko No. 98Y.125014
MADE IN USA
IC200CHS014
I/O INTERPOSING
BOX THERMOCOUPLE

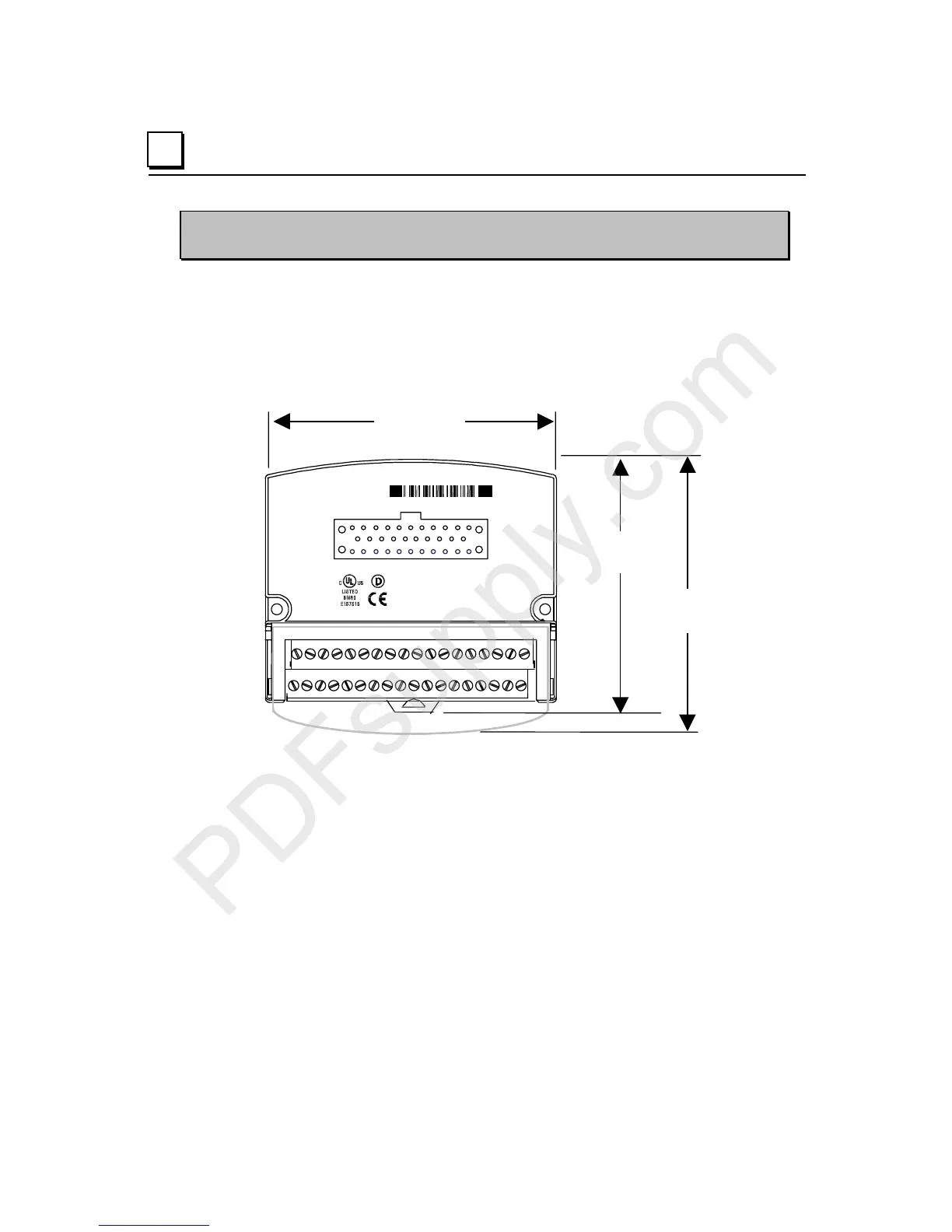

110.5mm
(4.35in)
97.8mm
(3.85in)
105.4mm
(4.15in)
Each terminal accommodates one solid or stranded AWG #14 (avg. 2.1mm
2
cross section)
to AWG #22 (avg. 0.36mm
2
cross section) wire, or two wires up to AWG #18 (avg.
0.86mm
2
cross section). A clear protective hinged door covers the wiring terminals. The
printed wiring card provided with each I/O module can be folded and inserted in this door.
