GFK-1504K Appendix A Panel Mounting Dimensions A-5

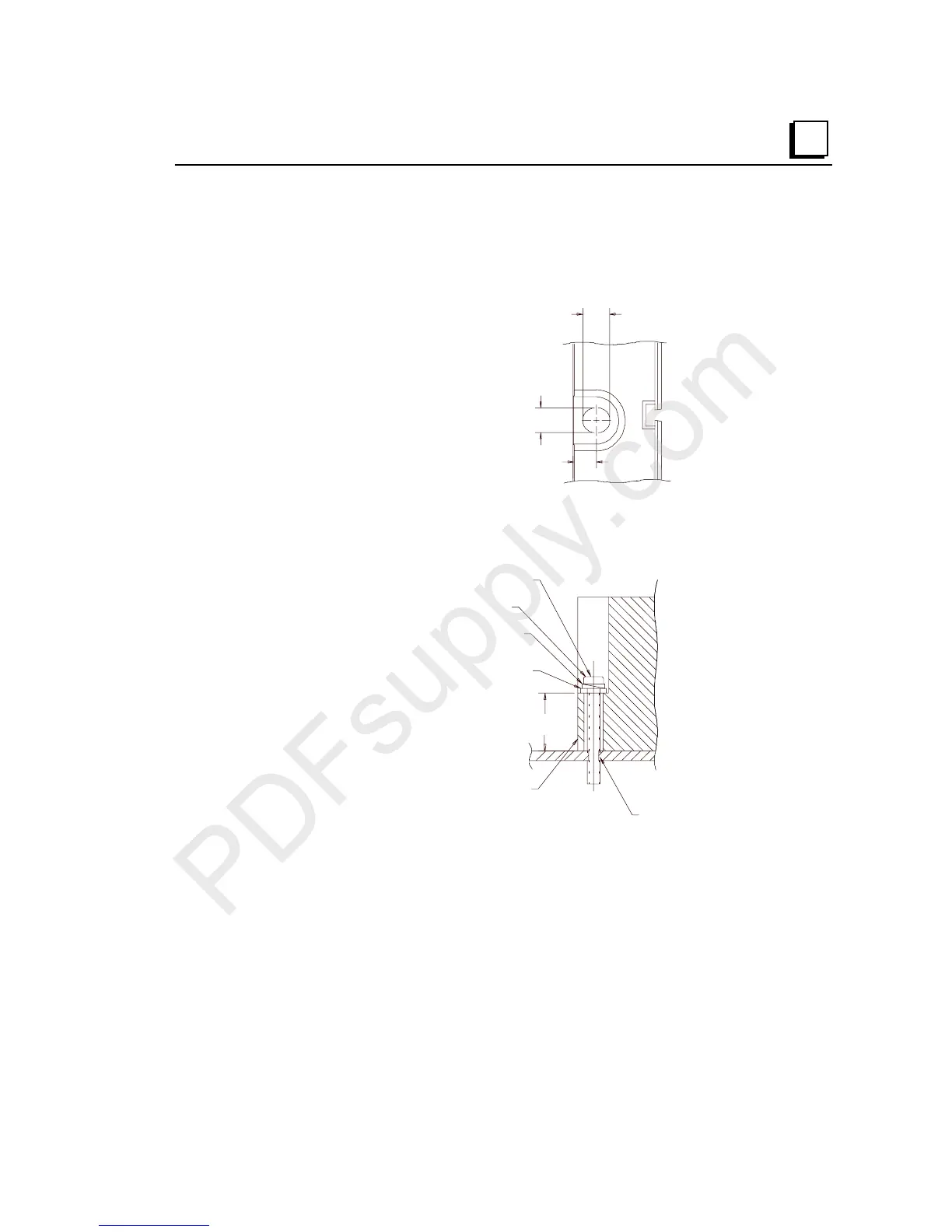

Panel-Mounting Details

In installations where excessive vibration is a factor, the DIN-rail mounted carriers should

also be installed on a panel. Mounting dimensions are shown on the following pages.

.200in

5.1mm

.170in

4.3mm

170in

4.3mm

2. 1.1-1.4Nm (10-12 IN. LBS) OF TORQUE SHOULD BE

TO M3.5 (#6-32) STEEL SCREW THREADED INTO

MATERIAL CONTAINING INTERNAL THREADS AND

HAVING A MINIMUM THICKNESS OF 2.4mm (.093 IN).

NOTES:

1. TOLERANCES ON ALL DIMENSIONS ARE ±0.1mm (0.005IN) NON-CUMULATIVE.

SEE NOTE 2.

M3.5 (#6) SCREW

.62in REF

15.9mm

SPLIT LOCK

WASHER

FLAT WASHER

CARRIER

TAPPED HOLE

IN PANEL
