GE VersaMax User Manual

GFK-1504K Chapter 5 Interposing Terminals and Auxiliary I/O Terminal Strips 5-21
5

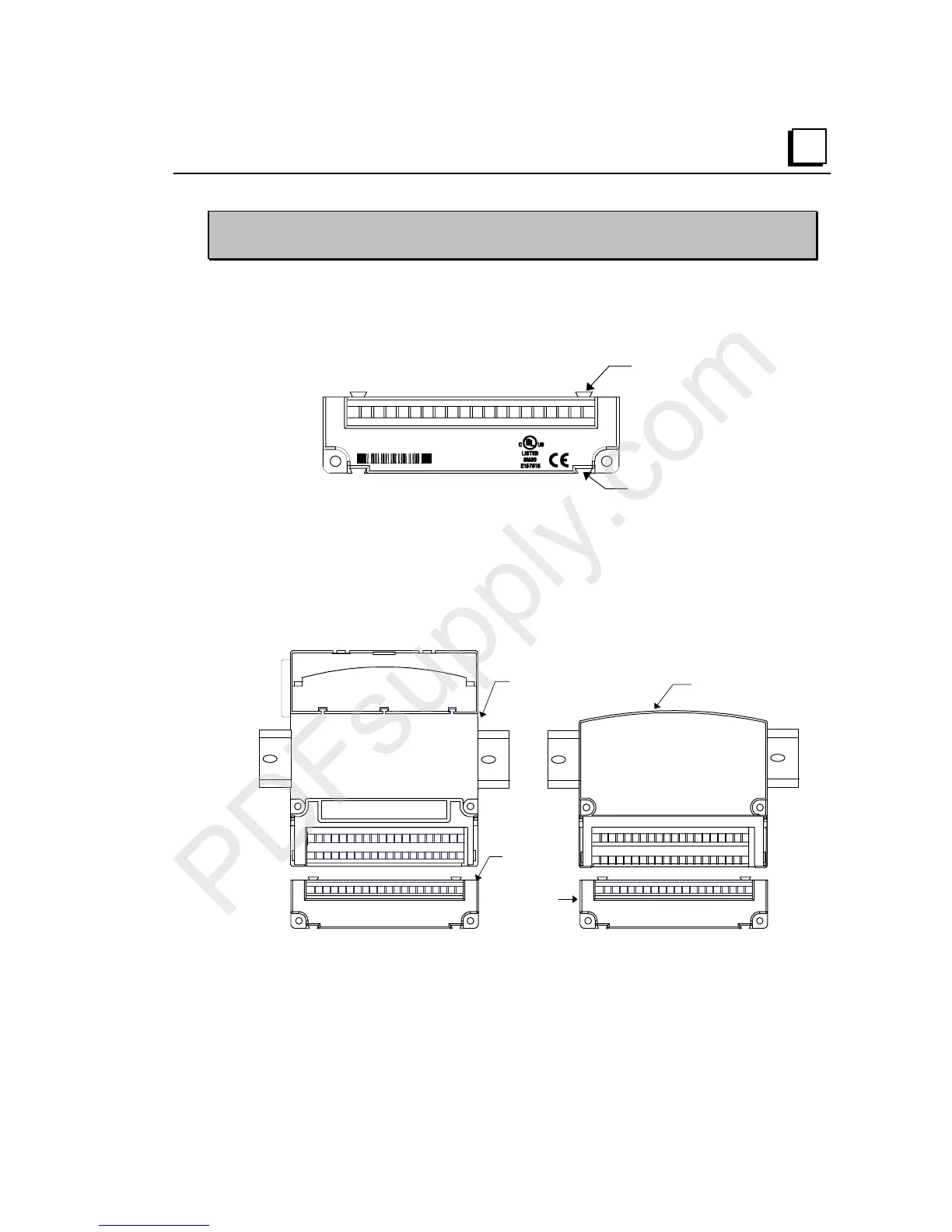

IC200TBM005
Spring-Style Auxiliary I/O Terminal Strip
The Spring-Style Auxiliary I/O Terminal Strip (IC200TBM005) has 18 internally -bussed
spring-clamp style wiring terminals. It can be used to provide extra field wiring
connections for terminal-style I/O Carriers and Interposing I/O Terminals.
Tabs for
Attaching to
previous carrier
Slots for
attaching next
terminals
IC200TBM005
I/O CARRIER
AUXILIARY SPRING
MADE IN USA
Mounting tabs on the upper edge of the Auxiliary I/O Terminal Strips insert in slots on the
bottom of the I/O Carrier or Interposing I/O Terminals for fast, convenient installation.
Additional Auxiliary I/O Terminal Strips can be connected in the same way. The Auxiliary
I/O Terminal Strip also has panel-mount holes for added stability in high-vibration
locations.
CLASS I ZONE 2 Ex nA IIC T4 OC Ta
Ex nV II T4 Demko
Terminal-Style
I/O Carrier
Auxiliary I/O
T
e
rmin
a
l
St
ri
p
Interposing
I/O Carrier
Auxiliary I/O
Terminal Strip
The Auxiliary I/O Terminal Strip can accommodate current levels up to 8 Amps and
voltage up to 264 VAC. Voltage levels up to 300VAC will not damage the unit.
There is no electrical connection from the Terminal-Style I/O Carrier or Interposing I/O
Terminals to the Auxiliary I/O Terminal Strip; any necessary electrical reference must be
provided.
