IC200ALG328
Analog Output Module, 13 Bit Current, 12 Channels

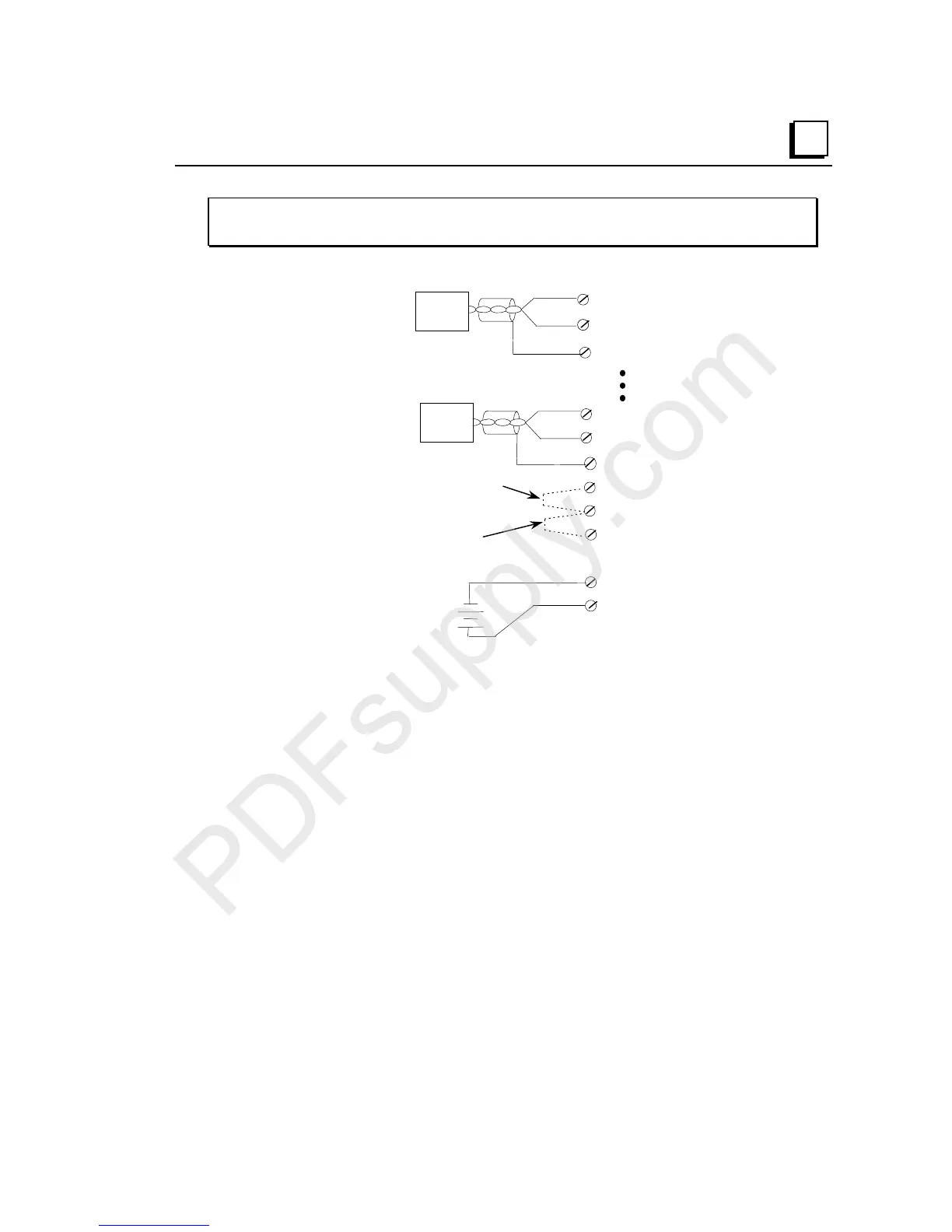

Wiring Example
IOUT 4
RET 4
Range Jumper (B1)
JMP RET
(
B2
)
IOUT 1
RET 1
Shield
Shield
Load
Load
Jumper installed =0 to 20mA
no jumper = 4 to 20mA
Hold Jum
p
er
(
B3
)
Field Power
Field Return
-
+
24VDC
Jumper installed =0/4mA
no jumper = hold last state
Cable Shield Connections
Shielded twisted pair cable is recommended for all of the analog channel connections.
If the module is installed on a Terminal-style I/O Carrier (IC200CHS001, 002, or 005) or
a Compact Terminal-style I/O Carrier (IC200CHS022, 025), the cable shield can be
connected directly to the carrier per the Field Wiring Table. An Auxiliary I/O Terminal
Strip (IC200TBM001, 002, or 005) can also be added to the Terminal-style I/O Carriers to
aid in grounding shields. Be sure to ground the Auxiliary I/O Terminal Strip as well if you
plan to use it for this purpose.
If the module is installed on a Connector-style I/O Carrier (IC200CHS003), the cable
shield can be connected directly to an Interposing Terminal (IC200CHS011, 012, 015).
Be sure to ground the Interposing Terminal. It is recommended to use a shielded
interposing cable as well between the Interposing Terminal and the Connector Base. A
custom shielded cable can be made using the Connector kit (IC200ACC302). In addition,
a custom shield braid can be wrapped around standard Interposing Cables (IC200CBL105,
110, 120, 230). If this approach is used be sure to ground the braid.
All cable shield connections should be connected to earth ground and be kept as short as
practical. The power cable does not need to be shielded.
