GE VersaMax User Manual

15-4 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
15
IC200ACC303
I/O Shorting Bar
Shorting Bars (part number IC200ACC303, quantity 2) can be a cost-effective solution for
providing additional bussed terminals for modules that include only one I/O board. The
shorting bar has a maximum current-carrying capacity of 2 Amps per point. See the
individual module descriptions to determine whether a shorting bar can be used for a
particular module.

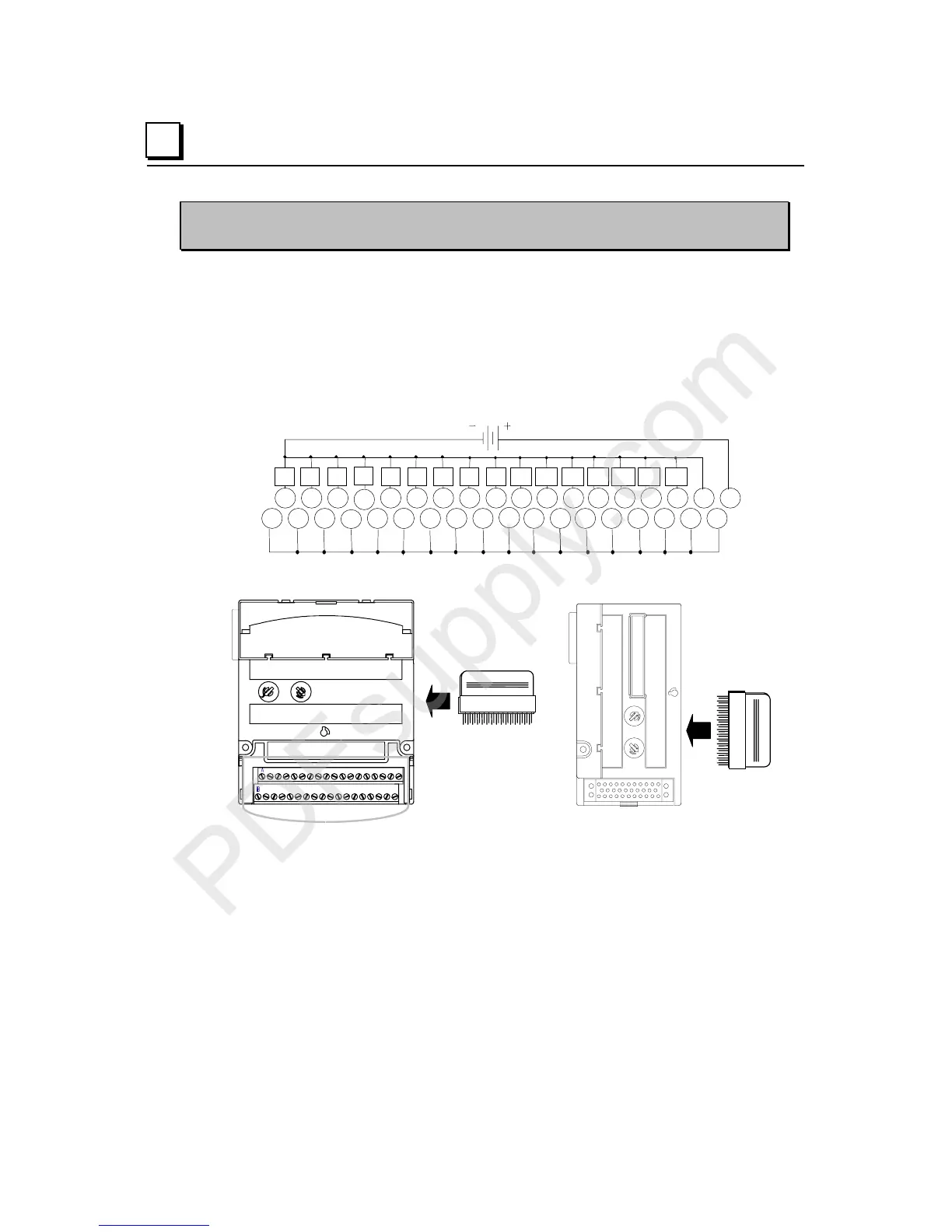

The figure below shows an example of how a Shorting Bar can be used to provide extra
field wiring connections for an I/O module.
A1 A2 A3
A4
A5 A6 A7 A8 A9
B1 B2 B3
B4
B5 B6 B7 B8 B9
A11 A12 A13 A14 A15 A16 A17 A18
B11
B12 B13 B14 B15 B16 B17 B18
B10
A10
Q1 Q2
Q3
Q4
Q5 Q6 Q7 Q8 Q9 Q10 Q11 Q12 Q13 Q14 Q15 Q16
A Shorting Bar must be installed
directly on the carrier
before installing the I/O module.
A B
A
B
PDFsupply.com

GE VersaMax Specifications

General

Programming Software	Proficy Machine Edition
Type	Programmable Logic Controller (PLC)
Communication	Ethernet, Serial, Profibus
Power Supply	24V DC or 100-240V AC
Programming Languages	Ladder Logic, Structured Text, Function Block Diagram
Communication Ports	Ethernet, RS-232, RS-485
Operating Temperature	0°C to 60°C (32°F to 140°F)
Certifications	UL, CE
