2-34 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
2
Using Shorting Bars
Shorting Bars (part number IC200ACC303, quantity 2) can be a cost-effective solution for
providing additional bussed terminals for modules that include only one I/O board. The
shorting bar has a maximum current-carrying capacity of 2 Amps per point. See the
individual module descriptions to determine whether a shorting bar can be used for a
particular module.

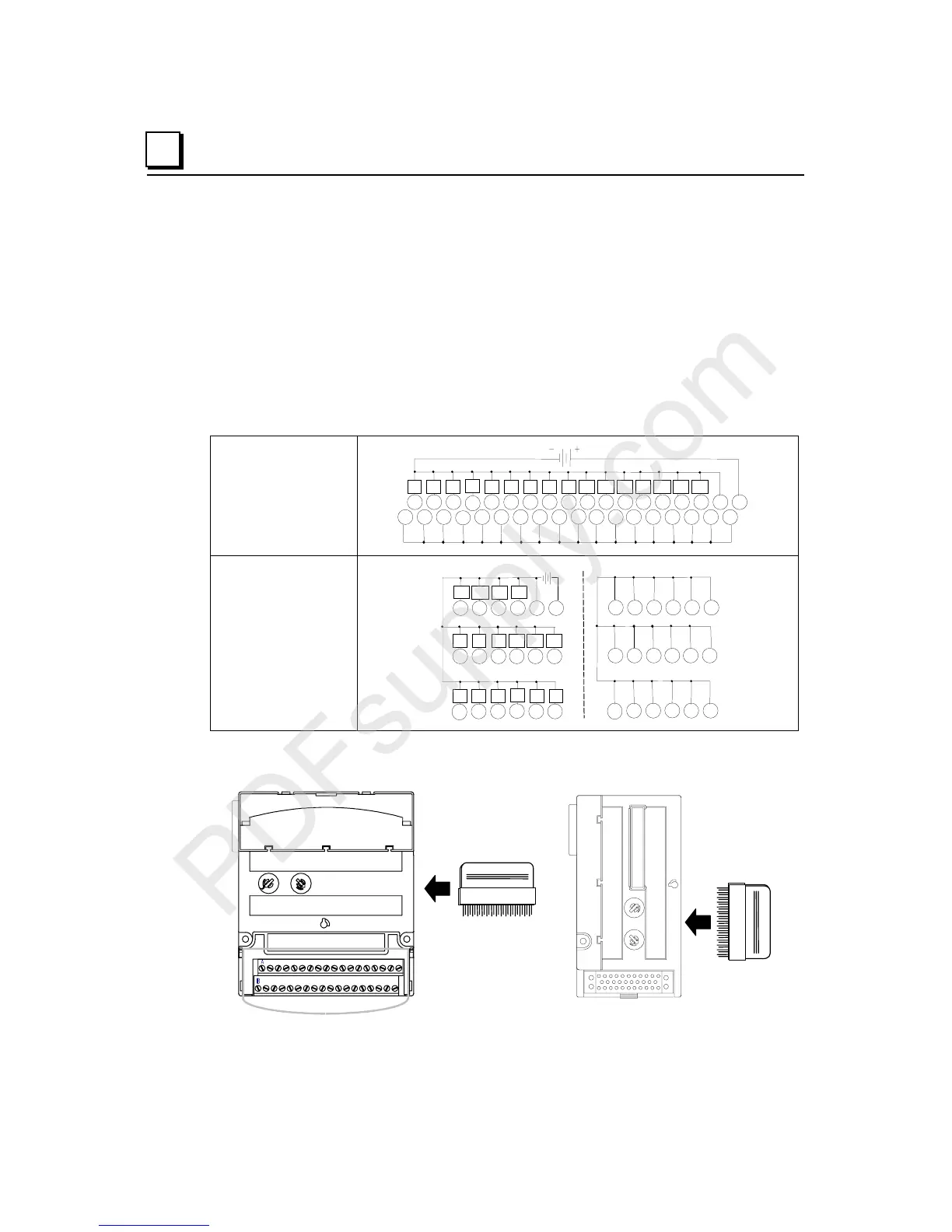

The figures below show how a Shorting Bar can be used on a 2-row or 3-row carrier to
provide extra field wiring connections for an I/O module.
Example Connection
for Carriers with Two
Rows of Terminals
123
4
56789
11
12 13 14 15 16 17 18
10
Q1
Q2 Q3
Q4
Q5 Q6 Q7 Q8
Q9 Q10 Q11 Q12 Q13 Q14 Q15 Q16
123
4
56789
11
12 13 14 15 16 17 18
10
A
B
Example Connection
for Carriers with
Three Rows of
Terminals
123456
13
14 15 16
17
18
A
789 111210
B
123456
13
14 15 16 17 18
789 111210
Q1
Q2 Q3
Q4
Q5 Q6
Q7 Q8 Q9 Q10 Q11 Q12
Q13
Q14 Q15
Q16
+
-
A Shorting Bar must be installed
directly on the carrier
before installing the I/O module.
A B
A
B
