15-2 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
15
IC200ACC301
I/O Filler Module

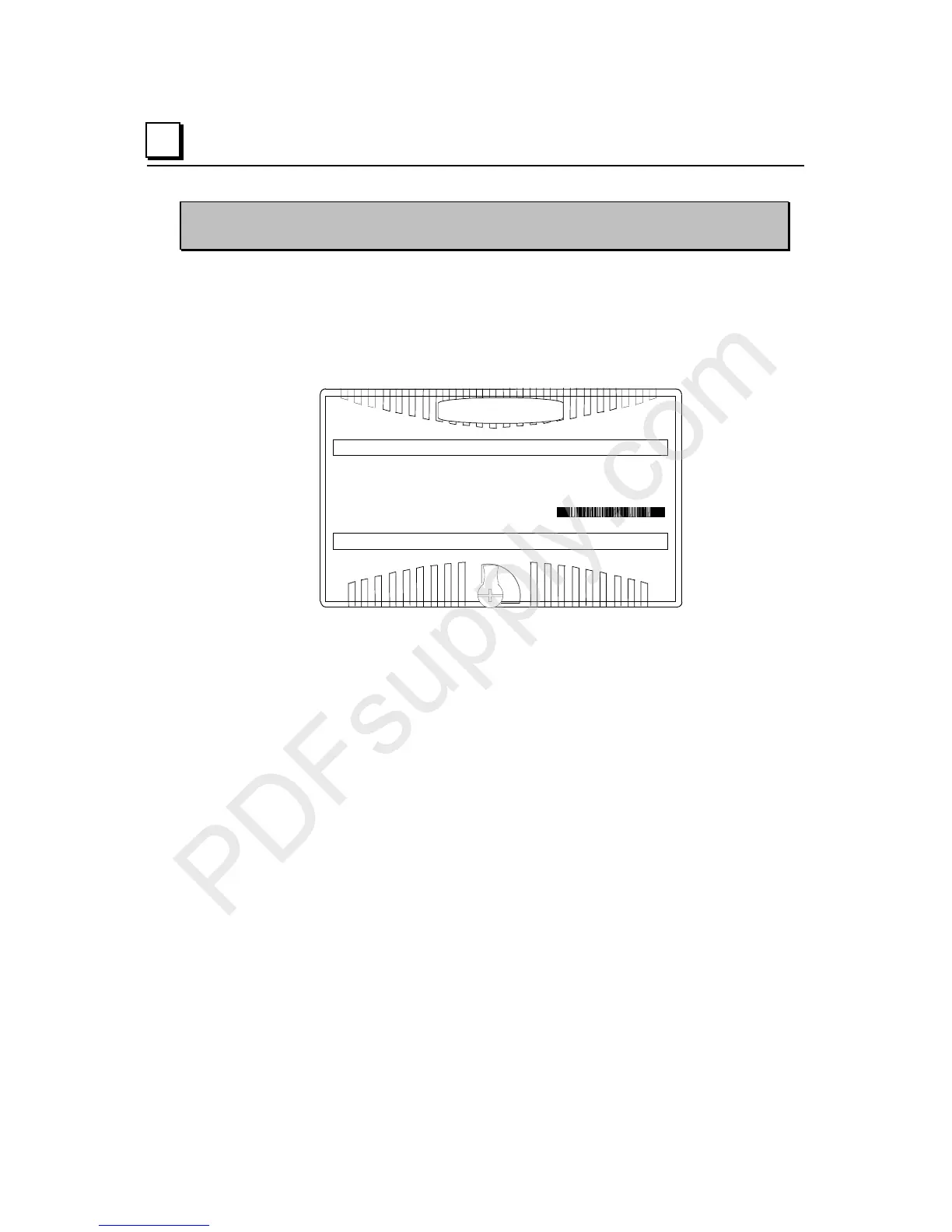

The VersaMax I/O Filler Module (IC200ACC301 can be used as a placeholder for a future
I/O module. The I/O Filler has no electrical components. It installs on any VersaMax I/O
Carrier in the same way as an I/O module. The carrier is not wired to field devices. The
I/O Filler Module protects the carrier electronics against contamination and mechanical
damage and also gives the installed equipment a finished appearance.
1234567 831
FILLER
NO ELECTRONICS
The CPU or NIU at the head of the equipment sees the carrier where the I/O Filler Module
is installed as an “empty” slot. In a VersaMax PLC system that will be configured using
the configuration software, the I/O Filler Module and its carrier can be located in any I/O
module slot. However, in a system that will be configured using autoconfiguration, the I/O
Filler Module and its carrier must be located in the last slot, because autoconfiguration
stops at the first empty slot.
