GFK-1504K Chapter 2 Installation Instructions 2-37
2
Installing a Module on a Carrier
Note: Before installing a module in an operating system, refer to the information below
about Module Hot Insertion and Removal.
The latch on the module must be in the unlocked position as illustrated to install a module
on its carrier.

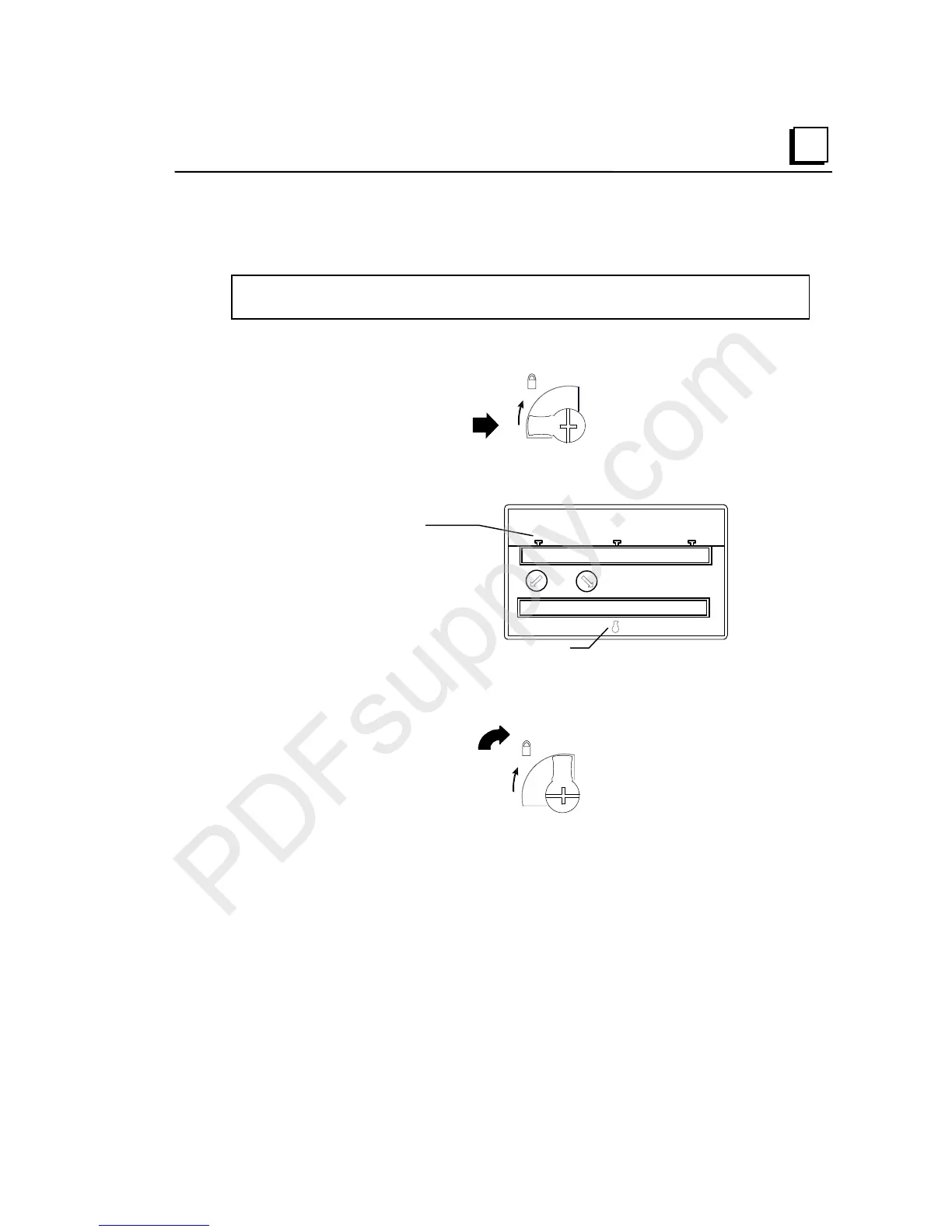

Align the three T-shaped projections on the module side with the slots on the carrier and
align the latch post on the module with the hole on the carrier.
Alignment
projections
2
4
3
B
D
C
H
F
G
8
6
7
Latch Hole
Press the module straight down onto the carrier, seating it fully.
Turn the latch to the locked position to secure the module to the top of the carrier.
