7-14 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
7

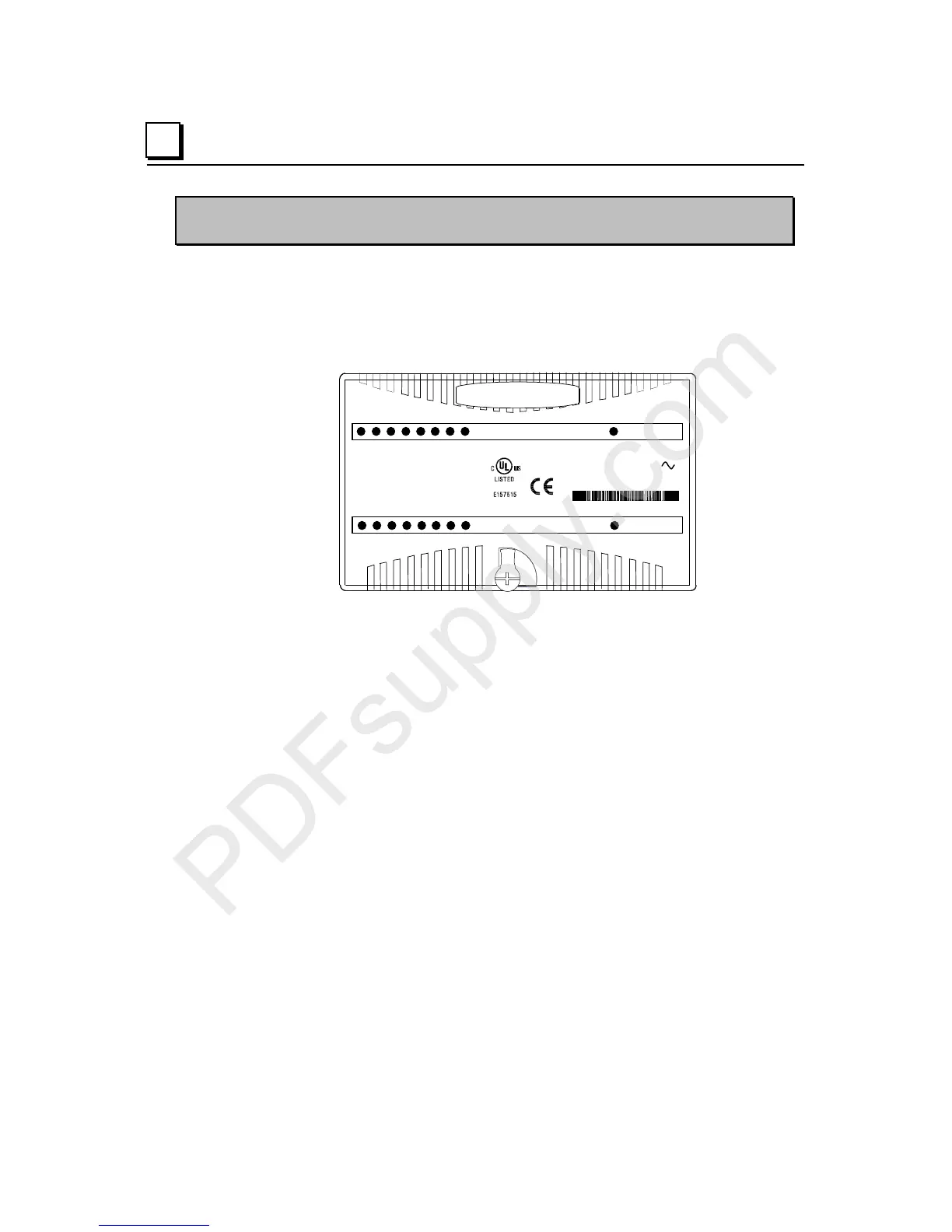

IC200MDL240
Input Module, 120VAC 16 Points
Discrete input module
IC200MDL240 provides two groups of 8 discrete inputs each.
Inputs are positive logic or sourcing-type inputs; they receive current from AC input
devices and return the current on the common. Input devices are connected between
the input terminals and common terminals.
1234567 831
60C
ExnV T4Demko No
OK
IC200MDL240
INPUT 120VAC
GRP 16PT
1 2 3 456 78
I
6M89
OK
910 11 1213141516
I
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4 Ambient 60C
CLASS I ZONE 2 GROUP IIC TA4
CLASS I ZONE 2 Ex nA IIC T4 OC
≤
Ta
≤
60C
Ex nV T4 Demko No
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU. The module
provides16 bits of discrete input data.
LED Indicators
Individual green LEDs indicate the on/off state of each input point.
The green OK LED is on when backplane power is present to the module.
