GE VersaMax User Manual

GFK-1504K Chapter 7 Discrete Input Modules 7-21
7

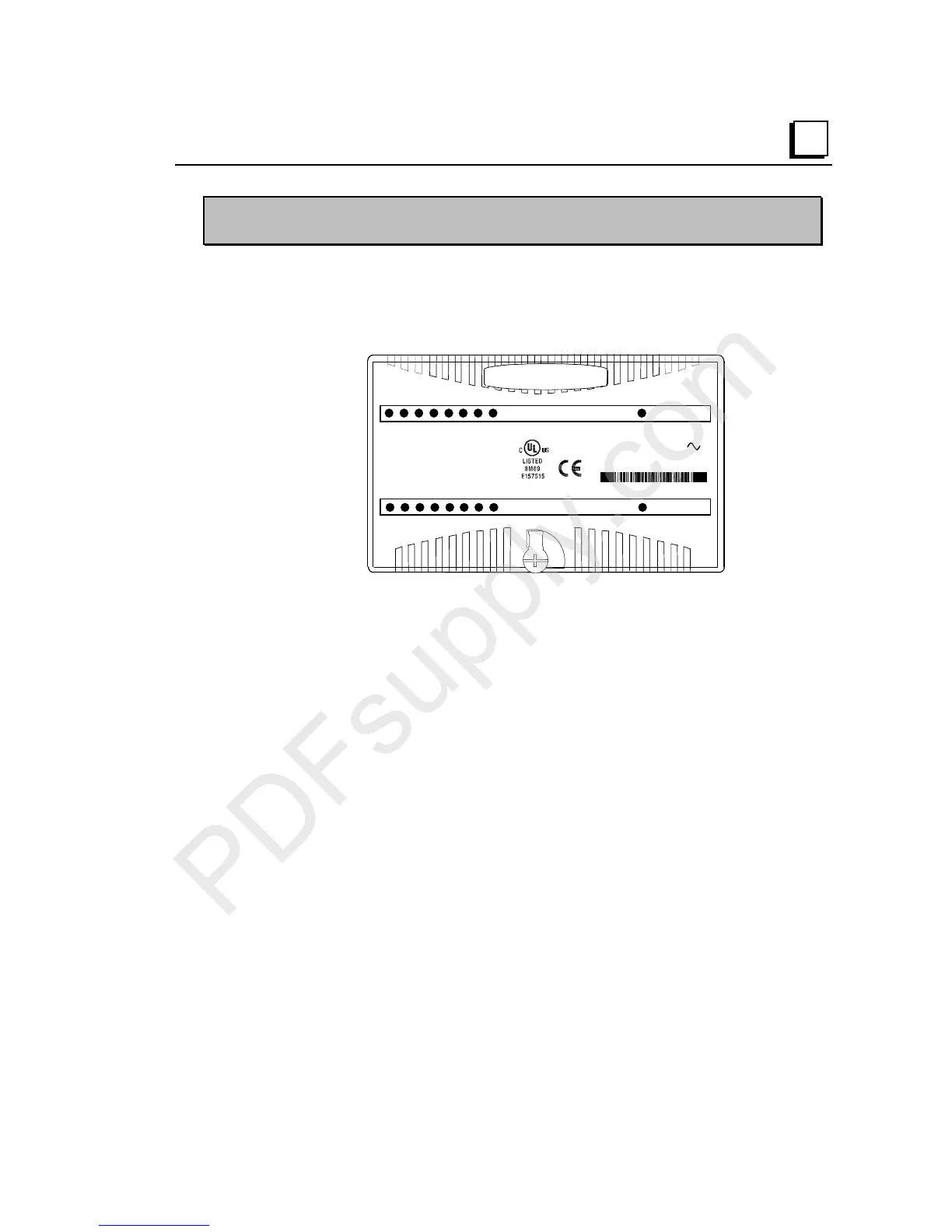

IC200MDL243
Input Module, 120VAC Isolated 16 Points
Discrete input module IC200MDL243 provides 16 isolated input points. Inputs are
positive logic or sourcing-type inputs; they receive current from AC input devices
and return the current on the common. Each input has its own return.
1234567 831
OK
IC200MDL243
INPUT 120VAC
ISO 16PT
1234 5678
I
OK
9 10 111213 141516
I
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Temp Code T4A Ambient 60C
CLASS I ZONE 2 GROUP IIC TA4
CLASS I ZONE 2 Ex nA IIC T4 OC
≤
Ta
≤
60C
Ex nV T4 Demko No
Power for module operation comes from the backplane.
Intelligent processing for the module is performed by the CPU or NIU. The module
provides 16 bits of discrete input data.
LED Indicators
Individual green LEDs indicate the on/off state of each input point.
The green OK LED is on when backplane power is present to the module.
