8-42 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8

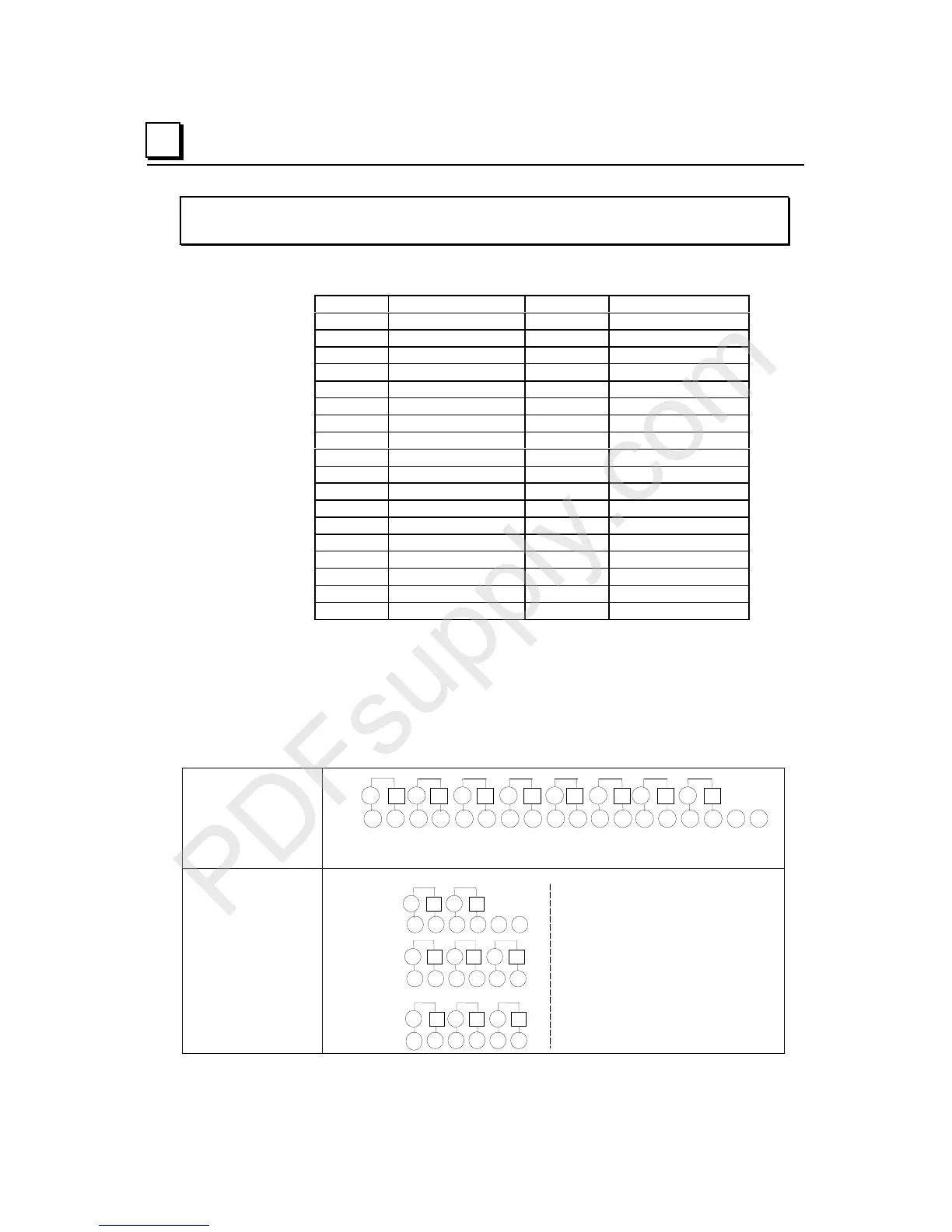

IC200MDL930
Output Module, Relay 2.0 Amp Isolated Form A 8 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Output 1-1 B1 No connection
A2 Output 1-2 B2 No connection
A3 Output 2-1 B3 No connection
A4 Output 2-2 B4 No connection
A5 Output 3-1 B5 No connection
A6 Output 3-2 B6 No connection
A7 Output 4-1 B7 No connection
A8 Output 4-2 B8 No connection
A9 Output 5-1 B9 No connection
A10 Output 5-2 B10 No connection
A11 Output 6-1 B11 No connection
A12 Output 6-2 B12 No connection
A13 Output 7-1 B13 No connection
A14 Output 7-2 B14 No connection
A15 Output 8-1 B15 No connection
A16 Output 8-2 B16 No connection
A17 No connection B17 No connection
A18 No connection B18 No connection
Outputs are individually isolated. If additional bussed terminals are needed, the B
terminals can be made available by using a shorting bar. The shorting bar has a
maximum current-carrying capacity of 2 Amps per point. See chapter 2 for
additional information about using the shorting bar.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8
v v v v v v v v
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
A
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
A
123456
13
14 15 16 17 18
789 111210
Q1 Q2 Q3
Q4 Q5 Q6
Q7 Q8
v v v
v v v
v v
