GE VersaMax User Manual

GFK-1504K Chapter 2 Installation Instructions 2-13
2
Jumper Installation on an AC Power Supply Module
AC power supply modules (IC200PRW101 and IC200PWR102) can be used with either
120VAC or 240VAC nominal input power. For 120VAC nominal operation, install a
jumper as marked on the power supply. Use insulated AWG #14 (avg. 2.1mm
2
cross
section) to AWG #22 (avg. 0.36mm
2
cross section) wire.

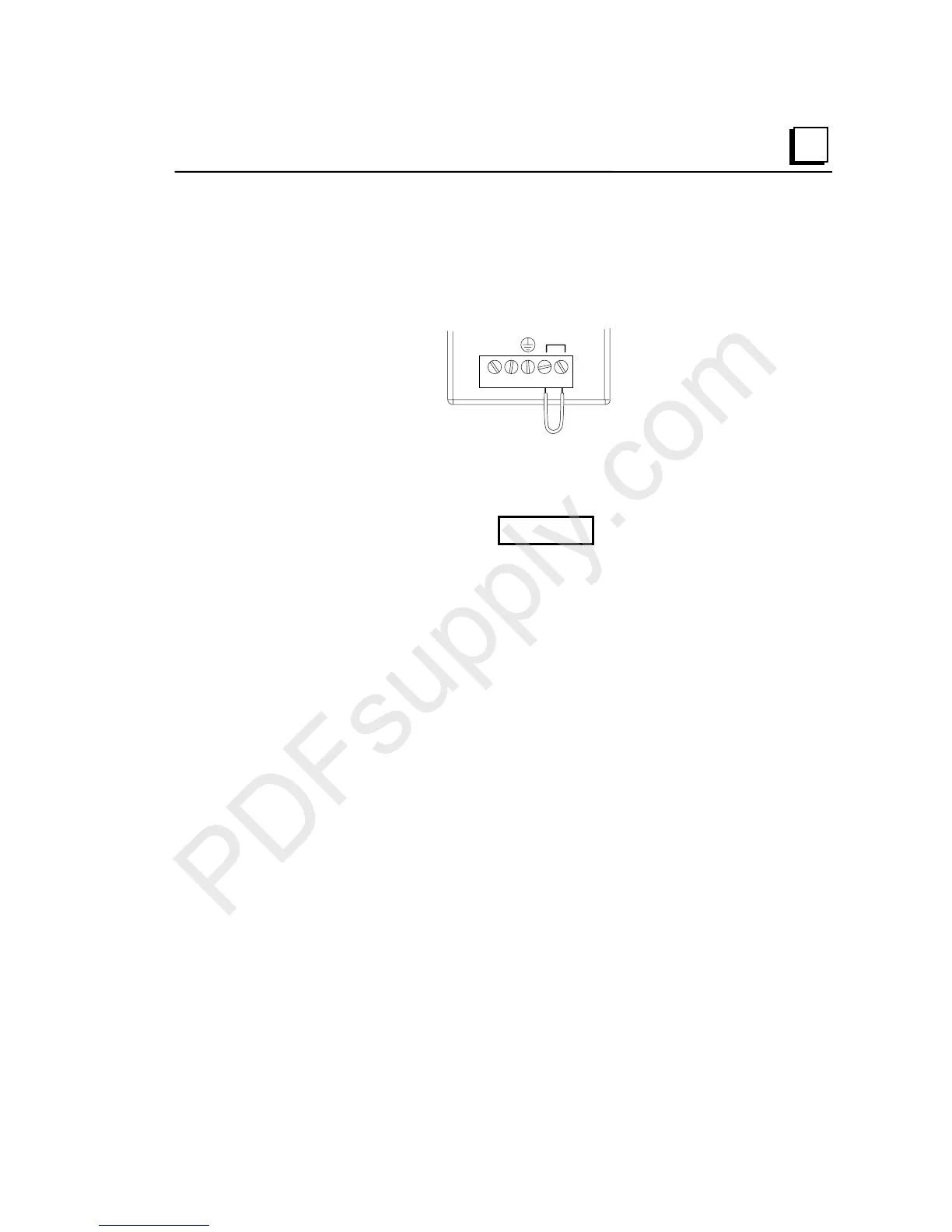

JUMPER
FOR 120V
The power supply operates without a jumper installed; however, the hold-up specification
is not met. If a jumper is not installed for 120VAC operation, the power supply will not
cause hazardous conditions.
Warnings
DO NOT USE A JUMPER FOR 240VAC OPERATION. If a jumper is used on the
input connector for 240VAC nominal operation, the power supply will be damaged
and may cause hazardous conditions.
Do not touch the exposed portions of the jumper wire with power applied to the
system. Hazardous voltages are present that could cause personal injury.
