8-46 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
8

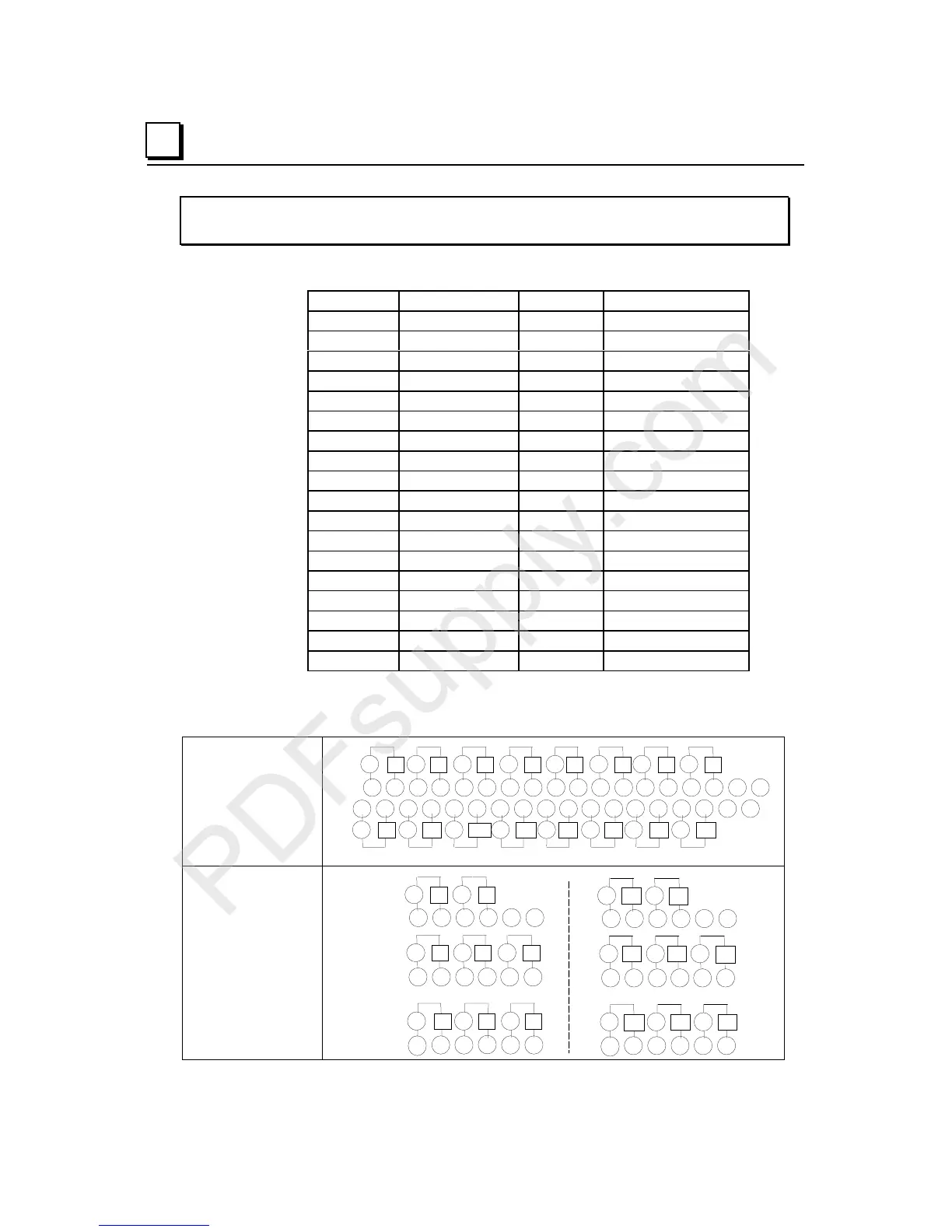

IC200MDL940
Output Module, Relay 2.0 Amp, Isolated Form A 16 Points
Field Wiring
Terminal Connection Terminal Connection
A1 Output 1-1 B1 Output 9-1
A2 Output 1-2 B2 Output 9-2
A3 Output 2-1 B3 Output 10-1
A4 Output 2-2 B4 Output 10-2
A5 Output 3-1 B5 Output 11-1
A6 Output 3-2 B6 Output 11-2
A7 Output 4-1 B7 Output 12-1
A8 Output 4-2 B8 Output 12-2
A9 Output 5-1 B9 Output 13-1
A10 Output 5-2 B10 Output 13-2
A11 Output 6-1 B11 Output 14-1
A12 Output 6-2 B12 Output 14-2
A13 Output 7-1 B13 Output 15-1
A14 Output 7-2 B14 Output 15-2
A15 Output 8-1 B15 Output 16-1
A16 Output 8-2 B16 Output 16-2
A17 No connection B17 No connection
A18 No connection B18 No connection
Outputs are individually isolated. When wiring outputs to inductive loads, use of
external suppression circuits is recommended. See chapter 2, "Installing Wiring for
I/O Devices-Wiring to Inductive Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8v v v v v v v v
123456789 1112131415161718
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
Q9 Q10
Q11
Q12 Q13 Q14 Q15 Q16v v v v v v v v
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
A
123456
13
14 15 16 17 18
7 8 9 11 1210
Q1 Q2 Q3
Q4 Q5 Q6
Q7 Q8
v v v
v v v
v v
B
123456
13
14 15 16 17 18
789 111210
Q9 Q10 Q11
Q12 Q13 Q14
Q15 Q16
v v v
v v v
v v
