2-20 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K

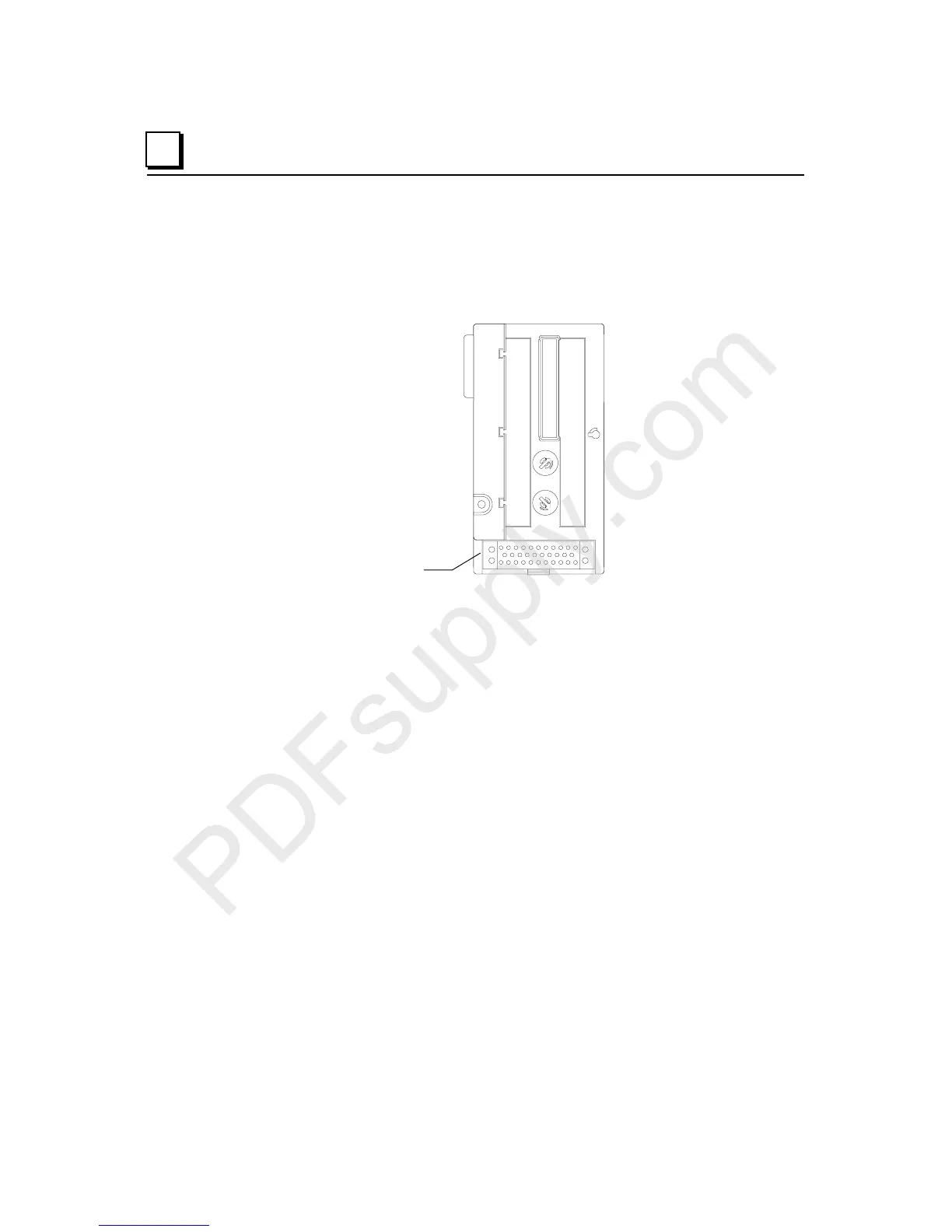

Wiring for a Connector-Style I/O Carrier (IC200CHS003)

For a Connector-Style I/O Carrier field connections are usually made to an Interposing I/O

Terminal unit and one or more Auxiliary I/O Terminals. However, it is also possible to

make field wiring connections directly to the Connector-Style I/O Carrier itself using

contacts crimped to the ends of the field wires.

Field Wiring

Connector

Prewired Cables for a Connector-Style I/O Carrier

Connection between a Connector-Style I/O Carrier and Interposing I/O Terminals is made

by cable. The following cables are available:

IC200CBL105 2 connectors, 0.5m, no shield

IC200CBL110 2 connectors, 1.0m, no shield

IC200CBL120 2 connectors, 2.0m, no shield

IC200CBL230 1 connector, 3.0m, no shield
