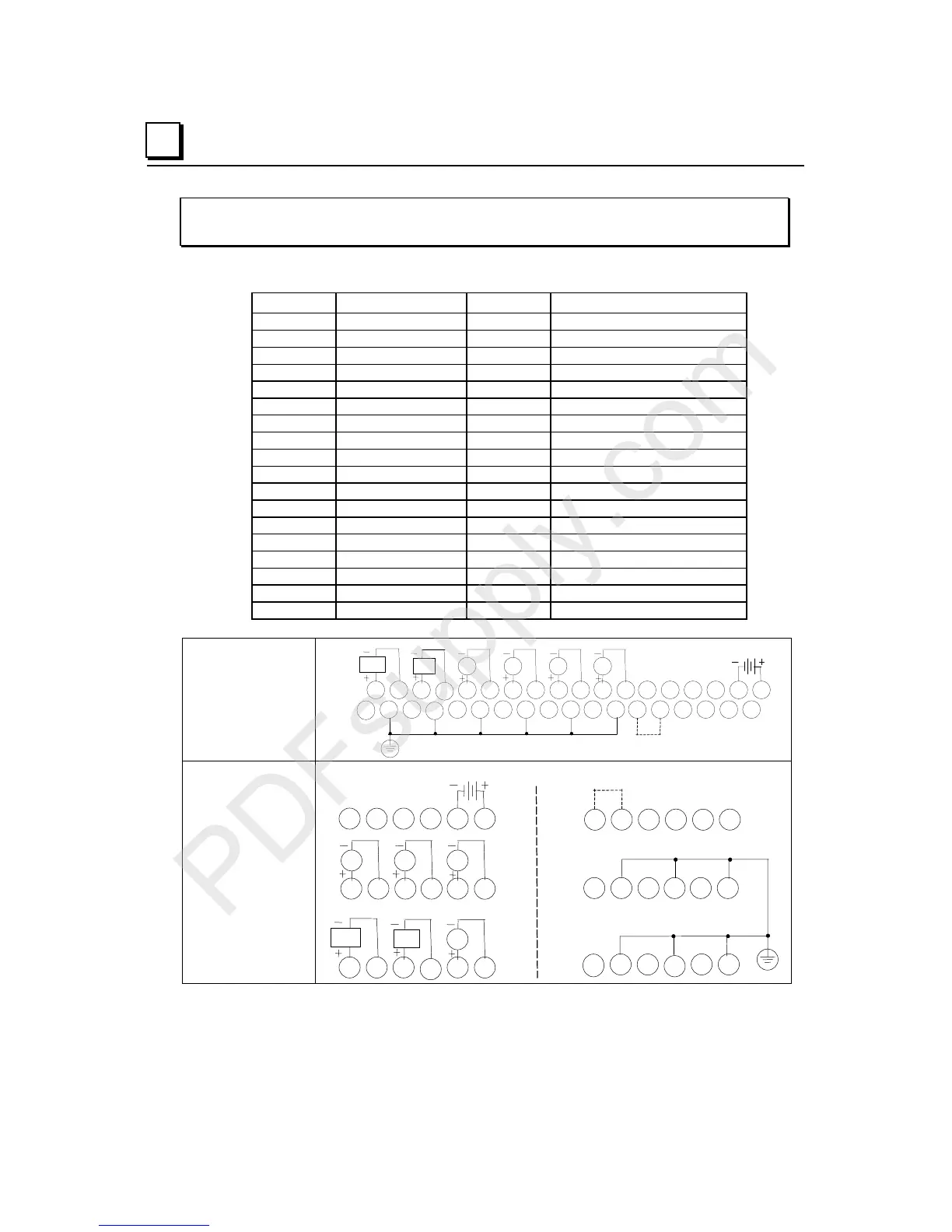

12-18 VersaMax® Modules, Power Supplies, and Carriers User's Manual – March 2003 GFK-1504K
12
IC200ALG432
Analog Mixed Module, 12 Bit +/-10VDC Input 4 Channels and Output 2 Channels
Field Wiring
Terminal Connection Terminal Connection
A1 V OUT 1 B1 No connection
A2 V OUT Return B2 Shield Termination Point
A3 V OUT 2 B3 No connection
A4 V OUT Return B4 Shield Termination Point
A5 V IN 1 B5 No connection
A6 V IN Return B6 Shield Termination Point
A7 V IN 2 B7 No connection
A8 V IN Return B8 Shield Termination Point
A9 V IN 3 B9 No connection
A10 V IN Return B10 Shield Termination Point
A11 V IN 4 B11 No connection
A12 V IN Return B12 Shield Termination Point
A13 No connection B13 JMP1A
A14 No connection B14 JMP1B
A15 No connection B15 No connection
A16 No connection B16 No connection
A17 Field Return B17 No connection
A18 Field Power B18 No connection
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
JMP1
AQ1
AQ2
Shield Connections
AI1 AI2 AI3 AI4
1 2 3 4 5 6 7 8 9 111213141516 1718
123456789 1112
13
14 15 16 17 1810
10
B
A
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
Shield Connections
AQ1
AQ2
AI1
123456
123456
JMP1
13
14 15 16 17 18
AI2 AI3 AI4
7 8 9 11 1210
B
A
13 14 15 16 17 18
789 111210
