IC200MDL750
Output Module, 12/24VDC Positive Logic 0.5 Amp, 32 Points

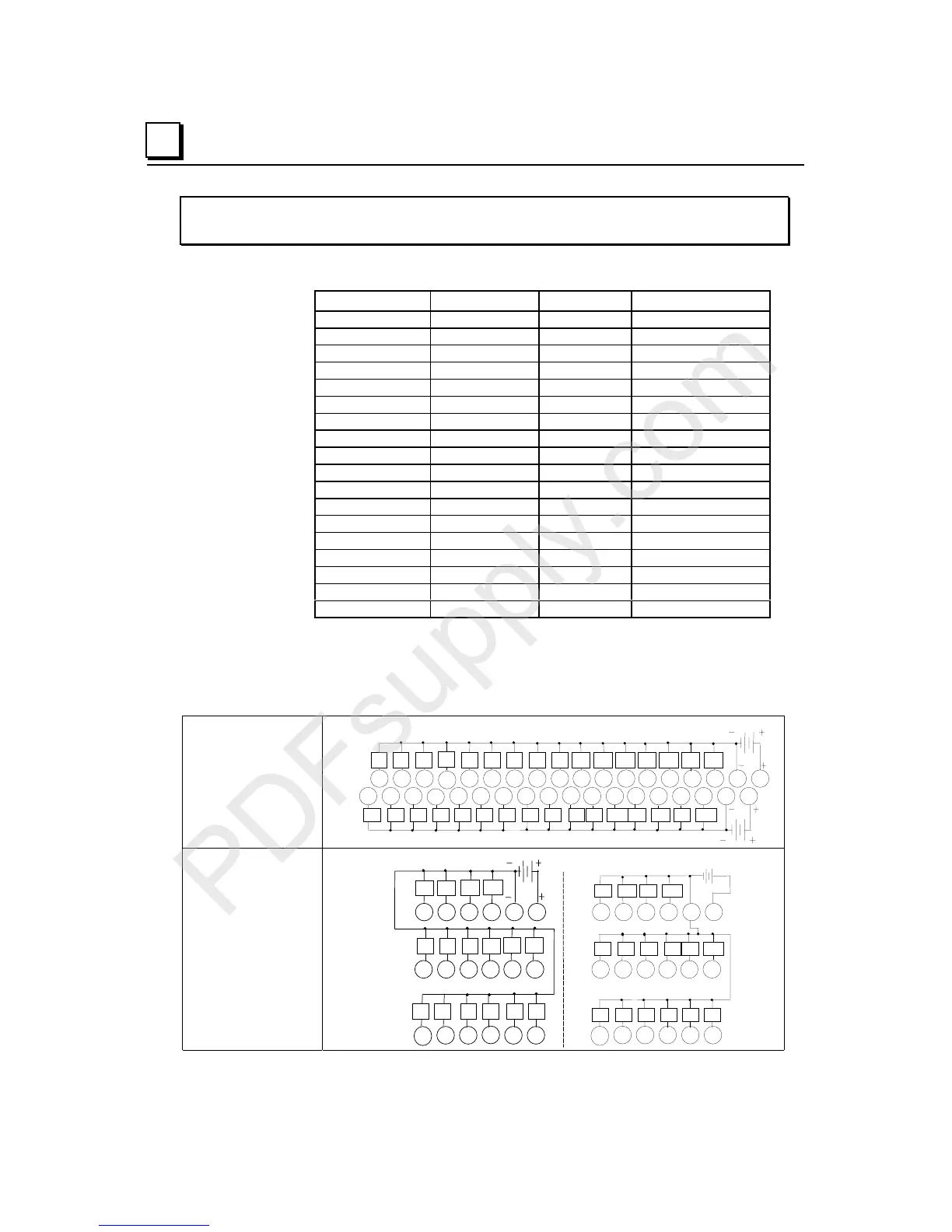

Field Wiring
Terminal Connection Terminal Connection
A1 Output 1 B1 Output 17
A2 Output 2 B2 Output 18
A3 Output 3 B3 Output 19
A4 Output 4 B4 Output 20
A5 Output 5 B5 Output 21
A6 Output 6 B6 Output 22
A7 Output 7 B7 Output 23
A8 Output 8 B8 Output 24
A9 Output 9 B9 Output 25
A10 Output 10 B10 Output 26
A11 Output 11 B11 Output 27
A12 Output 12 B12 Output 28
A13 Output 13 B13 Output 29
A14 Output 14 B14 Output 30
A15 Output 15 B15 Output 31
A16 Output 16 B16 Output 32
A17 DC - B17 DC -
A18 DC + B18 DC +
The 32 outputs form two groups, each with a DC+ and a DC- terminal.
When wiring outputs to inductive loads, use of external suppression circuits is
recommended. See chapter 2, "Installing Wiring for I/O Devices-Wiring to Inductive
Loads" for more information.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
Q1
Q2 Q3
Q4
Q5 Q6 Q7 Q8
Q9 Q10 Q11 Q12 Q13 Q14 Q15 Q16
Q28 Q29 Q30 Q32Q17 Q18 Q19 Q20 Q21 Q22 Q23 Q24 Q25 Q26 Q27 Q31
123456789 1112131415161718
1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 1810
10
B
A
Wiring Connections
for Carriers with Three
Rows of Terminals
IC200CHS001, 022, 025
IC200CHS011
123456
13
14 15 16
17
18
789 111210
B
+
-
Q17 Q18 Q19 Q20 Q21 Q22
Q28Q23 Q24 Q25 Q26 Q27
Q29 Q30 Q32Q31
A
123456
13
14 15 16 17 18
7 8 9 11 1210
Q1 Q3
Q7
Q15
Q5
Q9
Q11
Q13
Q2 Q4
Q8
Q16
Q6
Q10
Q12
Q14
