IC200CHS006
Communications Carrier
The Communications Carrier (IC200CHS006) provides mounting and backplane
communications and field wiring for a fieldbus communications module.

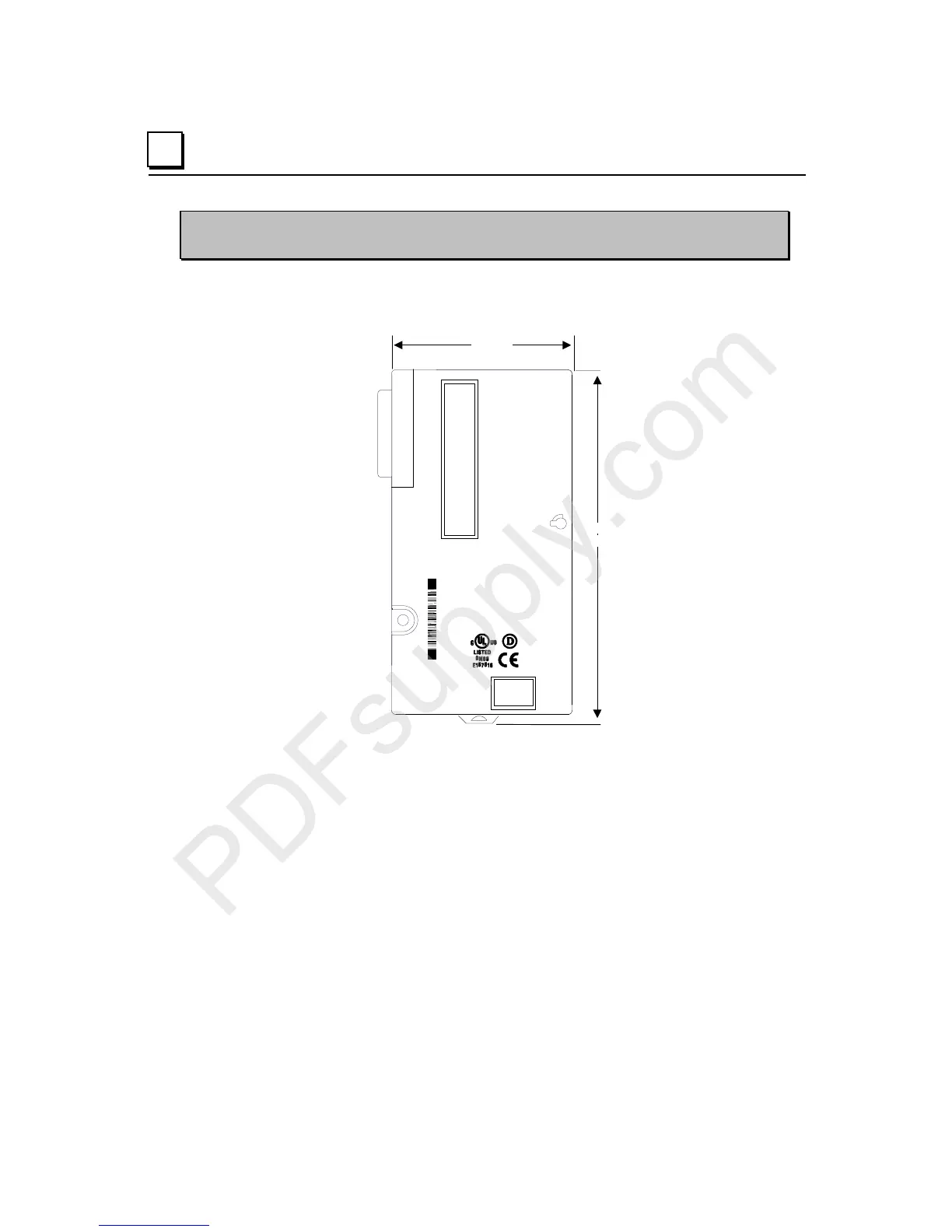

66.8mm
(2.63in)
133.4mm
(5.25in)
IND CONT EQ FOR HAZ LOC
CLASS I DIV 2 GROUPS ABCD
Ambient 60C
CLASS 1 ZONE 2 GROUP IIC
Ex nA IIC 0C <To<60C
Ex nV II
Demko No. 98Y.125014
MADE IN USA
IC200CHS006
COMMUNICATIONS
CARRIER
Din Rail Mounting
The carrier snaps easily onto a 7.5mm X 35mm DIN rail. The DIN rail must be electrically
grounded to provide EMC protection. The rail must have a conductive (unpainted)
corrosion-resistant finish.
For applications requiring maximum resistance to mechanical vibration and shock, the
carrier must also be panel-mounted. See chapter 2 for installation instructions.
Features
Compatible with all VersaMax fieldbus communications modules.
Fast DIN-rail mounting.
Can be located in any “slot”.
Module latch hole for securely fastening the module to the carrier.
