IC200ALG331
Analog Output Module, 16 Bit Voltage/Current, 1500VAC Isolation, 4 Channels

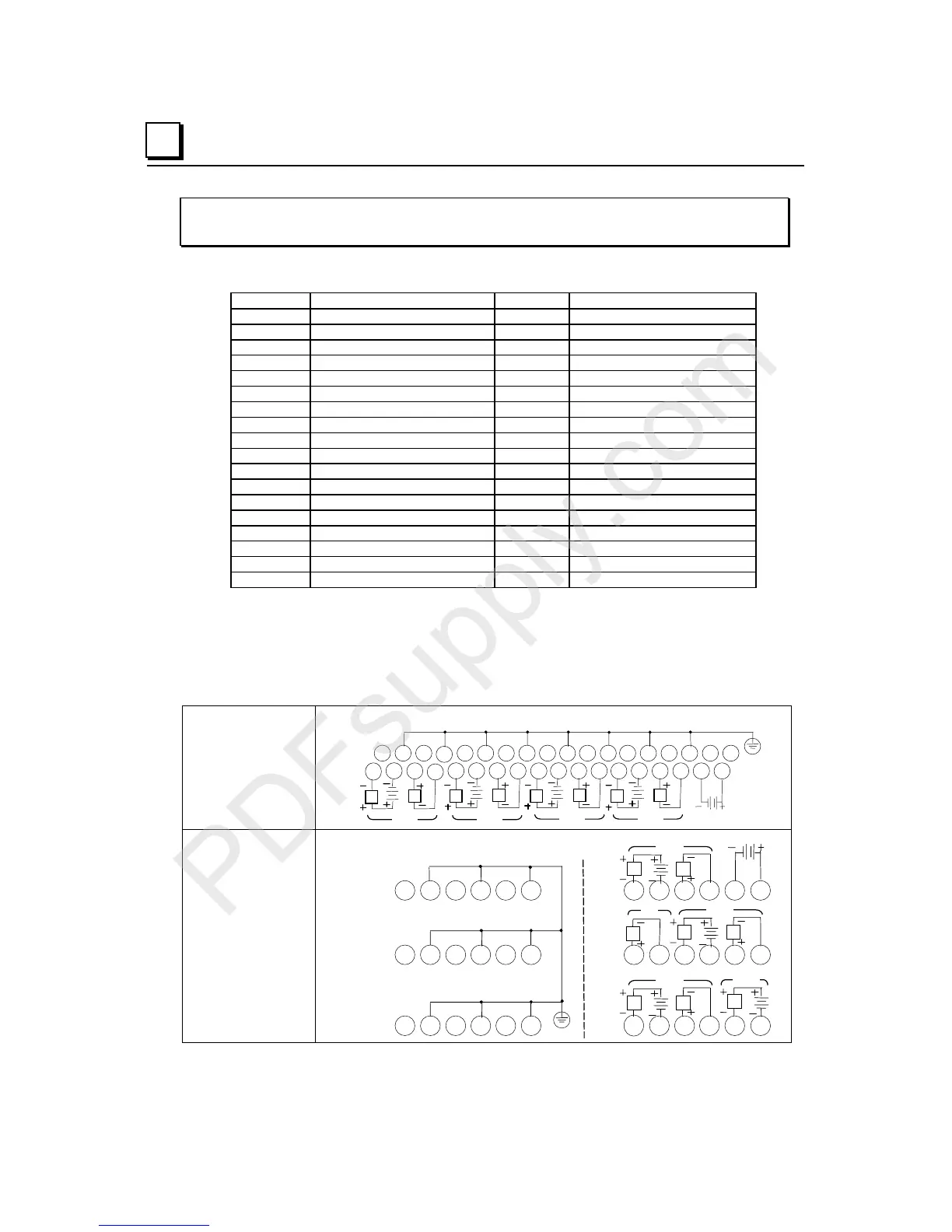

Field Wiring
Terminal Connection Terminal Connection
A1 No connection B1 I1+
A2 Shield Termination Point B2 I1-
A3 No connection B3 V1+
A4 Shield Termination Point B4 V1-
A5 No connection B5 I2+
A6 Shield Termination Point B6 I2-
A7 No connection B7 V2+
A8 Shield Termination Point B8 V2-
A9 No connection B9 I3+
A10 Shield Termination Point B10 I3-
A11 No connection B11 V3+
A12 Shield Termination Point B12 V3-
A13 No connection B13 I4+
A14 Shield Termination Point B14 I4-
A15 No connection B15 V4+
A16 Shield Termination Point B16 V4-
A17 No connection B17 DC -
A18 No connection B18 DC+
A 24 volt power supply must be connected to B17 and B18 to operate the module. Voltage
outputs are powered from the module. For each channel, V+ is positive with respect to V-
when the channel’s output data is positive. Current outputs act as current regulators and
require a supply to power the load. The current loop can be connected as a current source
or current sink to the load. Loads are isolated if the loop supply is isolated. However, if the
module supply is also used as the loop supply, the loads are not isolated.
Wiring Connections
for Carriers with Two
Rows of Terminals
IC200CHS002, 005
IC200CHS012, 015
I4
V4
Shield Connections
I1
V1 I2
V2
I3
V3
123456789 1112131415161718
123456789 111213141516171810
10
B
A
AQ1 AQ2
AQ3 AQ4
Wiring Connections
for Carriers with
Three Rows of
Terminals
IC200CHS001, 022, 025
IC200CHS011
Shield Connections
I4 V4
AQ4
123456
789 111210
A
13 14 15 16 17 18
123456
13 14 15 16 17 18
B
7 8 9 11 1210
I3
V3
AQ3
I1 V1
AQ1
I2
V2
AQ2
AQ2
